29
N62 Engine
Bi-VANOS (Variable Camshaft Adjustment)
The N62 features compact infinitely variable vane-type VANOS for the intake and exhaust
camshafts. The VANOS unit is easy to remove and install. The VANOS unit is designed as
an integral component of the chain drive and is secured to the respective camshaft with a
central bolt. The camshaft adjustment rate is 60º (as compared with the crankshaft).
The VANOS unit gear teeth are visibly different to match the new toothed chain. The
VANOS unit for the cylinders 1-4 exhaust shaft has mounting provisions for the vacuum
pump drive. A spring plate is fitted between the VANOS unit and the vacuum pump drive
to reduce wear (3). The
VVAANNOOSS uunniittss aarree llaabbeelleedd ““IInn//OOuutt””
for intake and exhaust installa-
tion positions.
The VANOS units are supplied with oil via ports in the camshafts. The oil ports are located
on the left and right of the thrust bearing. Depending on the individual VANOS adjustment
direction, the VANOS is supplied with oil via either the rear oil ports (1 & 2) or the front oil
ports (3 & 4). The oil moves through the camshaft to the VANOS units.

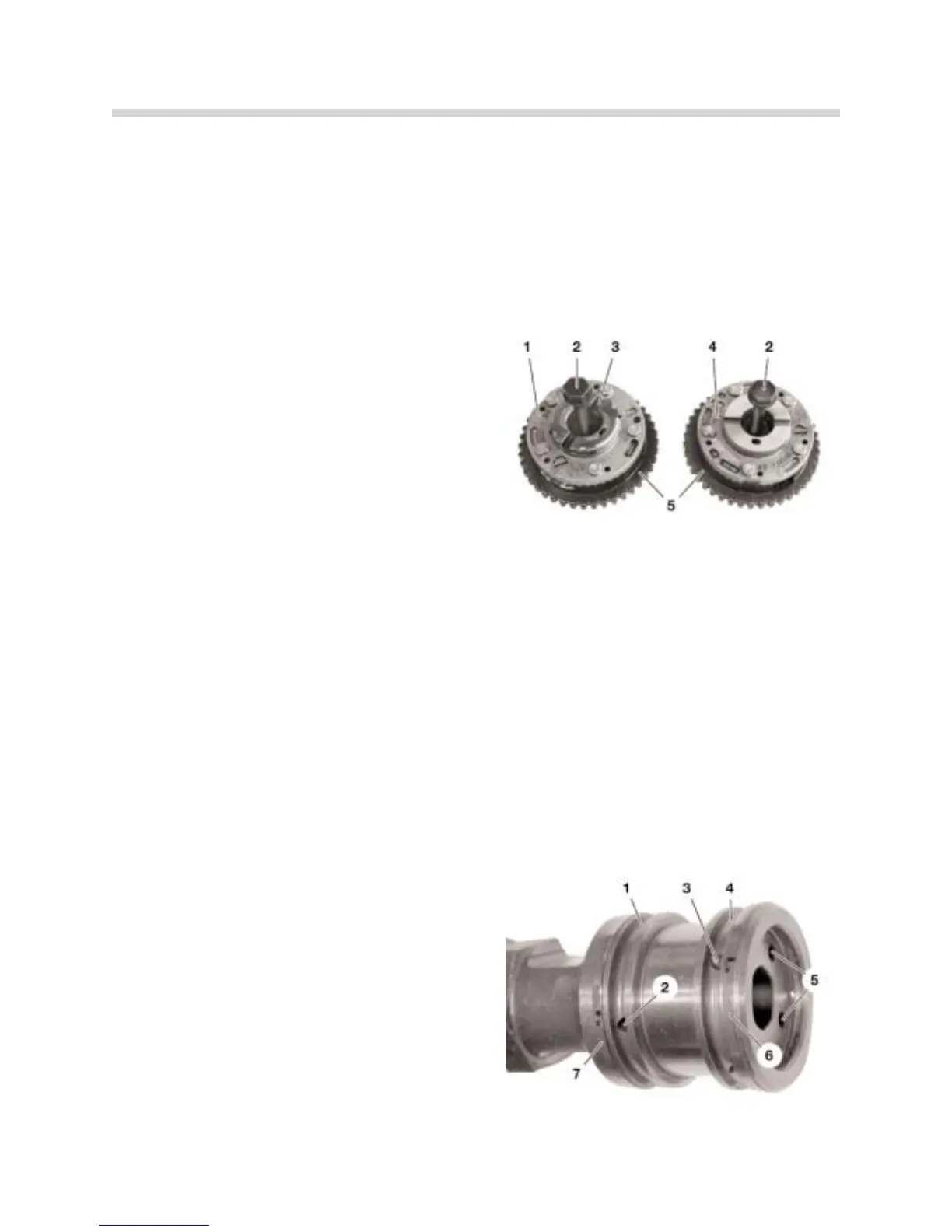

VANOS Units
1. VANOS Unit Exhaust Side
2. VANOS Central Bolt
3. Spring Plate
4. VANOS Unit Intake Side
5. Toothed Chain Gear Teeth
VANOS Oil Ports
1&2. Rear Oil Duct with Four Holes
3&4. Front Oil Duct with Four Holes
5. Front Oil Duct Outlets
6&7. Hook Sealing Washer.
43-02-39
