48
N62 Engine
Lubrication System
Crankcase with oil jets
The engine oil is supplied by the oil pump to the lubrication points in the engine block and
is pumped into the cylinder heads. The following components in the crankcase and cylin-
der head are supplied with engine oil:
CCrraannkkccaassee
• Crankshaft bearings
• Oil jets for piston cooling
• Oil jet for the drive chain (bank 5-8)
• Tensioning rail for drive chain (bank 1-4)
Oil Check Valves
Three oil check valves are inserted into each cylinder head from the outside. This prevents
the engine oil from draining out of the cylinder head and the VANOS units.
TThhee cchheecckk vvaallvveess aarree aacccceessssiibbllee ffrroomm tthhee oouutt--
ssiiddee,, tthheerreeffoorree;; ccyylliinnddeerr hheeaadd rreemmoovvaall iiss nnoott
nneecceessssaarryy wwhheenn cchhaannggiinngg tthhee cchheecckk vvaallvveess..
CCyylliinnddeerr hheeaadd
• Chain tensioner
• Guide rail on cylinder head
• Hydraulic valve adjustment elements (HVA)
• VANOS supply
• Camshaft bearings
• Overhead oil tubes for the valve gear
42-02-71

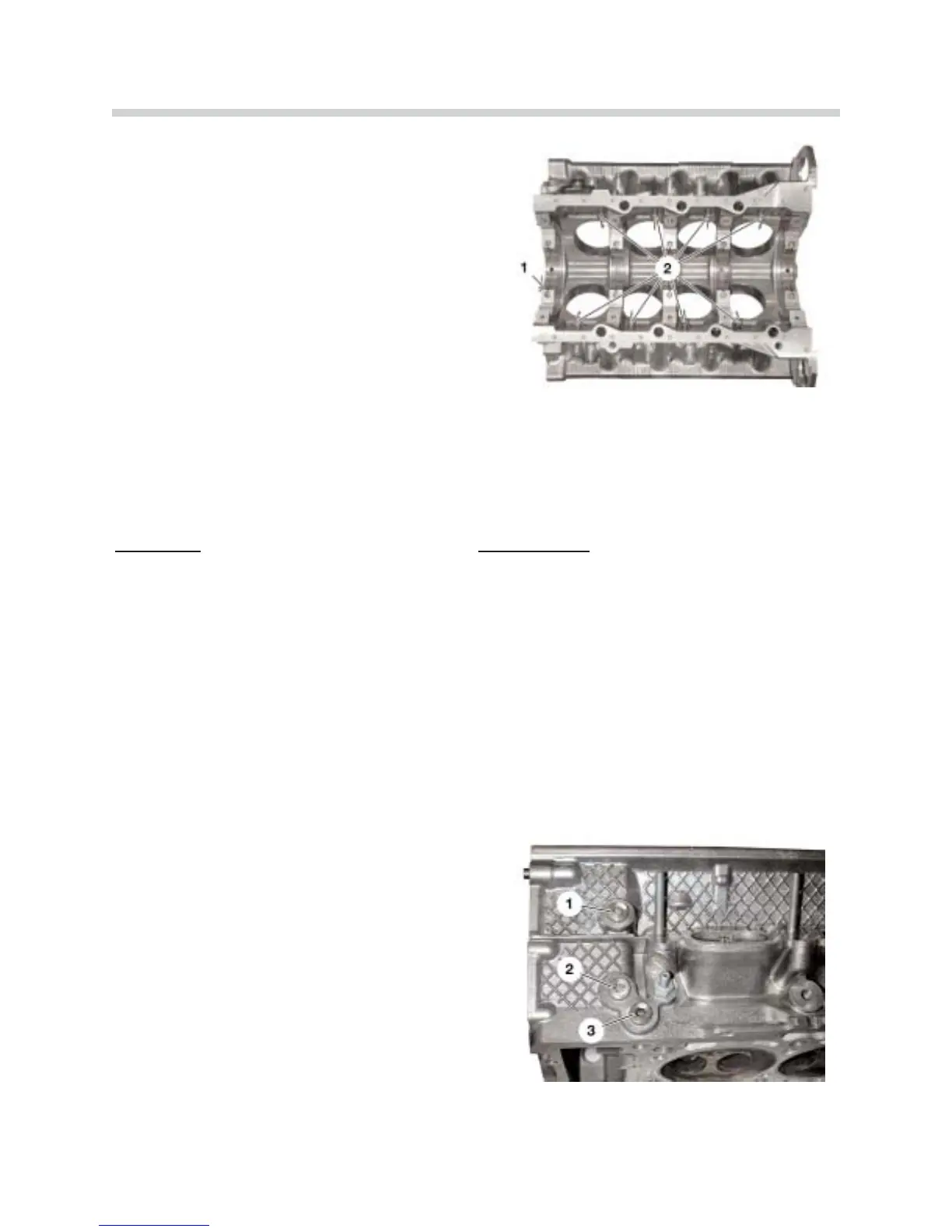

Crankcase with Oil Jets
1. Oil Jet for Drive Chain Cylinder Bank 5-8
2. Oil Jets for Piston Cooling
42-02-72
Oil Check Valves
1. Oil Check Valve for VANOS Intake
2. Oil Check Valve for VANOS Exhaust
3. Oil Check Valve for Cylinder Head Oil Supply
