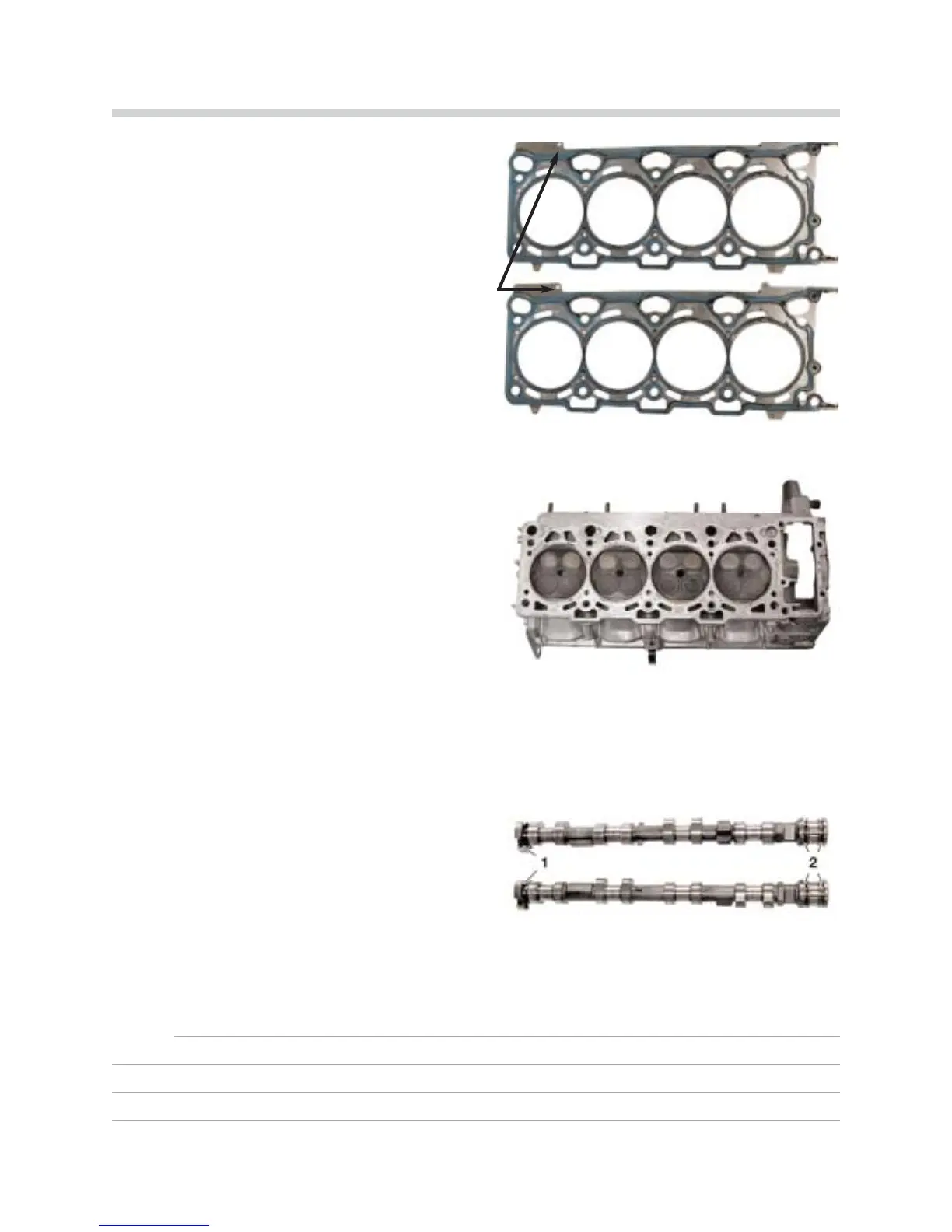

Cylinder Head Gaskets
The cylinder head gasket is a multi-layer steel
gasket with a rubber coating. This type of gas-
ket has previously been used on other engines.
The B44 head gasket has a 6 mm hole in a flap
on the outlet side of the cylinder head gasket.
The cylinder head bolts for the N62 engine are
M10x160 necked-down “stretch” bolts.
NNoottee:: TThheessee bboollttss sshhoouulldd aallwwaayyss bbee rreeppllaacceedd
wwhheenn rreeppaaiirrss aarree ppeerrffoorrmmeedd..
The lower part of the timing chain housing is
bolted to the cylinder head using two M8x45
bolts.
Camshafts
The camshafts are made from chilled cast iron
and are hollowed to reduce weight. The cam-
shafts are weighted with counterbalances for
equalizing imbalances in the valve gear.
1. Camshaft sensor wheels (sintered metal)
2. Thrust bearing area with oil ducts for the
VANOS units
NNootteess::
22
N62 Engine
42-02-23
42-02-22
42-02-24
