N62 Engine
Camshaft Sensors
The cam shaft sensors (Hall effect) are mounted through the cylinder head cover. There are
two sensors per cylinder head to monitor the intake and exhaust camshaft positions.
The sensors monitor the impulse wheels
attached to the ends of the camshafts.
Solenoid Valves
The VANOS solenoid valves are mounted through the upper timing case front cover. There
are two solenoids per cylinder head to control the oil flow to the camshaft ports for the
intake and exhaust VANOS units.
The 4/3 way proportional solenoid valve is acti-
vated by the ECM to direct oil flow. The sole-
noid valve is sealed to the front cover by a radi-
al seal and secured by a retaining plate.
NNootteess::
42-02-48

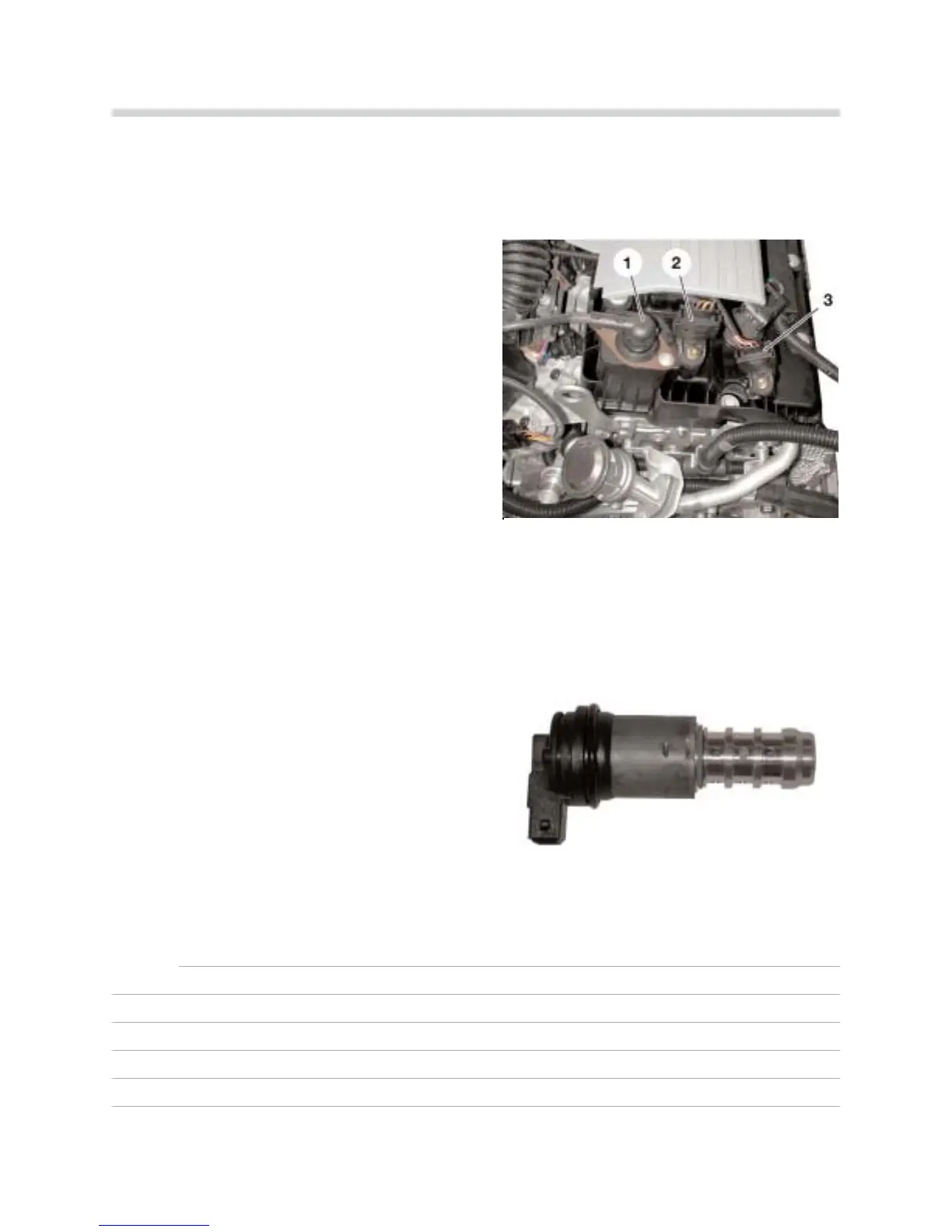

Camshaft Sensors
1. Valvetronic Position Sensor
2. Intake Camshaft Position Sensor
3. Exhaust Camshaft Position Sensor
42-02-42
