BOA 85700 - Connections of DVD + Choke; Signal-Amplification; Basic Operations; Play

Copyright © by BOA Warenhandels-GmbH ● Germany
Rev 0, Stand: 01 / 2007
32

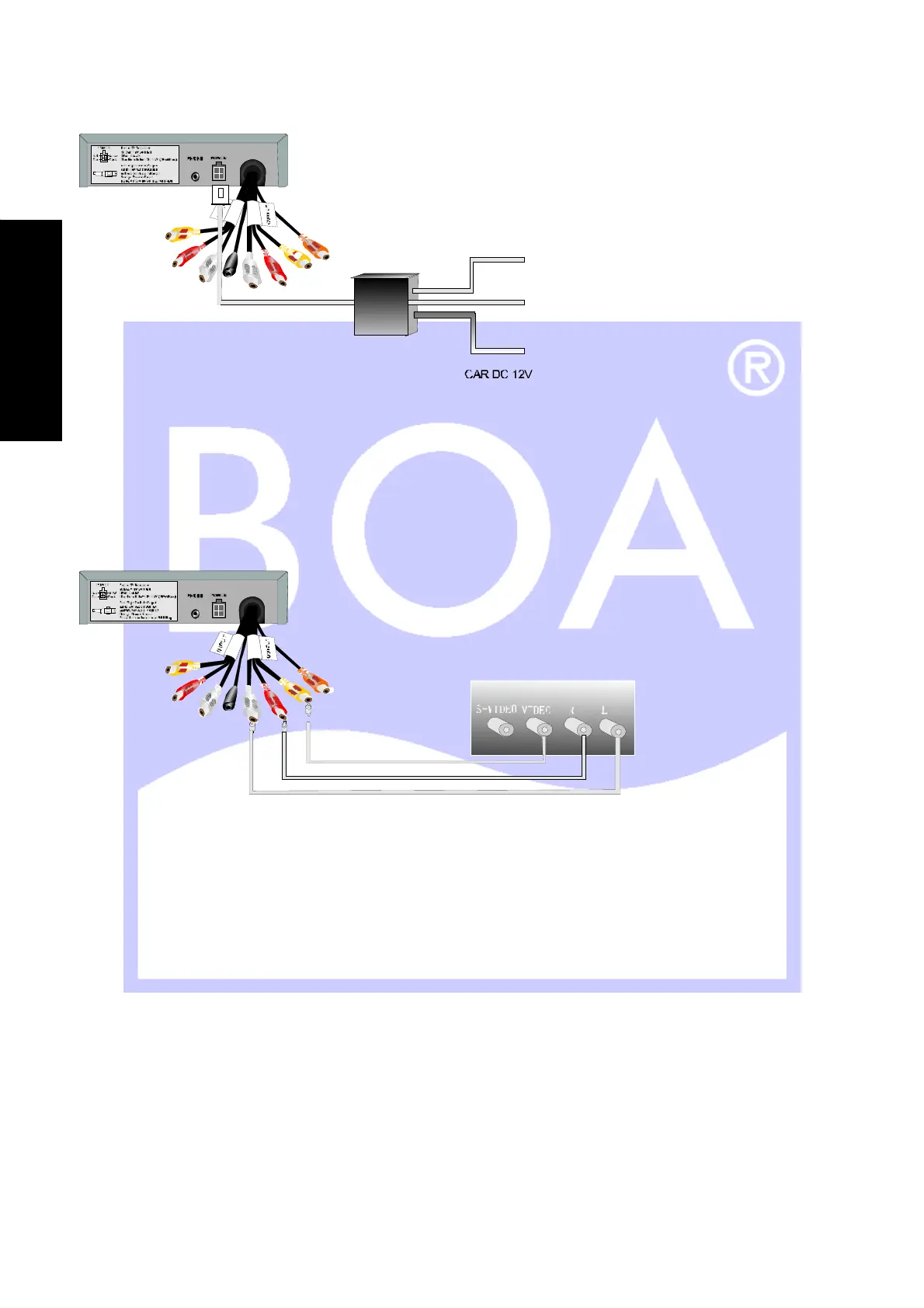

Connections of DVD + Choke
Signal-amplification
If you are powering more than two screens, you may need to add an amplifier to boost the output signals.
Connect the video and audio outputs to the amplifier, using RCA cables.
Basic operations
Play
1. Push [POWER] on the player.
2. Insert media discs in the DVD slot. Disc will start to play automatically.
Pause
While playing, push [►|| ] to pause the play.
Mute
(available to analog audio output signal only)
Push [Mute] to silence the sound of the player.
Press it again to return to normal state.
Enststördrossel
Choke
+ Rot
Red
- Schwarz
Black
+ 12 V Dauerplus
Memo ry
+ 12 V
- Masse
Ground
Red: + 12 V ACC
Yellow: +12 V constant
Black: Ground
Blue: Remote (500 mA max.)
Gelb /
Yellow
R ot / R ed
Weiß / White
Verstärker /
AMP
E
N
G
L
I
S
H
