BLT310 Product Manual
8

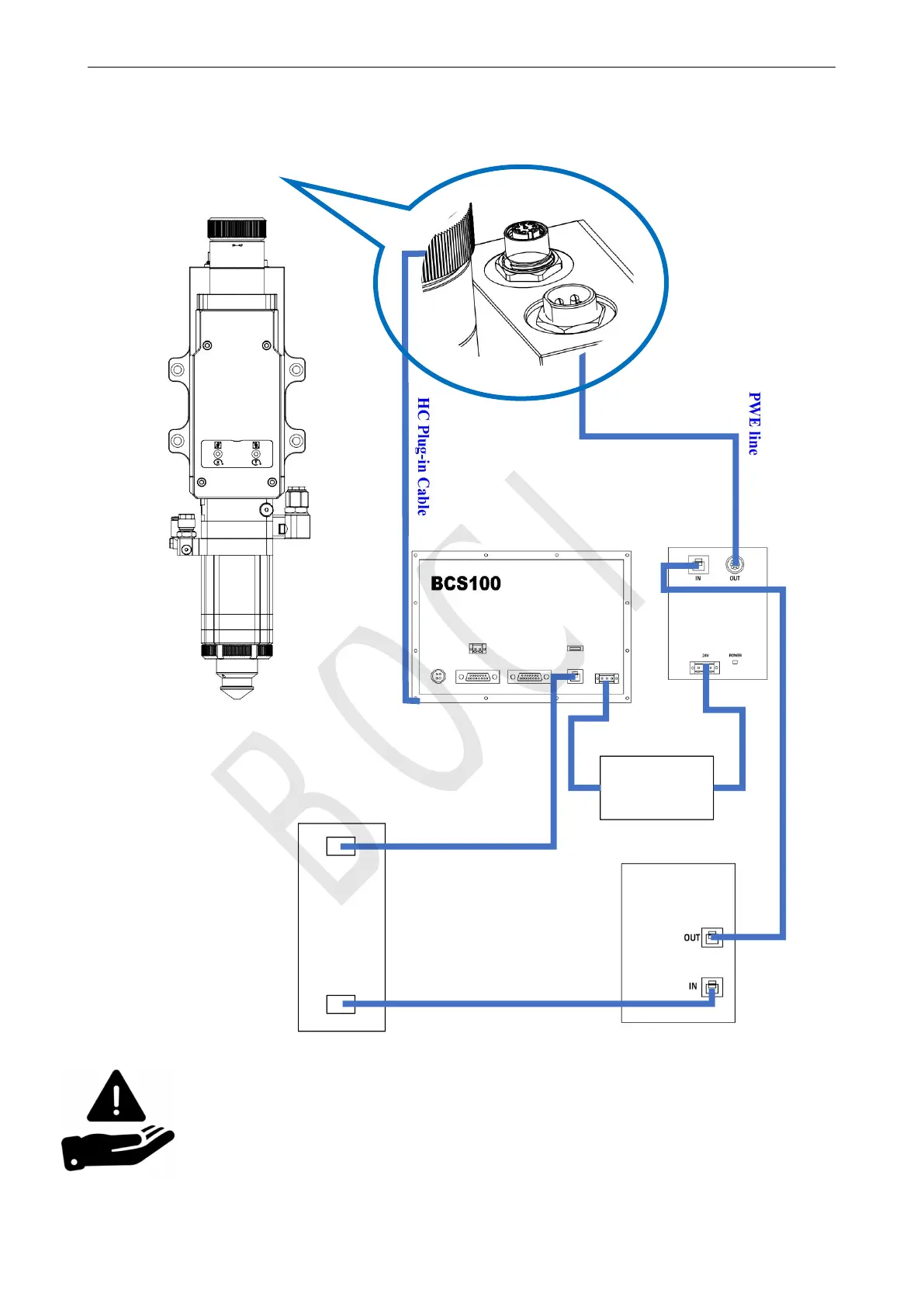

4.2 Non-bus systems
BCL4500A
Cypcut
IPC
master
station
Slaves
Station
Power
24VDC
 Notice:
 The above wiring operations should only be performed by trained and professional personnel.
 When the cutting head is connected to the BCL4500A, the BCL4500A must be powered off.
BLT310 Cutting Head Installation
Wiring Diagram
