5.2.8 Mount the cutting head on the backplane

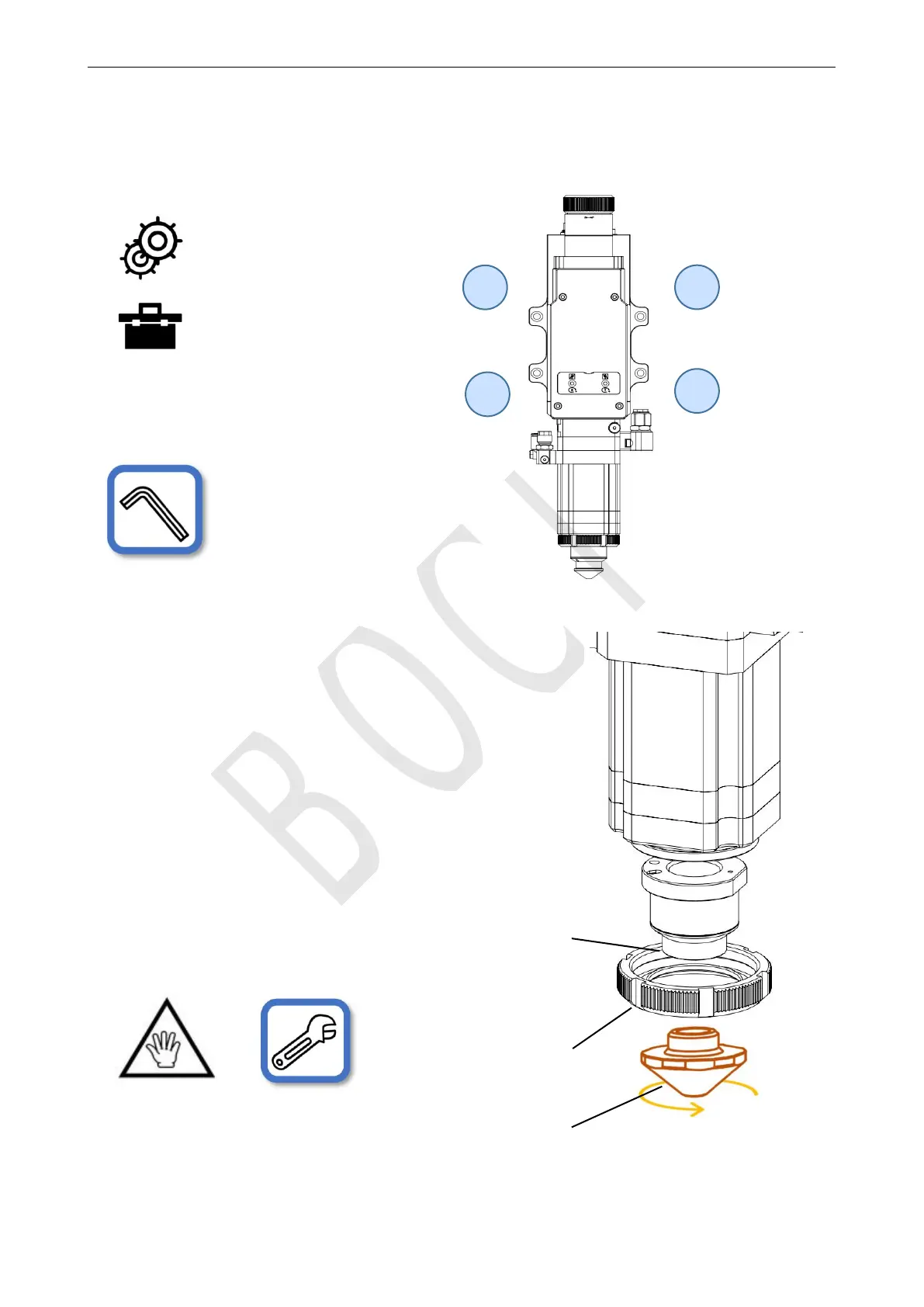

The cutting head can be installed on the Z-axis backplane of the machine tool through four screws A, B, C, and D.
When fixing the cutting head on the machine, it must be ensured that the cutting head is locked and there is no obvious
movement.
5.2.9 Installing the ceramic body and nozzle
Install the ceramic body and secure with the locking ring, then install the nozzle.
A
B
C
D
Ceramic
Body
Locking
Ring
Nozzle
Tighten the nozzle on the ceramic body
by hand,
Use a wrench to tighten the ceramic
locking ring.
