A.2 Replace the upper protective lens

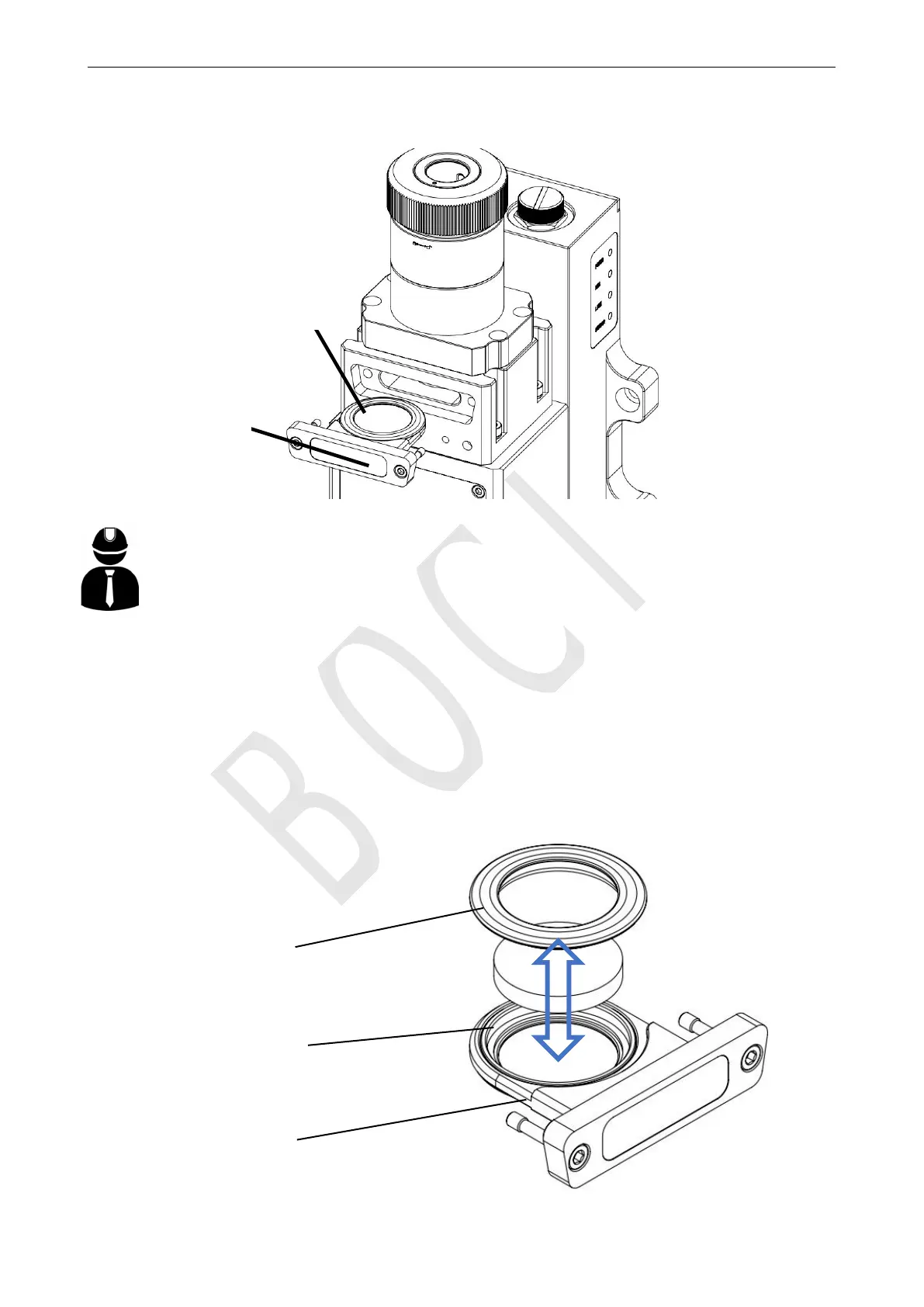

Upper Protective
Lens
Upper Protective
Lens Base
Pressing Ring
1. Loosen the screws;
2. Pull out the upper protective mirror drawer;
3. Use mask tape to prevent dust from entering;
4. Remove the pressure ring on the protective lens;
5. Replace the protective lens;
6. Insert the upper protective mirror drawer with lens into the cutting head.
1st Upper protective lens
base
1st Upper Protective Lens
Drawer Door
