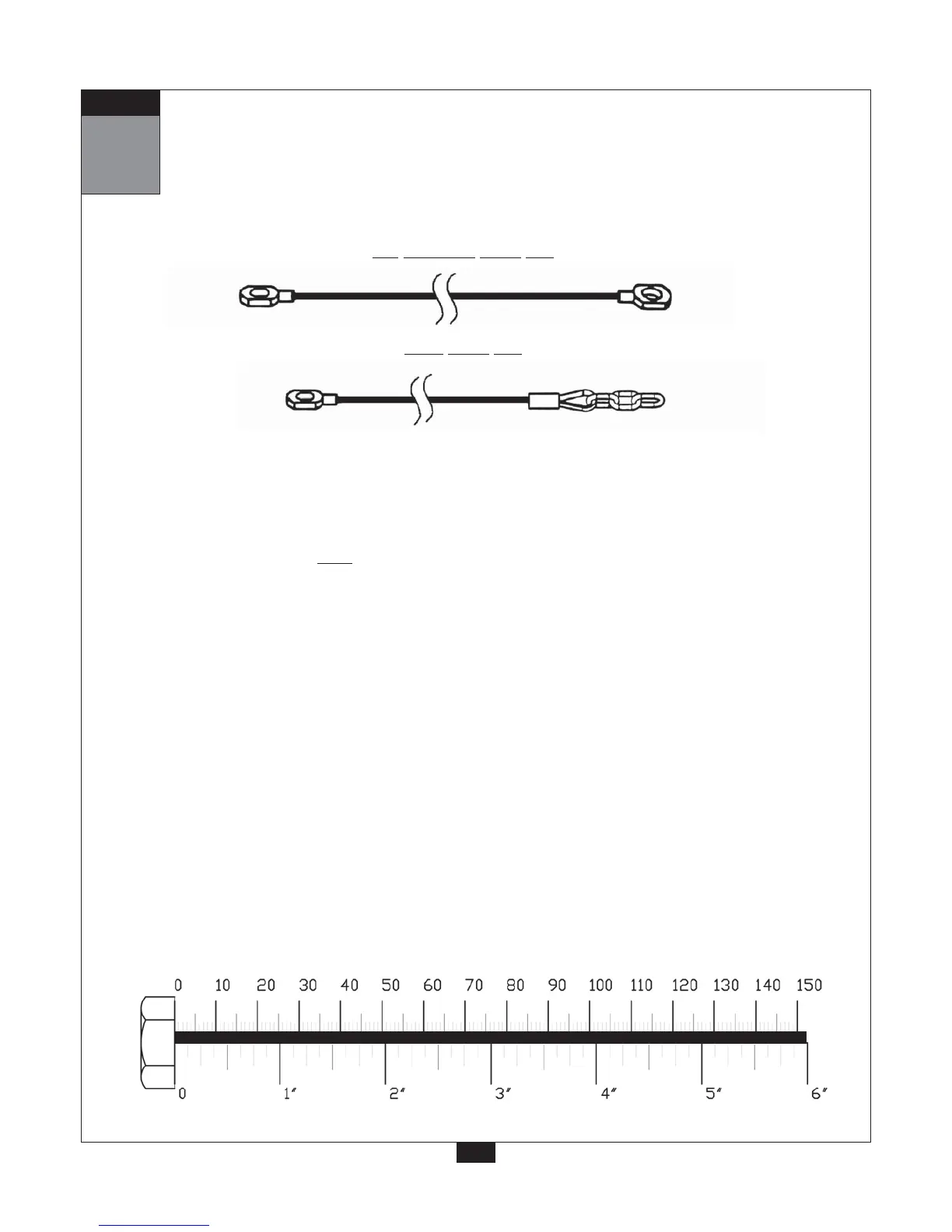

Leg Extension Cable (37)
Short Cable (40)
A. Attach either stamped eye end of Leg Extension Cable (37) to Leg Extension Arm (N) using:
One 84 (5/16”x 1 1/2” flat allen head)
Two 4 (3/4” steel bushing)
One 2 (1/2” steel sleeve)
One 92 (5/16” nylon lock nut)
B. Route Cable (37) under
Pulley (B1) and up toward Double Pulley Holder (52).
C. Route Cable (37) Inside the bottom portion of Double Pulley Holder (132) as shown, and
install Pulley (B2) using:
One 76 (3/8”x 1 3/4” hex head bolt)
Two 94 (3/8” washer)
One 91 (3/8” nylon lock nut)
D. Attach stamped eye end of Short Cable (40) to Cable (37) using a Snap Link (43). Attach
the chain end of Cable (40) to the Main Base Frame (A) using another Snap Link (43).
16
Be careful to assemble all components
in the sequence they are presented.
STEP
mm
Inch
NOTE:
All pulleys are the 4 1/4” diameter Pulleys (26), except where noted.
40
520mm
1’ 8 1/2”
Stamped Eye End
Chain End
2635mm 8’ 7”
Stamped Eye End
Stamped Eye End
To Next Page
