Body Solid GLPH1100 - Torsion Spring Installation

G L P H 1 1 0 0
T o r s i o n S p r i n g I n s t a l l a t i o n

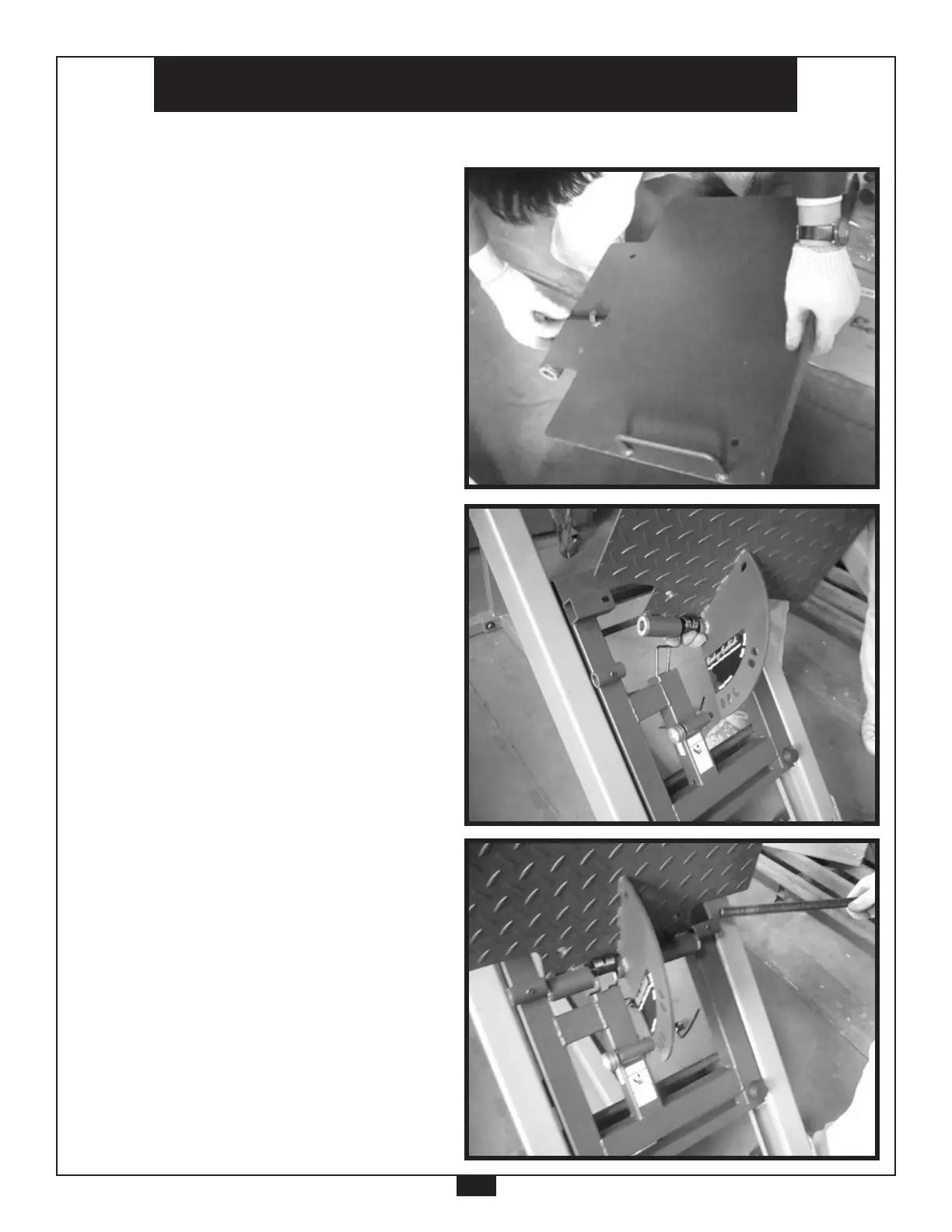

Insert the long side of Tor-
sion Springs (45) & (46) into
the rear hole of Adjustable
Plate (K).
•
Insert the short side of the
Torsion Springs (45) & (46)
into the square frame on
Carriage (H) as shown.
•
Insert Shaft (48) into the
rst section of the axis.
Lubrication may assist with
this procedure.
•
•
