T o r s i o n S p r i n g I n s t a l l a t i o n

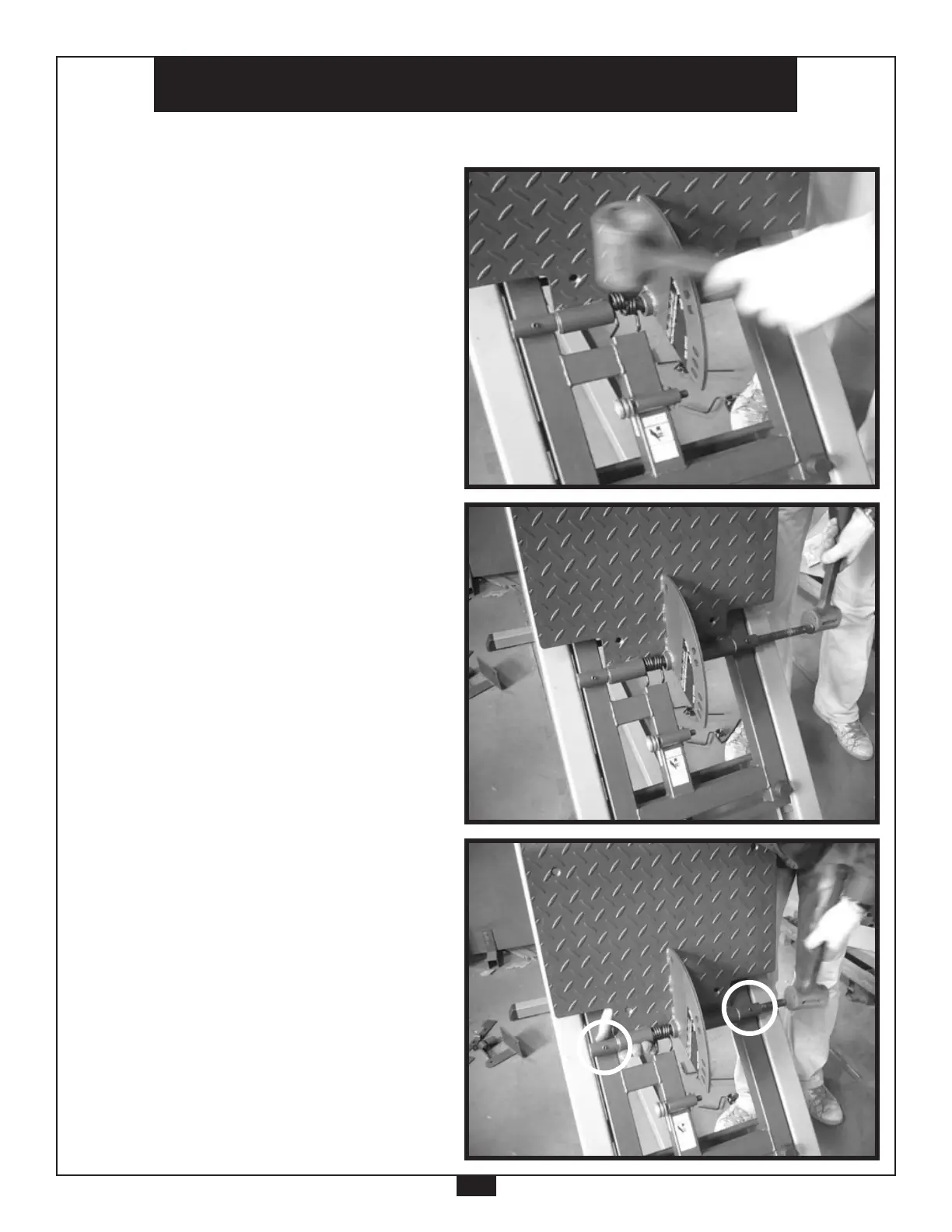

Once the shaft passes the
rst Torsion Spring, tap on
the second Torsion Spring to
bring it into alignment with
the axis of rotation.
•
Use a hammer to continue
inserting Shaft (48).
•
Make sure the remainder
of Carriage (H) is aligned
and continue to insert Shaft
(48).
Upon completion, tighten
the two Set Screws (13) to
secure Shaft (48).
•
•
