Installation 3.1 Transport and storage
Page 18 BOGE Operating instructions for C 10 L...C 20 L series screw compressors

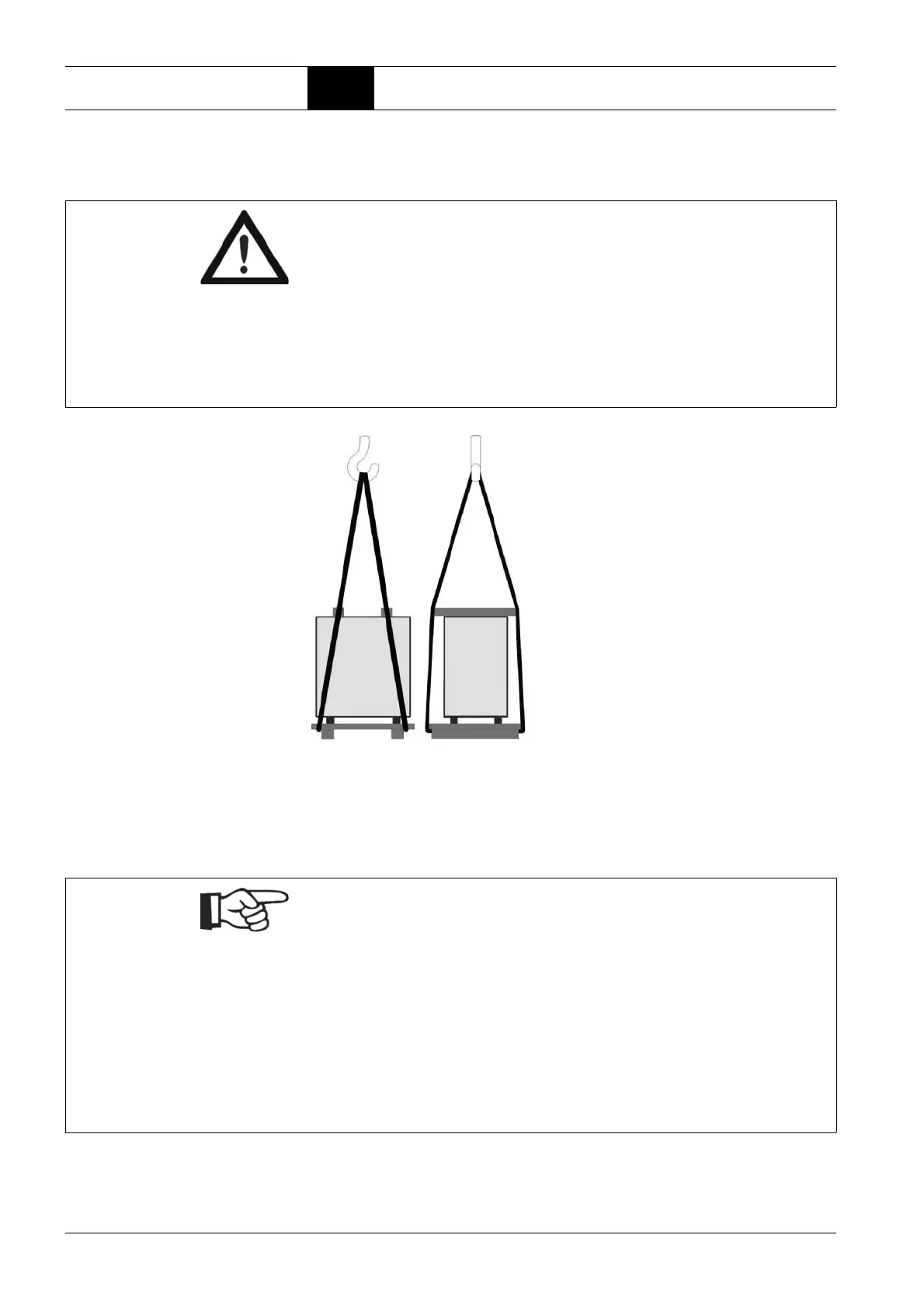

Crane transport
Fig. 3.2: Crane transport
Intermediate storage
In case the compressor is not installed immediately after delivery, it has to be
stored at a sheltered location. It must be ensured that during the intermediate
storage neither dust nor humidity can penetrate.
Attention!
Inappropriate transport may lead to compressor damages. Do not subject the
safety cladding to force during transport.
– Only lift compressor by using the supplied transport pallet.
– Protect the compressor using wooden spacers (see arrows in the illus-
tration below).
– Remove transport timber.
– Only use suitable transport slings having a minimum length of approx.
315 inches!
Place loops of the transport slings at the
head sides underneath the supplied trans-
port pallet of the compressor.
Neither fasten the transport slings to the
suction filter nor to the eyelet on the motor.
Note!
In case of an intermediate storage please observe the specifications and
directions as to permissible environmental impacts (see chapter „
3.2 Com-
pressor room: Installation, maintenance conditions and application for com-
pressed air receivers arranged below or separately“).
In case of a careless storage we assume no liability for consequent dam-
ages!
In the event of an extended intermediate storage or after an extended stand-
still (six months) you should consult BOGE-Service.
Please observe the directions for commissioning after an extended standstill
(see chapter „
3.5 Commissioning“) if the intermediate storage takes longer
than two months.
