Maintenance 6.3 Maintenance work compressor
Page 58 BOGE Operating instructions for C 15 series screw compressors
Switch off the compressor using the OFF button.
Draining old oil

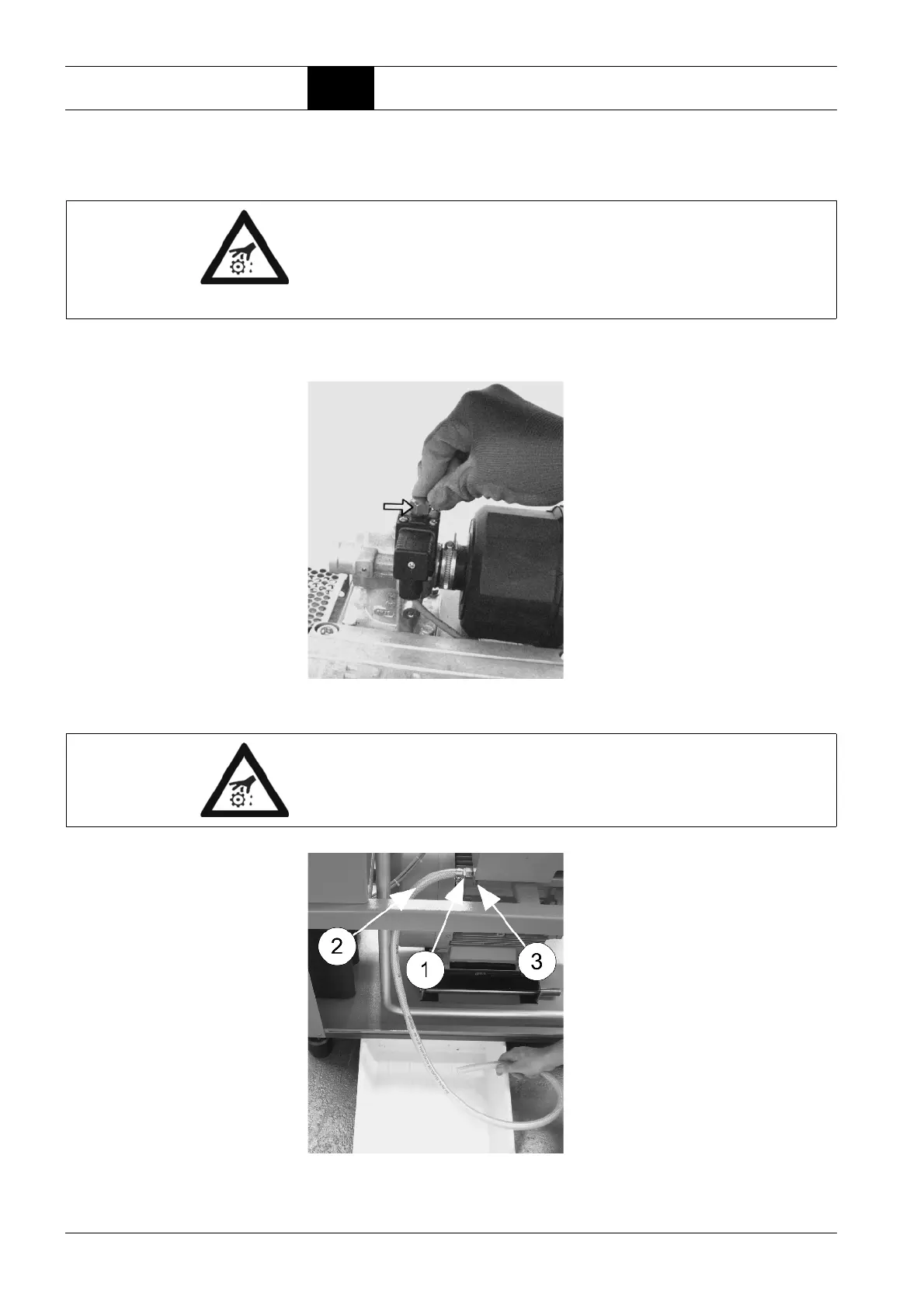

Fig. 6.7: Solenoid valve on the suction controller with the cap nut screwed on
Fig. 6.8: Oil drain from oil compressed air receiver
WARNING: Risk of injury!
Prior to any maintenance and servicing work take all necessary safety pre-
cautions described on page 44!
Do not vent compressor completely so that a pressure cushion is still availa-
ble.
Switch off compressor. After ap-
prox 2 sec screw cap nut (see ar-
row) on the bleed aperture of the
solenoid valve (the nut is located
in the storage compartment of the
switch cabinet).
WARNING: Risk of injury!
Danger of burning due to hot oil!
Always wear safety gloves!
Remove blind plu (1) at oil drain
(3) with the tap closed.
Fit oil drainage hose (2). (The
hose is located on the machine)
Place the oil drain hose into a
suitable container.
Slowly open the stop valve.
The pressure cushion forces the
oil into the container.
Once the compressed air/oil
receiver has been completely
drained, close the stop valve.
