Appendix
7.1
Flow chart
Page 66

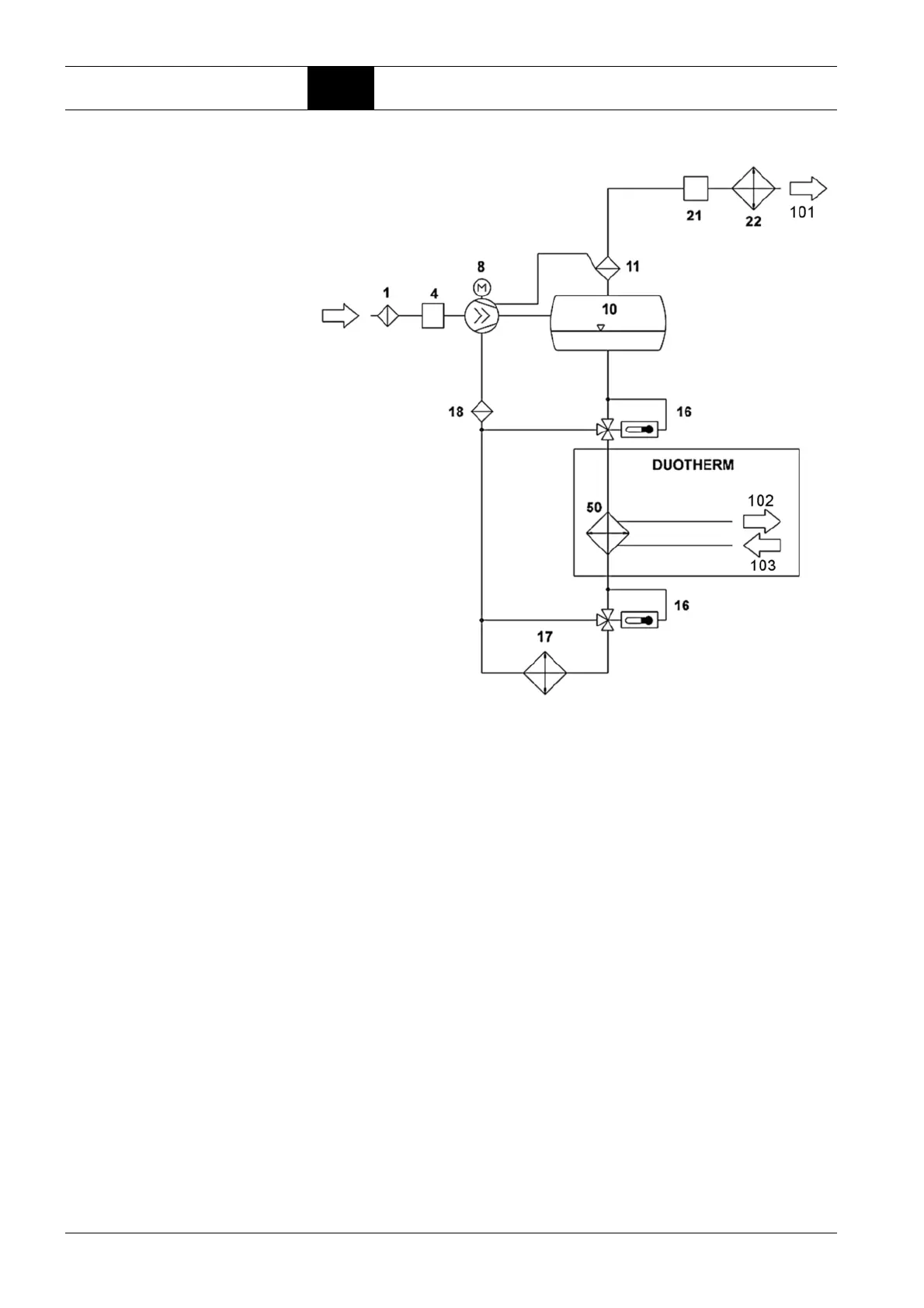

BOGE Operating instructions
for C 15 series screw comp
ressors
BOGE-Duotherm BPT
plate heat exchanger
101
Compressed air OUTLET
102
Return
103
Flow
1
Suction filter
4
Suction controller
8
Compressor air end
10
Combined compressed air/oil receiver
11
Oil separator
16
Thermostatic oil control valve
17
Oil cooler
18
Oil filter
21
Minimum pressure non-return valve
22
Compressed air after-cooler
50
Heat exchanger
73
75
