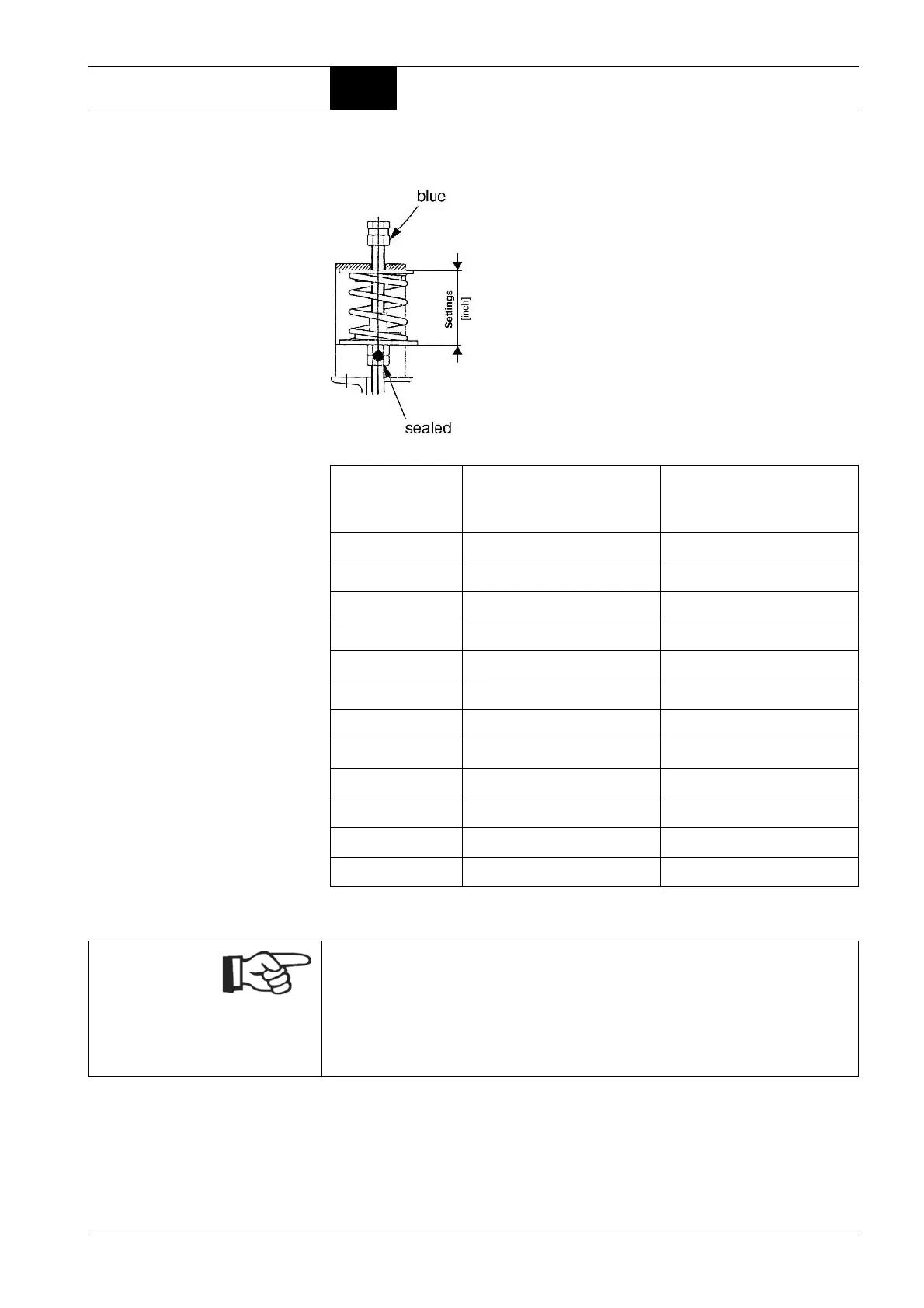

Operating instructions for S 40-3...S 150-3 series screw compressors Page 69
Maintenance 6.4 Maintenance work at fixed service intervals
Settings of the GM-drive systems with standard motors (60 Hz)
Tab. 6.4: Settings with standard motors
As to the setting value for the corresponding motor
we refer to the table below.
Type Pressure
[psig]
Setting
+ 0 / – 0.04
[inch]
S 40-3 100 / 115 / 125 / 150 / 190 3.9 / 3.9 / 3.9 / 3.9 / 3.7
S 50-3 100 / 115 / 125 / 150 / 190 4.0 / 4.0 / 4.0 / 4.1 / 3.9
S 60-3 100 / 115 / 125 / 150 / 190 4.3 / 4.4 / 4.4 / 4.4 / 4.4
S 61-3 100 / 115 / 125 / 150 / 190 4.7 / 4.7 / 4.7 / 4.6 / 4.6
S 75-3 100 / 115 / 125 / 150 / 190 4.4 / 4.4 / 4.4 / 4.4 / 4.3
S 100-3 100 / 115 / 125 / 150 / 190 3.5 / 3.5 / 3.5 / 3.5 / 3.6
S 101-3 100 / 115 / 125 / 150 / 190 4.7 / 4.3 / 4.3 / 4.3 / 4.0
S 125-3 100 / 115 / 125 / 150 / 190 5.2 / 4.8 / 4.8 / 4.8 / 4.3
S 150-3 100 / 115 / 125 / 150 / 190 6.1 / 6.1 / 6.1 / 5.7 / 5.2
SF 60-3 100 / 115 / 125 / 150 / 190 4.3 / 4.4 / 4.4 / 4.4 / 4.4
SF 100-3 100 / 115 / 125 / 150 / 190 3.5 / 3.5 / 3.5 / 3.5 / 3.6
SF 150-3 100 / 115 / 125 / 150 / 190 6.1 / 6.1 / 6.1 / 5.7 / 5.2
NOTICE!
The settings shown in the table are fixed by the manufacturer and may not
be changed. Slight deviations are allowed and compensated by the GM drive
system.
The current settings are also shown on the GM drive system. With special
versions the settings on the sticker may deviate from the standard values.
