Maintenance every 6 months
BOMAG50 BPR 45/55 D, BPR 55/65 D
6.13 Check the oil level in the ex-
citer housing
Caution
!
Park the machine on level ground.
l Clean the area around breather and drain
plug.

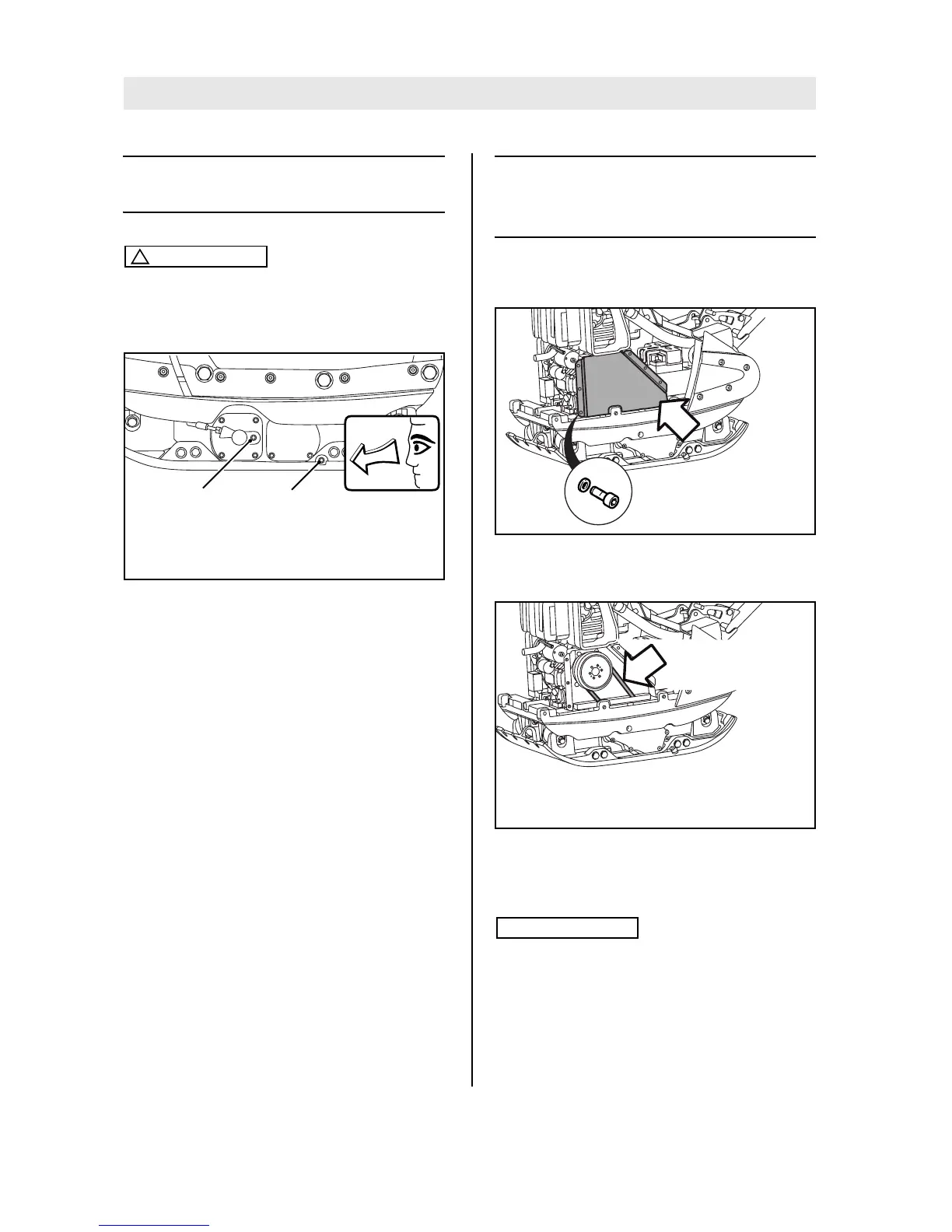

Fig. 53
l Unscrew the bleeding screw (1) (Fig. 53).
l Unscrew the oil level inspection plug (2) and
check the oil level.
l The oil level must reach the bottom edge of the
inspection opening, if necessary fill in oil.
For quality of oil refer to the "table of fuels and
lubricants".
l Clean the oil level inspection plug and screw in
with sealing agent (e.g. BOMAG 009 700 16).
l Screw the bleeding screw back in.
6.14 Check the V-belt tension, if
necessary replace the V-
belt
Checking the V-belt
Fig. 54
l Remove the V-belt guard (Fig. 54).
Fig. 55
l Check condition and tightness of V-belt (Fig.
55).
Note
i
Compression measurement: approx. 10 to 25 mm
(0.59 to 0.98 in)
692080
1 2
692070
692071
ca. 10-25 mm
appr. 0.59-0.98 in
