Section 10 BODY/FRAME
Subsection 03 (FRAME)
10-03-3
Remove M10 x 55 mounting flanged bolts no. 10
and the flanged nuts no. 11.

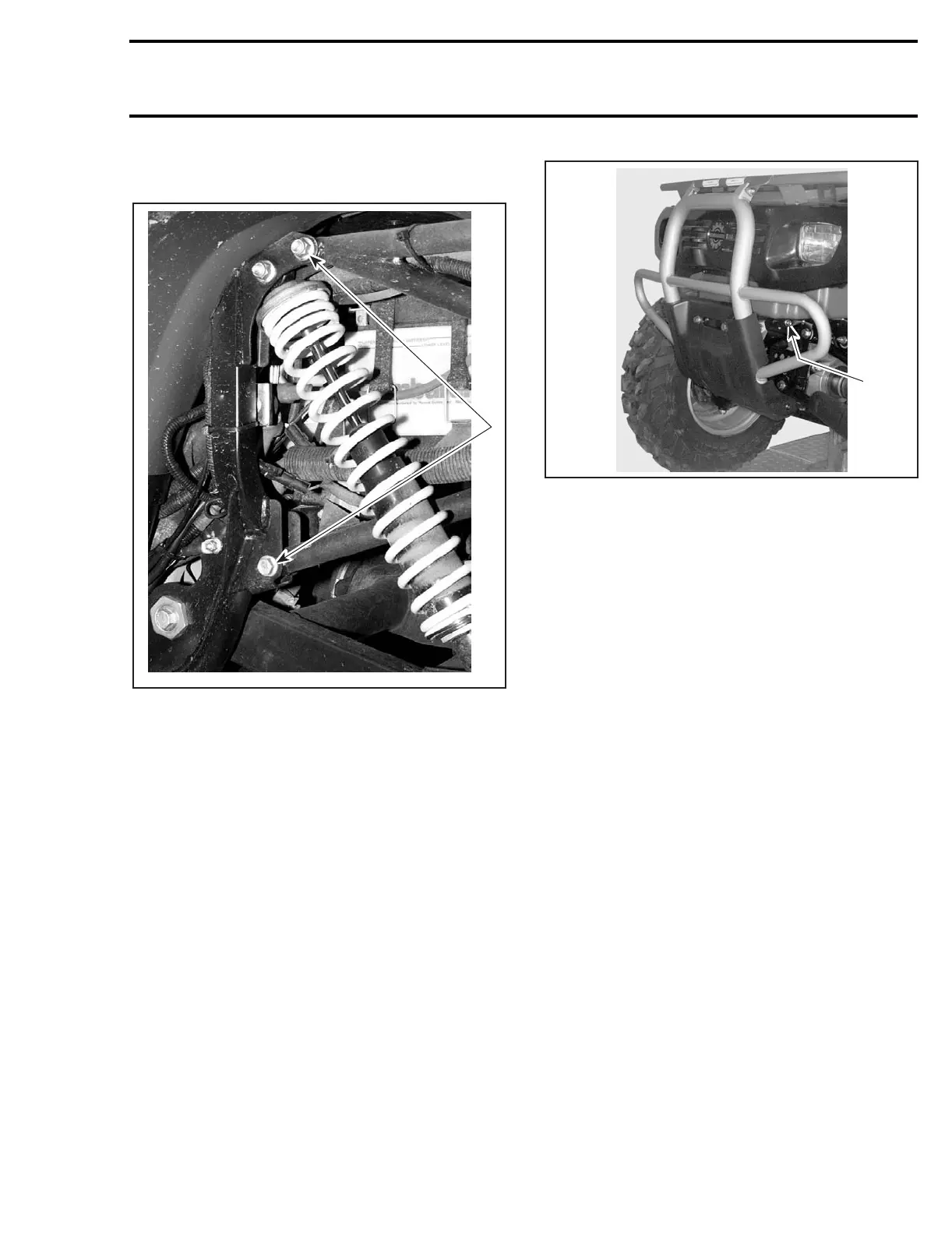

1. Remove the M10 x 55 mounting flanged bolts
Inspection
Check for crack, bent tube or other damage. Re-
pair or change if necessary.
Installation
Installation is the reverse of removal procedure.
4, WINCH PLATE
Removal
Remove front skid plate and front bumper. Refer to
BODY 10-02.
Remove M8 x 20 flanged bolts no. 12 and flanged
nut no. 13.
1. Remove M8 x 20 flanged bolts
Inspection
Check for crack or other damage. Change if neces-
sary.
Installation
Installation is the reverse of removal procedure.
5, FRAME
Cleaning
Clean frame and frame extension with appropriate
cleaners and rinse with high pressure hose.
Touch up all metal spots where paint has been
scratched off. Spray all bare metal parts of vehicle
with metal protector.
Welding
Steel Frame:
– electric welding
– amperage: 70 - 110 A
– voltage: 20 - 24 V
– rod: E-7014 (3/32 in)
V01L2JA
1
V01L0YC
1
