Section 02 MAINTENANCE
Subsection 03 (MAINTENANCE/LUBRICATION)
02-03-1
MAINTENANCE/LUBRICATION
AIR FILTER CLEANING/DRAINING

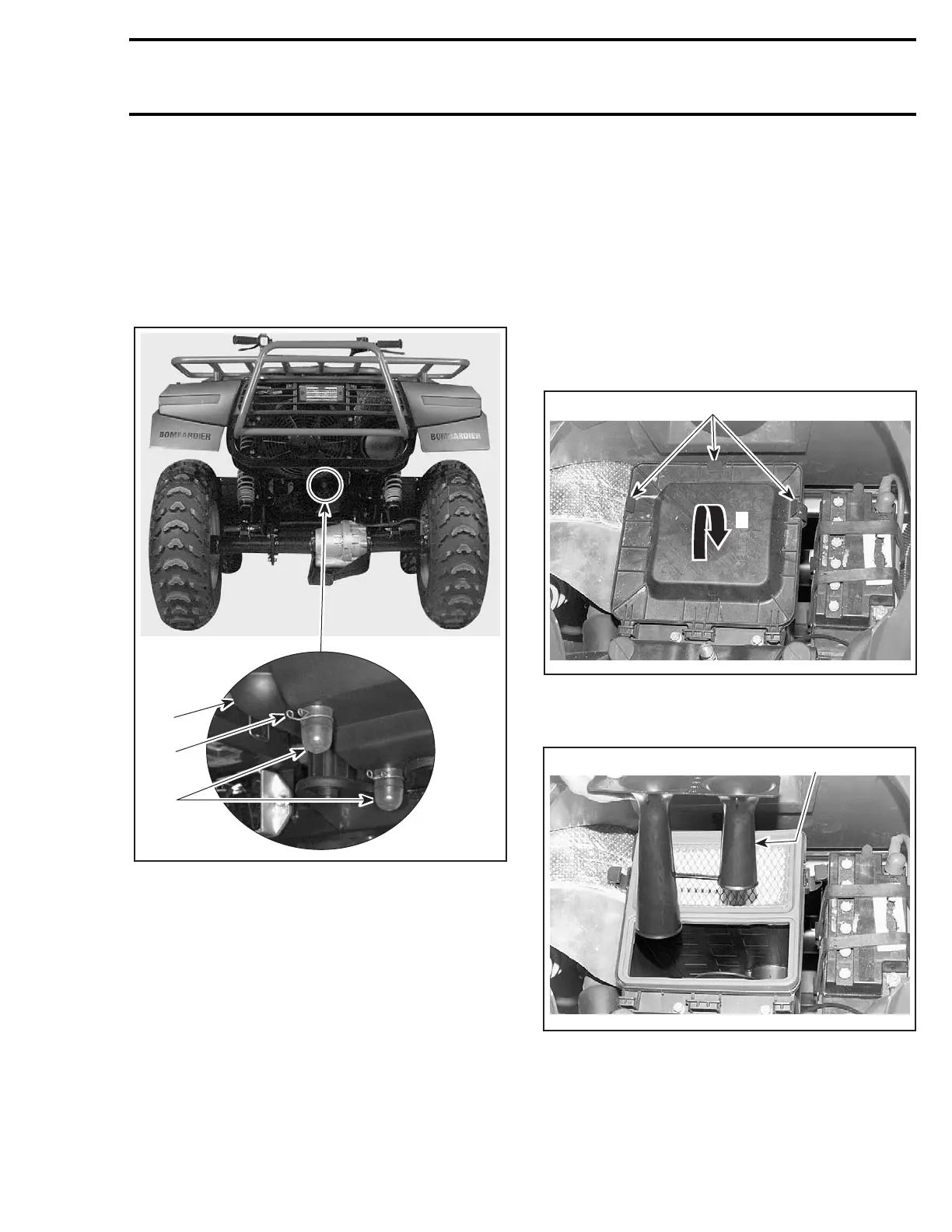

Air Filter Box Draining
Periodically inspect air filter box drain plugs for wa-
ter or deposits. Refer to the maintenance chart.
1. Air filter box
2. Drain plugs
3. Clamp
NOTE: If vehicle is used in dusty area, inspect
more frequently than specified in maintenance
chart.
If water/deposits are found, squeeze the clamp
and remove. Pull drain tube out. Proceed with
each drain plug.
CAUTION: Do not start engine when water is
found in the drain tubes.
When water/deposits are found, air filter must be
inspected/dried/replaced depending on its condi-
tion.
Remove air filter as explained below.
Air Filter Removal
Remove seat.
Release clamps and remove air filter box cover.
1. Release clamps
2. Lift to remove
Remove air baffles, air filter and foam.
1. Air baffle
V01F04A
1
2
3
1
V01F05A
2
V01F06A
1
