BONAIRE 5000D - Page 17

INSTALLATION INSTRUCTIONS
17
Unit Installation

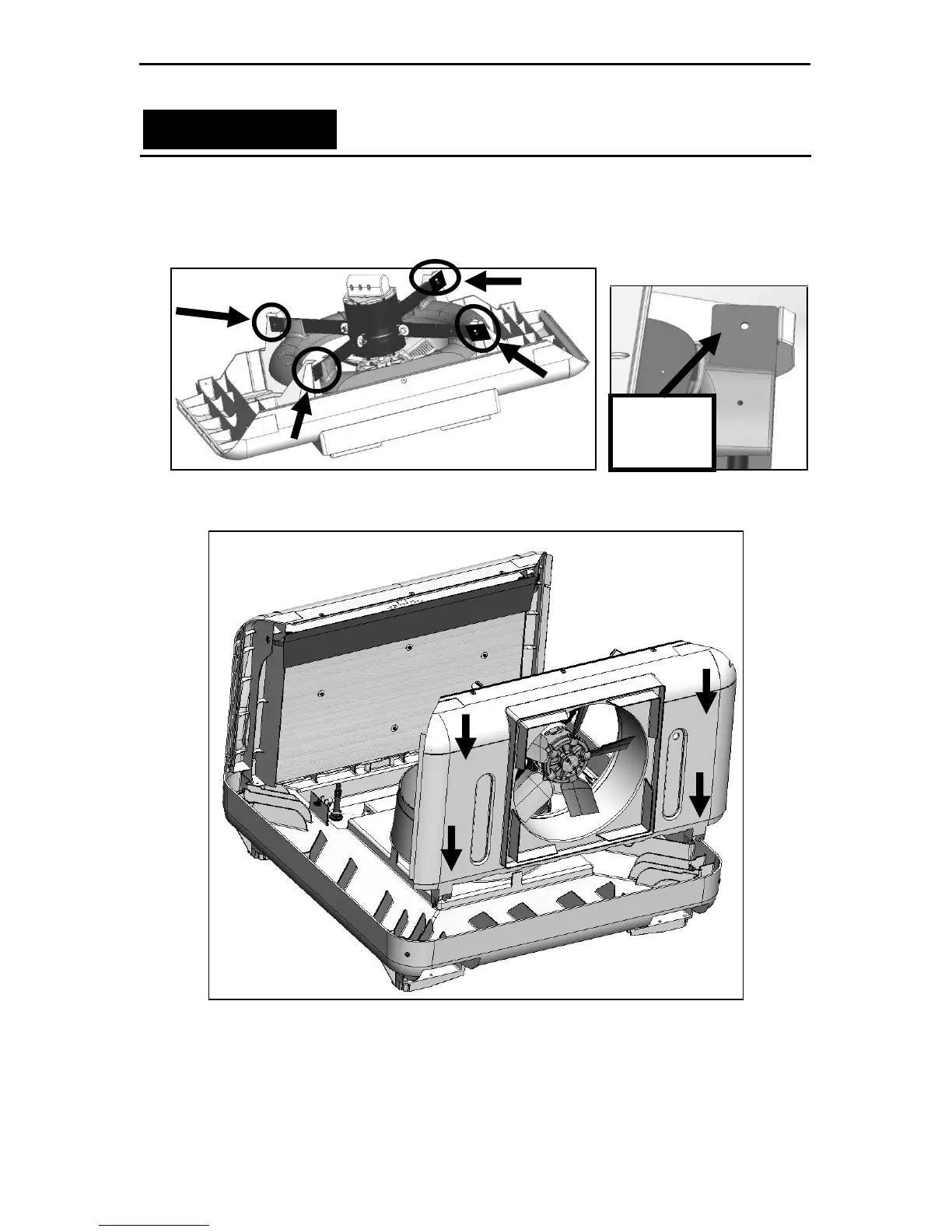

n. Ensure motor arms are securely located by the “hooks” on the side panel motor arm
supports (4 places).
NOTE: Fan motor arms are on the “hook” side of the side panel motor arm support (4
places) as shown in the image below.
o. Refit the side panel and fan motor assembly to the base / tank.
Motor arm
located in
support
“hook”
