BONAIRE 5000D - Page 18

INSTALLATION INSTRUCTIONS
18
Unit Installation

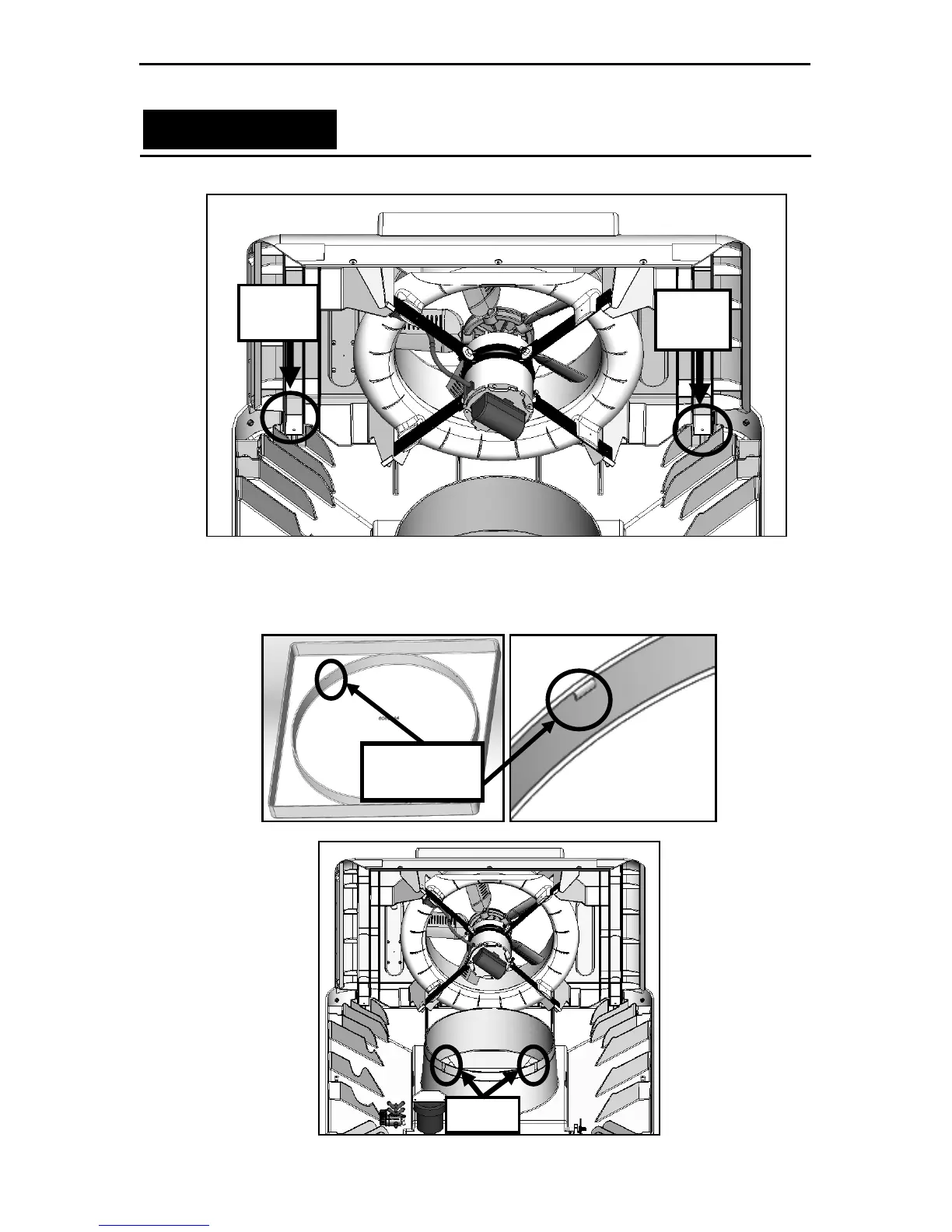

p. Refit side discharge panel screws (2 places) to secure panel to base / tank.
q. Fit the cap to the “down discharge” opening by aligning the 4 projections on cap with
the 4 notches on the “down discharge” opening so the cap fits squarely in the base.
Refit
screw
Refit
screw
Cap
projection
4 places
Notches
