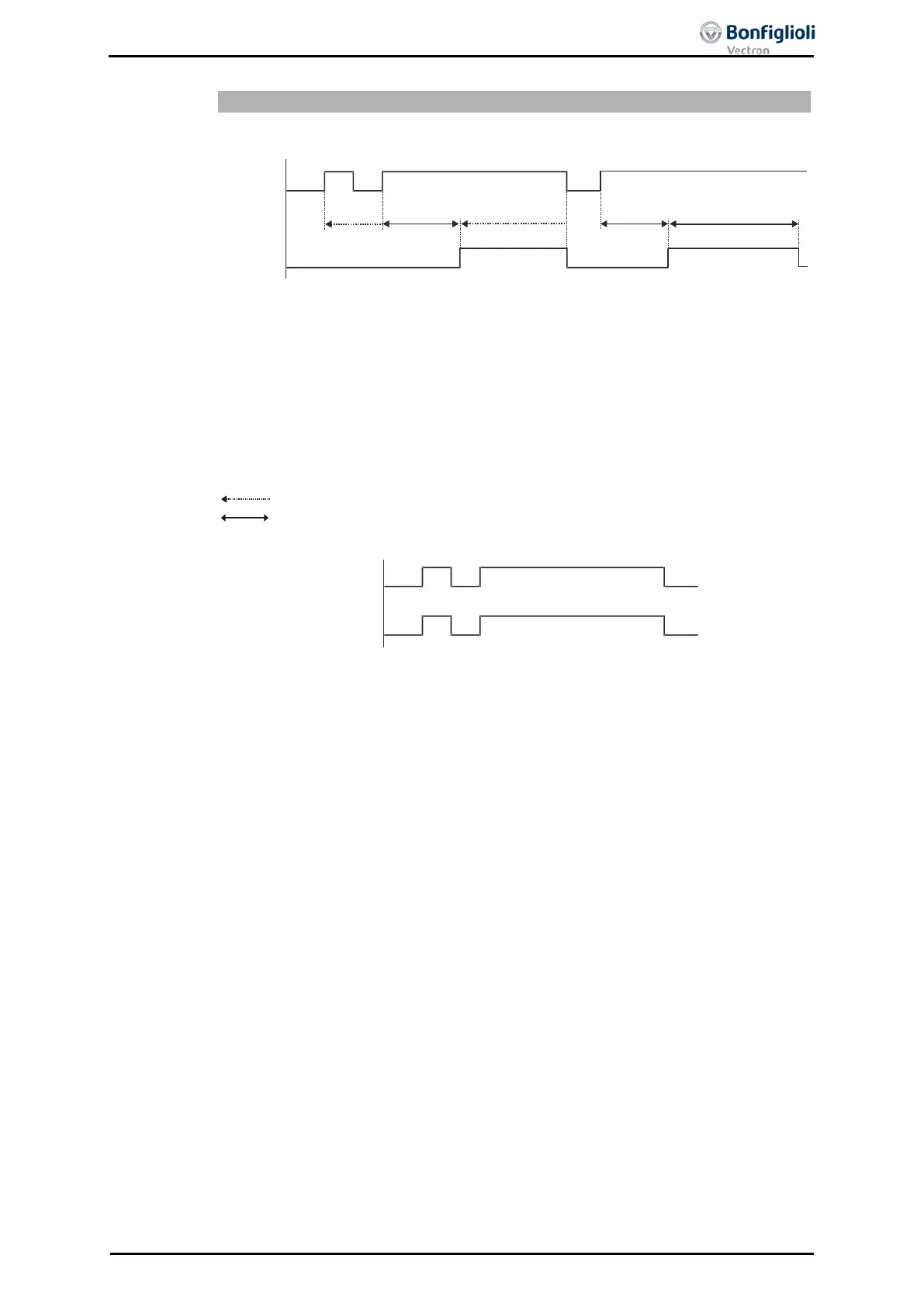

AND connection, positive edge
Parameter Operation Mode Timer 1 790 or Operation Mode Timer 2 793 = 3
1)
As soon as the positive signal edge is received at the input, time 1 (signal delay)
is started.
2)
If a positive signal edge is detected within time 1 (signal delay), time 1 starts
again (retrigger).
3)
After the expiry of time 1 (signal delay), the output signal is switched on for the
time 2 (signal duration).
4)
Within the time 2 (signal duration), the output is switched off by the input signal
(AND-connection).
5)
If the input signal is present during the whole time 2 (signal duration), the output
signal remains on in this time.
: Time not run out completely
: Time run out completely
Factory settings: Time 1= 0, Time 2 = 0
In the factory settings the output signal follows the input signal.
Input
Output
Time 2Time 1Time 1 Time 1 Time 2
1) 2) 3) 4) 5)
Input
Output
06/13 Operating Instructions ACU 203
