BONFIGLIOLI active Installation Manual

16 11/06

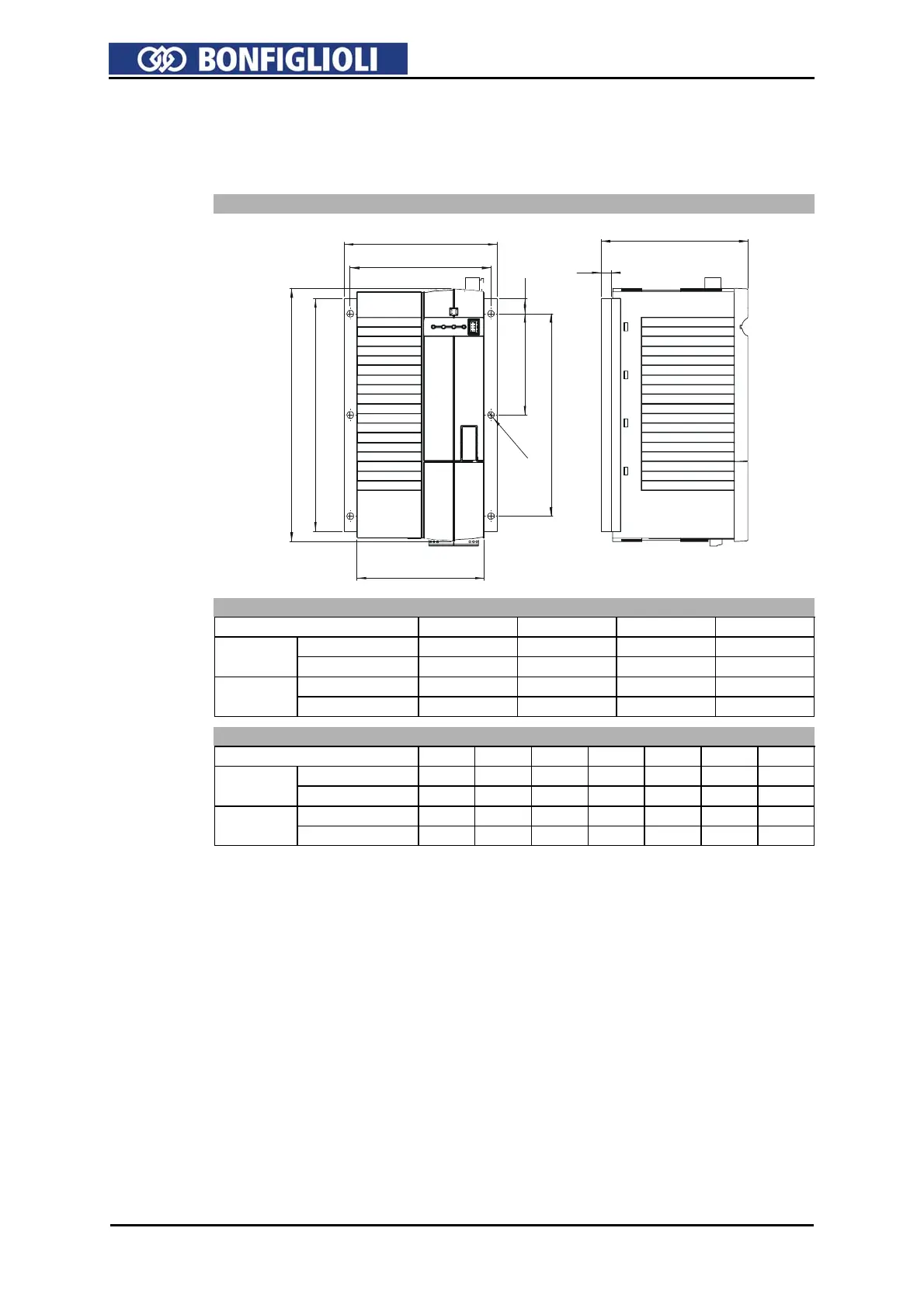

6.2 ACT/ACU 201 (4.0 to 9.2 kW) and ACT/ACU 401 (5.5 to
15.0 kW)
Installation "Cold Plate" variant
a1
a2
a
b
b4
b2
b3
c
c1
d
b1
Dimensions in mm
Frequency inverter
a b c d
4.0 … 5.5 kW
100 250 144 Ø 6.6
ACT/ACU
201
7.5 … 9.2 kW
125 250 144 Ø 6.6
5.5 ... 9.2 kW
100 250 144 Ø 6.6
ACT/ACU
401
11.0 ... 15.0 kW
125 250 144 Ø 6.6
Installation dimensions in mm
Frequency inverter
a1 a2 b1 b2 b3 b4 c1
4.0 … 5.5 kW
125 113 230 100 200 15 10
ACT/ACU
201
7.5 … 9.2 kW
150 138 230 100 200 15 10
5.5 ... 9.2 kW
125 113 230 100 200 15 10
ACT/ACU
401
11.0 ... 15.0 kW
150 138 230 100 200 15 10
