05/2013 35 Quick Start Guide
Agile

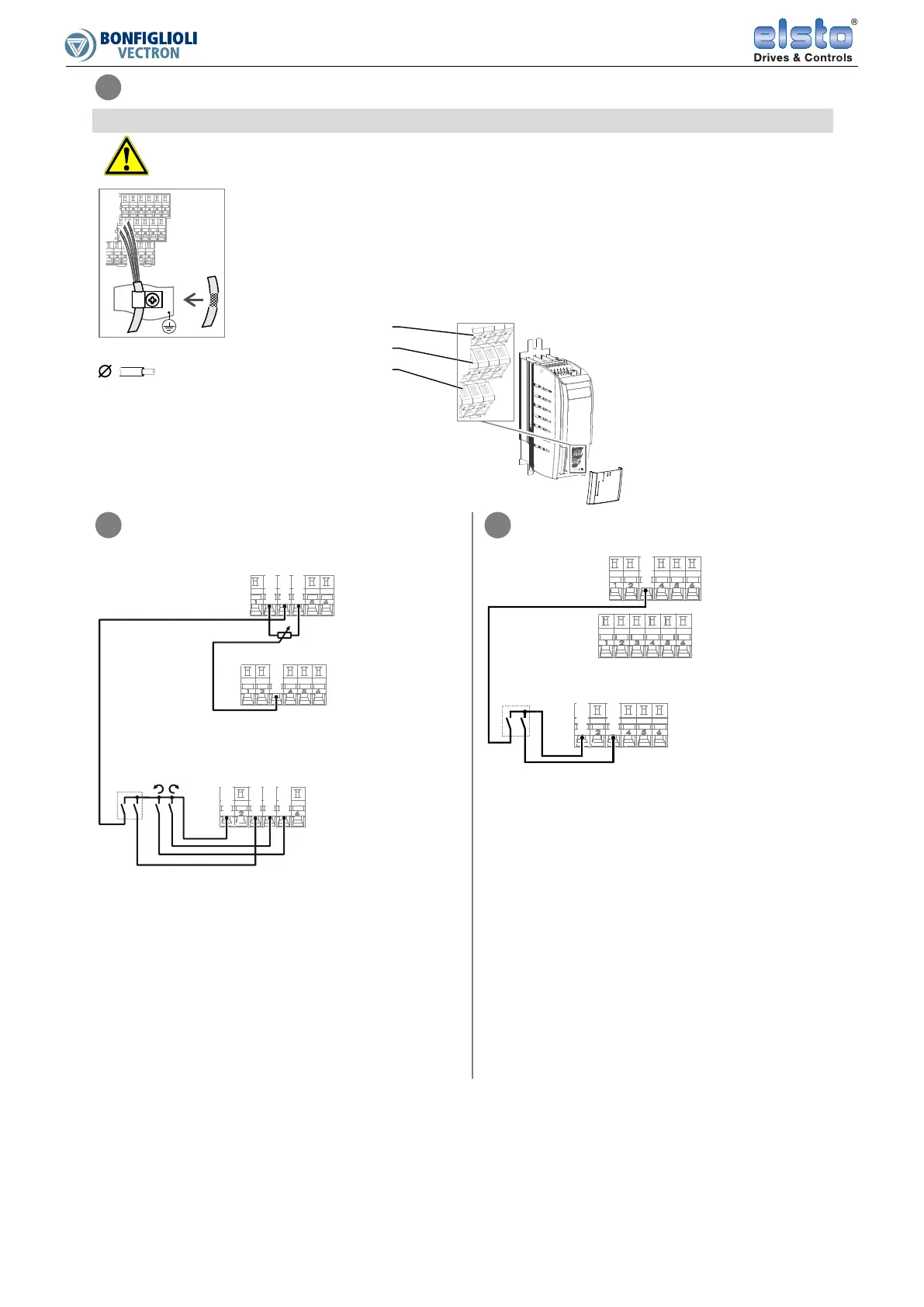

Wiring of control cables
Danger!
Switch off power supply before connecting or disconnecting terminals.
Use shielded control cables.
Connect the conductor shielding of the control cables to ground potential by
means of the shielding clamp.
Connect the conductor shielding to ground potential on both sides of the
cable. Analog cables must be grounded only on the inverter side.
The control cable must be separated from the motor cable and mains cable
(not in the same cable duct).
1.5 mm
2
max. 2.5 mm
2
Operatin
via control si
nals Operatin
via Operator panel
Start cw: start clockwise E: Enable
Start ccw: start anticlockwise
VDC out: voltage outputs
E: Enable
Start drive via control signals:
After Setup switch on start signals on X11.4 (start
clockwise) or X11.5 (start anticlockwise). The drive is
accelerated to 3.50 Hz (default value of P418).
Start drive via key of operator panel
After Setup select function Motorpoti (menu Local/
Poti F, refer to section „Menus and functions“).
Press RUN.
The drive is accelerated to 3.50Hz
(default value of P. 418).
Press the arrow keys to the speed.
Before commissioning, all covers must be mounted on the frequency inverter.
In case of errors refer to section "Error messages and warnings".
In case of wrong direction of rotation exchange two motor phases (e.g. U and V).
Note
For the default functions of all control terminals refer to section "Functions of control terminals".
D
X13
X12
X11
D1
D2
42 3
3
1 3 4 5
24 VDC out
STOA
0..10V
Start cw
Start ccw
GND
10 VDC out
X11
X12
X13
E
n
Start
STOB
> 4k7
X12
X13
3
E
1 3
X11
24 VDC out
STOA
STOB
