Quick Start Guide
Agile 36 05/2013

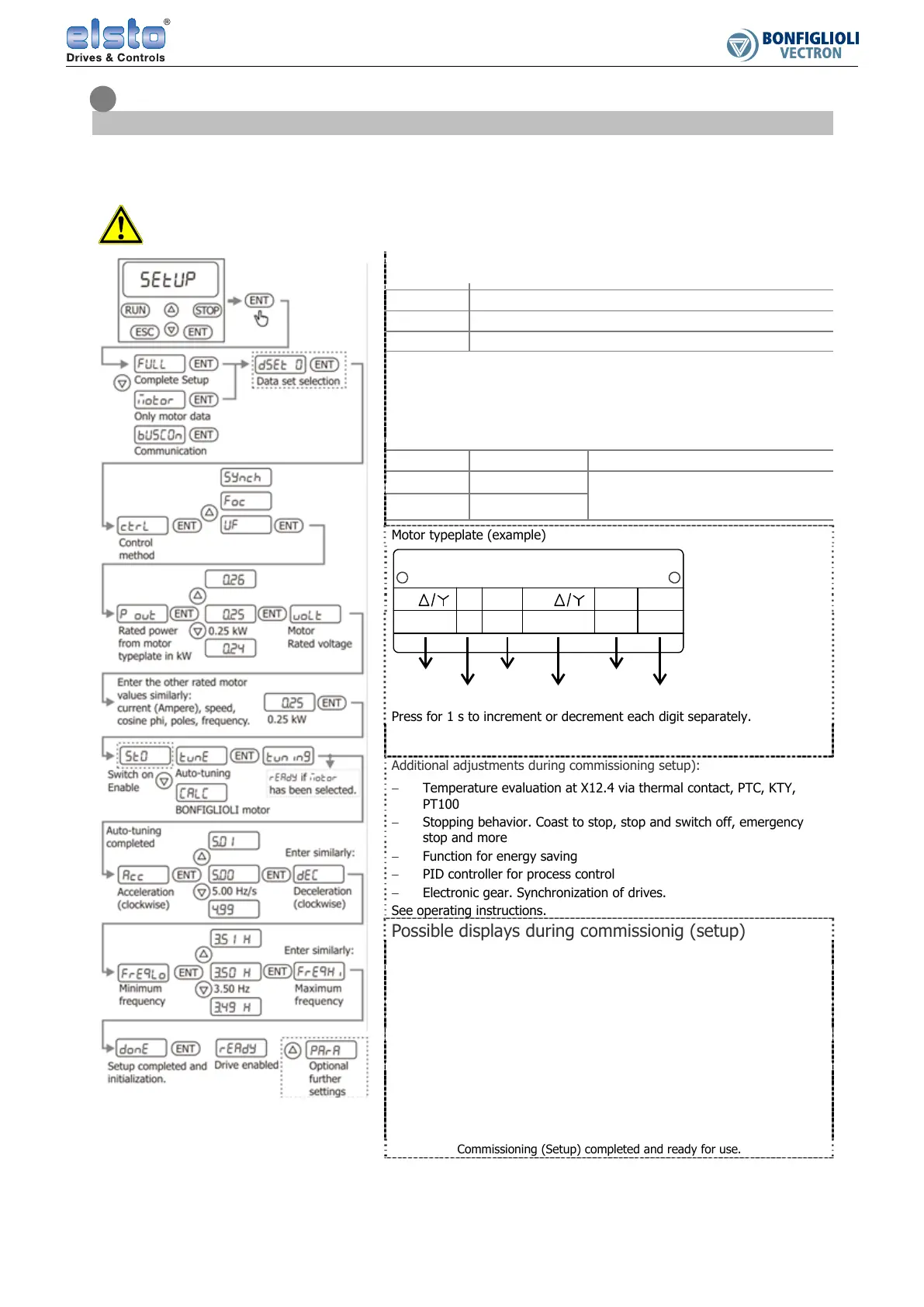

Setup via operator panel
 Switch on enable signals on X11.3 and X13.3.
 Switch off start signals on X11.4 and X11.5.
 Switch on mains supply.
 Start Setup procedure.
Caution!
If the motor data is not entered correctly, the drive may be damaged.
Setup can be selected via menu item "Setup". At first switch-on Setup is
displayed automatically.
Fu L
L
Complete Setup. Select for the first commissioning.
Motor
Select for only motor data measuring.
Select for commissioning of communication.
Ds et 0
Data set query is only displayed if Setup is manually selected
via the menu item "Setup".
Choose data set 0. Another setting is only necessary for setup of various
motors.
cT RL
Control method
UF
Asynchronous motor
V
/f-control with variable speed (default)
Fo
c
Asynchronous motor
Field oriented control. High drive
Dynamics and accurate speed control
and torque control.
S yN ch
Synchronous motor
Motor typeplate (example)
Press for 1 s to increment or decrement each digit separately.
Entry of cosPhi in control method UF and Foc. Entry of PoLPrS (number
of pole pairs) in control method Synch.
A
dditional adjustments during commissioning setup):
− Temperature evaluation at X12.4 via thermal contact, PTC, KTY,
PT100
− Stopping behavior. Coast to stop, stop and switch off, emergency
stop and more
− Function for energy saving
− PID controller for process control
− Electronic gear. Synchronization of drives.
See operating instructions.
Possible displays during commissionig (setup)
Message if Enable is missing. Switch on the signal at X11.3 and X13.3.
In case of error messa
g
es refer to section “. Error messa
g
es and
warnings during Setup”.
Select, if further motor parameters are to be measured automati-
cally.
Measurement of motor data.
Select, if the data of a BONFIGLIOLI motor entered.
The pre-settings of other motor data are loaded.
A
cceleration clockwise, factory settin
g
5Hz/ s
Deceleration clockwise, factory settin
g
5Hz/ s
Minimum frequency, factory settin
g
3,5Hz
Maximum frequency for speed limitation, factory settin
g
50Hz
Commissioning (Setup) completed and ready for use.
Start drive via control signals or via key of operator panel.
tvn
e
E
Hz kW min
-1
230/400
V
50 0.25 1375
cos
ϕ
1.32-0.76
A
0.77
voLt
Freq
P ovt
Ampere
SPEED
cosPh
i
don
e
BUSCON
S
t
O
SA0O-
-
SF0O-
-
Tvnin
g
CA
L
C
A
cc
D
EC
FreqL
o
F
r
eq
H
i
