Voorhout • Groningen • Weert • Hoogerheide T +31(0)88 7865800 I elsto.eu
Quick Start Guide
Agile
28 05/2013
Proper use
The product is an electrical drive component. It is applicable for
installation in machines or electrical plants
the control of three-phase asynchronous motors and synchronous motors.
industrial environments
Transport and Storage
Ambient temperature:-25 ... 55 °C
Relative humidity: 5 ... 95%, free of condensation.
Store in original packaging in dry rooms without dust.
Avoid high temperature variations.
Connect to mains voltage for 60 minutes after one year of storage before use.
On opening the package
Make sure that the delivered product is the part you have ordered.
Check if the product is damaged and make sure that the delivery is complete.
Notify complaints to the supplier immediately.
Installation
Indoors , protected against weather influence.
Avoid direct sunlight exposure.
Avoid dust.
Keep away from strong electromagnetic fields.
Keep away from combustible material.
Provide sufficient cooling. Install fans when installing the frequency inverter inside an en-
closed cabinet.
Altitude: ^3000 m, over 1000 m with derating (output current reduction).
The degree of protection of the frequency inverter is IP20.
Operating conditions
Ambient temperature: 0 ... 40 °C
Relative humidity: maximum 85%, free of condensation
Ambient pressure: 70 ... 106 kPa

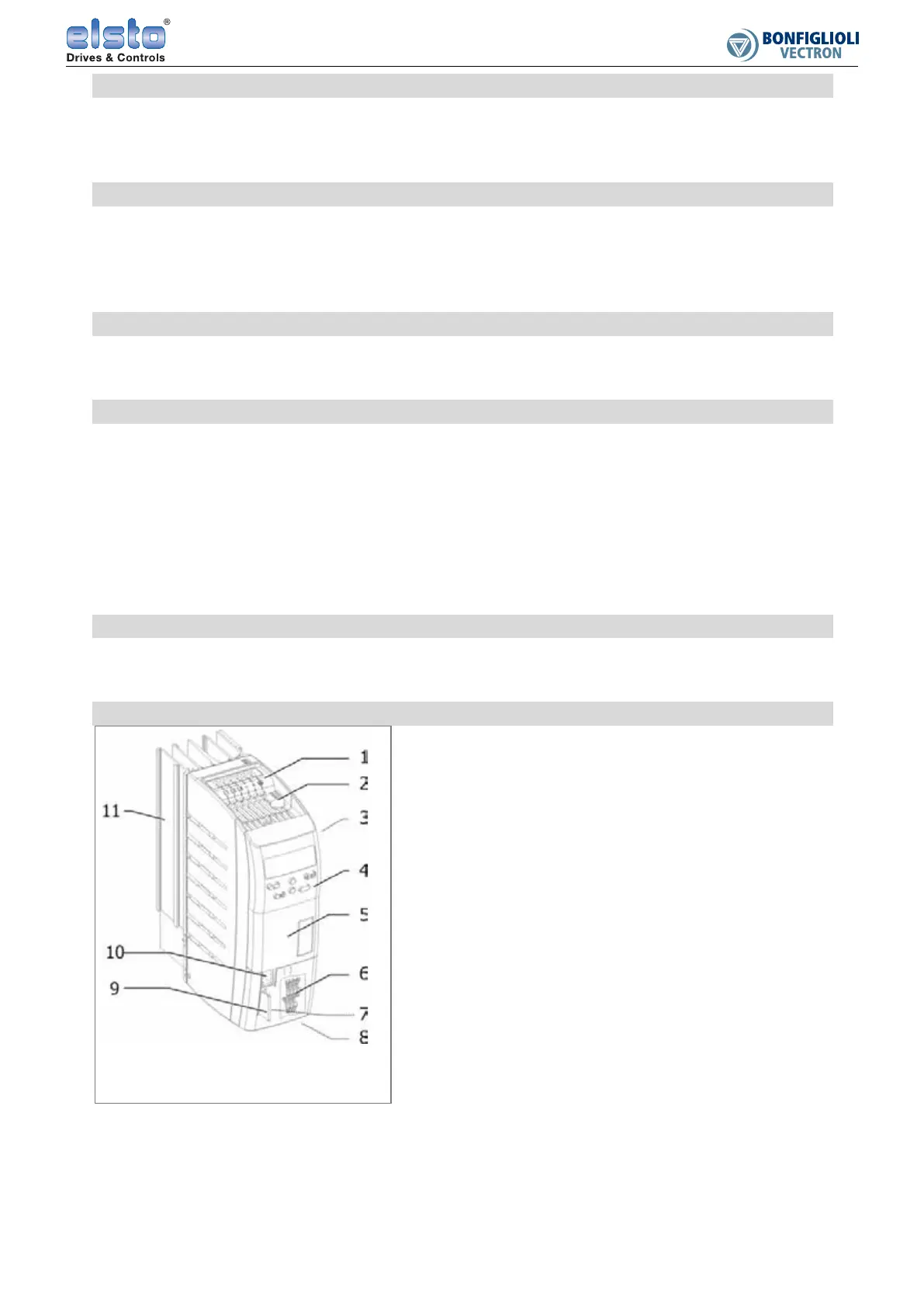

Overview
1 Mains connection
2 Relay output
3 Type plate
4 Operator panel
5 Plug-in section for optional
communication module
6 Control terminals
7 Software version-plate
(between emory card slot and Control terminals)
8 Motor connection
9 Memory card slot
10 Communication interface X21 with RJ45 connec-
tion
11 Heat sink
