Quick Start Guide
Agile 32 05/2013

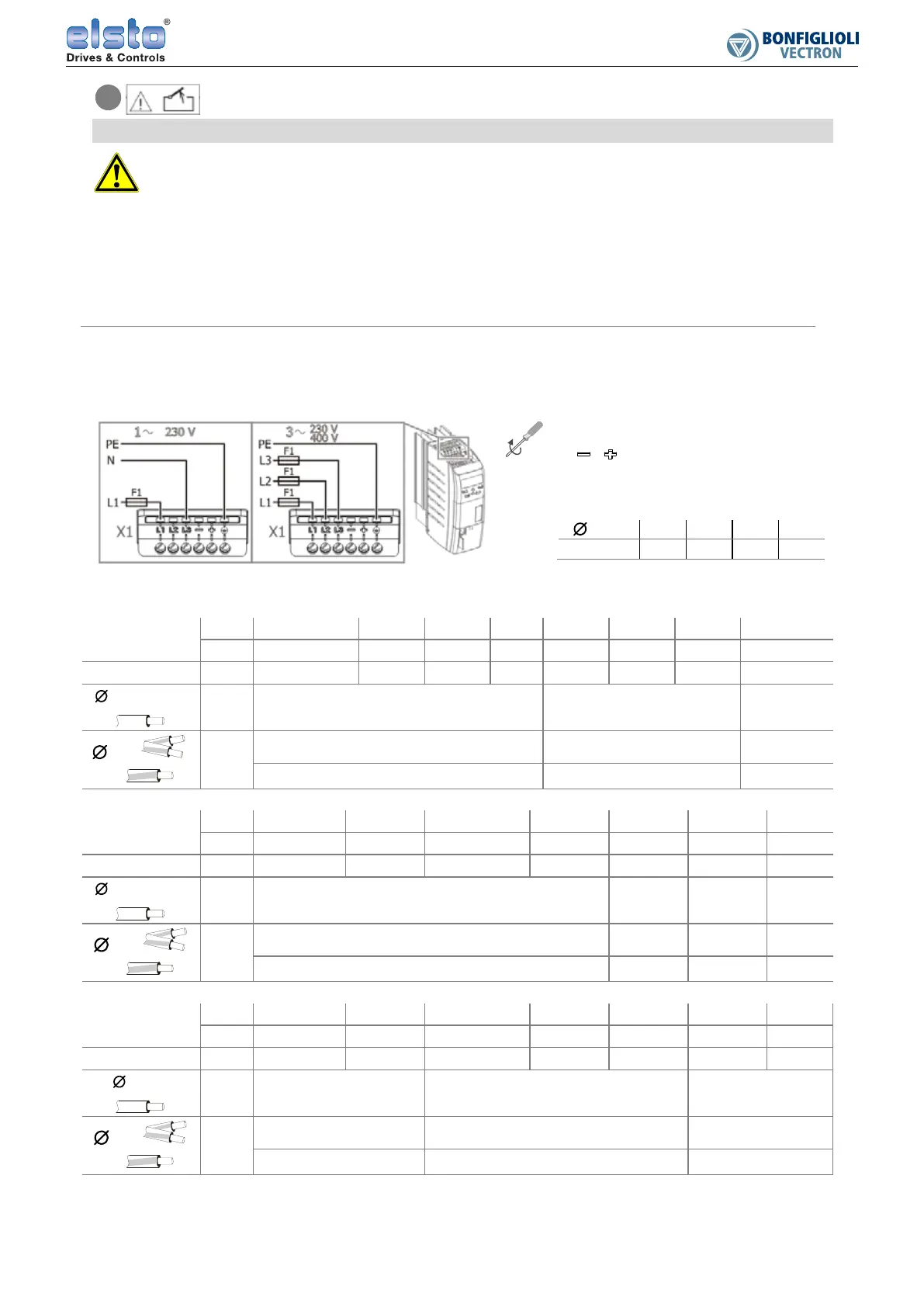

Mains connection
Danger!
 Switch off power supply
 Dangerous voltage: The power terminals may carry dangerous voltages for some time even if
the power supply is switched off. Wait for some minutes before starting to work at the
frequency inverter.
 Make sure that the frequency inverter is de- energized.
 Do not carry out high voltage insulation tests on cable connect to the frequency inverter.
 Follow local wiring codes
 Connect mains supply.
0,5
Nm
Note:
Only required for DC-
link connection.
mm
2
1,5 2,5 4 10
AWG 16 14 12 8
AWG: American Wire Gauge
(American unit)
3~400 V
Type -02…-11 -13 -15 -18 -19 -21 -22 -23
kW 0.25…1.5 2.2 3.0 4.0 5.5 7.5 9.2 11
F1 A 6 10 10 10 16 25 35 35
L1, L2, L3
mm
2
1.5 2.5 4
PE
mm
2
2 x 1.5 2 x 2.5 2 x 4
or 1 x 10 1 x 10 1 x 10
3~230 V
Type -01…-07 -09 -11…-13 -15 -18 -19 -21
kW 0.18…0.75 1.1 1.5…2.2 3.0 4.0 5.5 7.5
F1 A 6 10 16 25 35 35 50
L1, L2, L3
mm
2
1.5 2.5 4 6
PE
mm
2
2 x 1.5 2 x 2.5 2 x 4 2 x 6
or 1 x 10 1 x 10 1 x 10 1x10
1~230 V
Type -01…-07 -09 -11…-13 -15 -18 -19 -21
kW 0.09…0.37 0.55 0.75…1.1 1.5 2.2 3.0 3.0
F1 A 6 10 16 25 35 35
L1, N
mm
2
1,5 2,5 4
PE
mm
2
2 x 1,5 2 x 2,5 2 x 4
or 1 x 10 1 x 10 1 x 10
B
