05/2013 31 Quick Start Guide
Agile

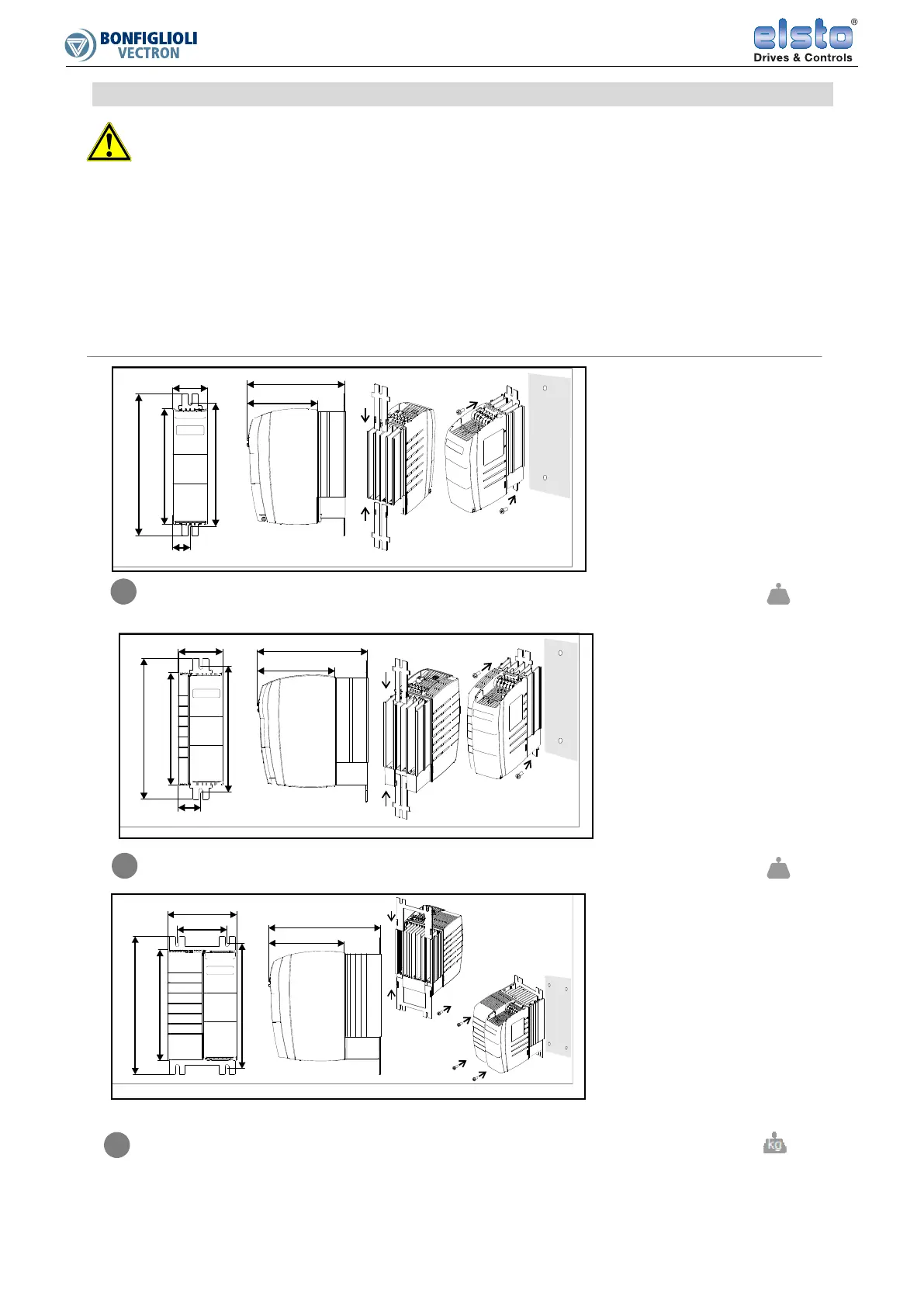

Assembly
Warning!
Make sure, that no foreign particles (e.g. dust, metal shavings, wires, screws, tools) can get
inside the frequency inverter.
Install the frequency inverter on a non-flammable mounting plate.
Installation in bottom-up or horizontal position is not permissible.
Screw the frequency inverter to a metallic (not varnished) mounting plate.
The frequency inverter must be earthed.
For potential equalization connect frequency inverters, cabinets, machine frames, filters etc.
via short conductors (with large cross- section) to the same earth potential.
Frame size 1 Use screws M6 1.1
Frame size 2 Use screws M6 1.5
Frame size 3 Use screws M6 3.0
200
220
()+3
244
60
30
170
120
80
40
200
250
220
(+3)
196
138
2
1
kg
kg
125
200250
220
(+3)
90
205
138
3
