middle rib
Retention rib
Inserting hole
Step1-
A
im and insert the 4
retention ribs of the
DIN Rail at the 4
holes in rear panel
of inverter
Step2-
Push the DIN Rail
forward until the
middle rib grips
firmly with back
panel
Step1-
Use a small
screwdriver
inserting it into the
middle rib of DIN
Rail and press the
screwdriver in
order to remove
the DIN Rail from
inverter
A mounting clamp and a 35mm width rail must be used to install the drive on the rail
Installing drive
Dismounting drive
1 Pull the mounting plate downward.
2 Rotate the inverter module to dismount it.
First place the groove on the back of the
module on the upper edge of din rail,
and then push the module down to lock
up position. Finally press the mounting
plate upward into module.

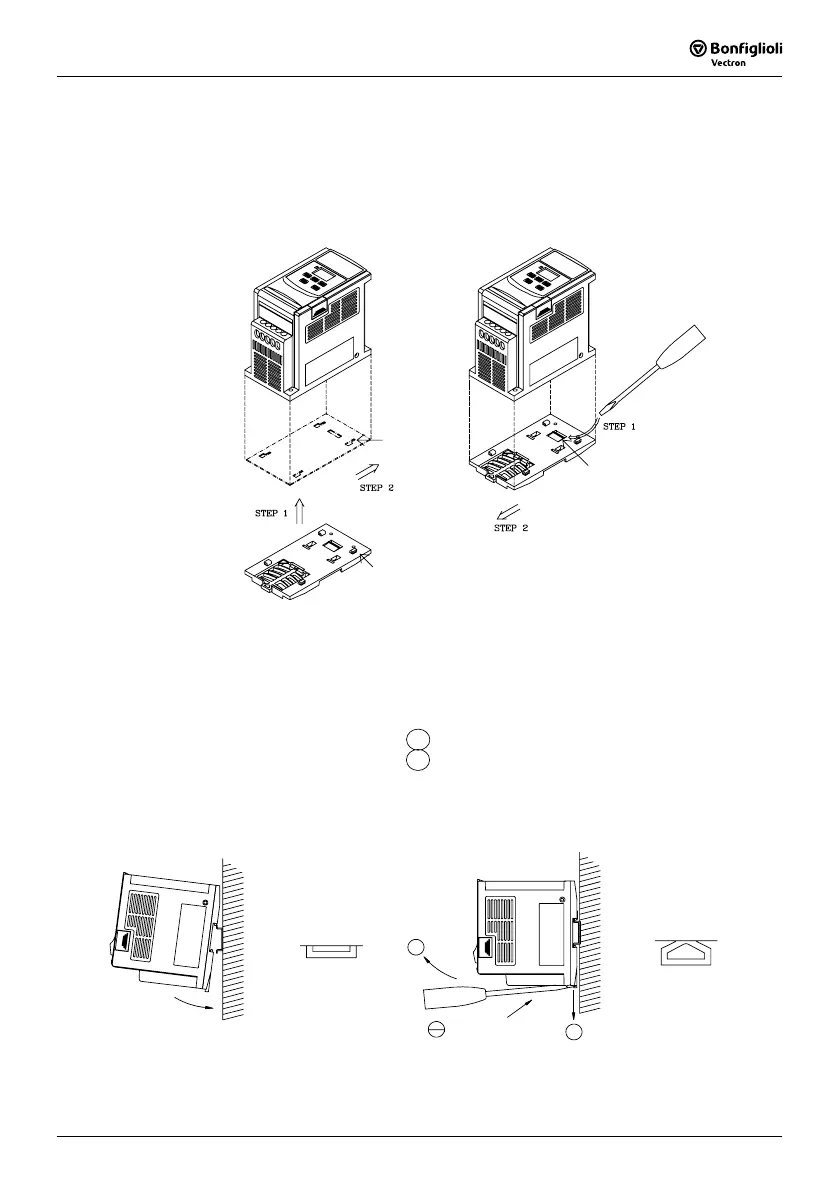

Din rail mounting diagram
Pull mounting plate
Mounting plate
Additional DIN rail installation
