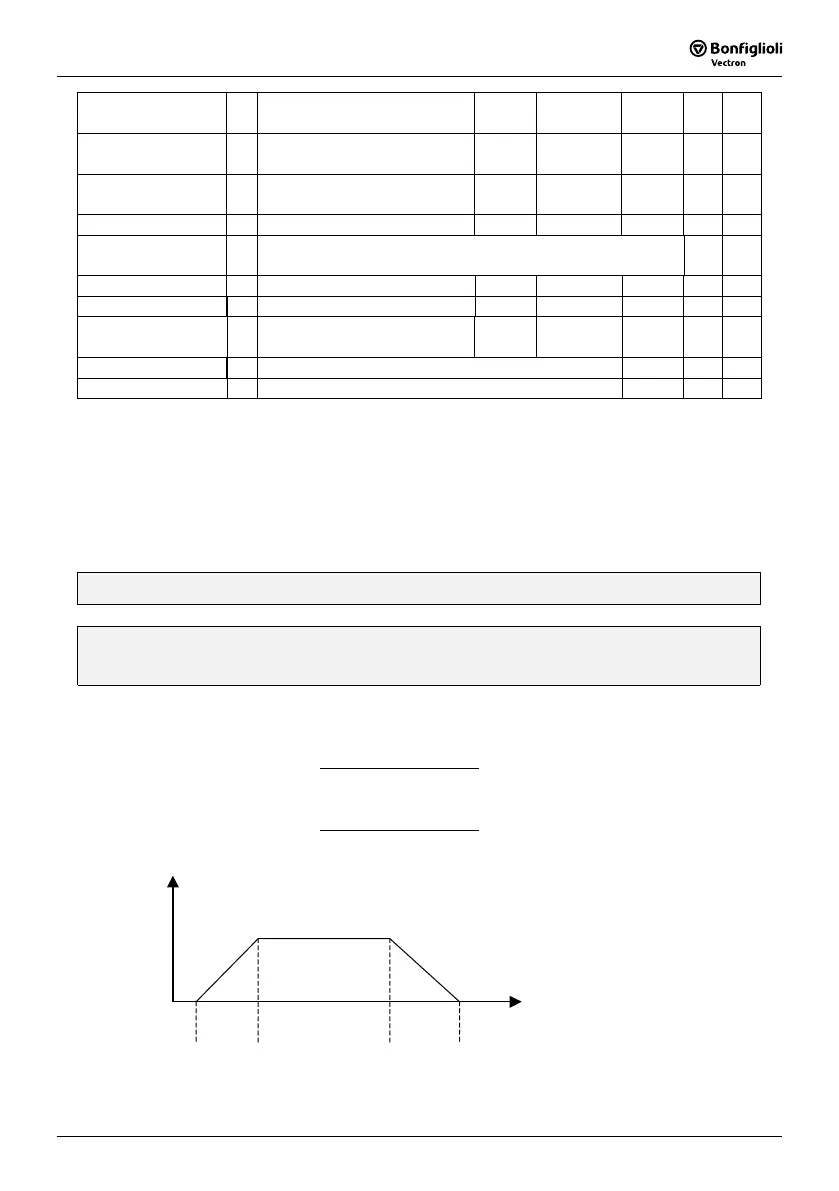

Function F_
Function Description
Unit Range
Factory
setting
Page Note
Reverse Lock-Out
22 0: REV run
1: REV run Lock-Out
1 0 ~ 1 0 40
Momentary power
loss
23 0: enabled
1: disabled
1 0 ~ 1 0 41
Auto restart 24 Number of Auto-restart times 1 0 ~ 5 0 41
Factory setting
25 010: Constants initialization to 50Hz system
020: Constants initialization to 60Hz system
42 *2
SP2 frequency 26 SP2 frequency 0.1Hz 1.0~200Hz 20 42
SP3 frequency 27 SP3 frequency 0.1Hz 1.0~200Hz 30 42
Direct start
28 0:enable
1:disable
1 0 ~ 1 1 42 *4
Software version 29 CPU program version 42
Fault Log 30 Fault log for three faults. 42
NOTE:
*1: Indicate this parameter can be adjusted during running mode.
*2: Please refer to F_25.
*3: If the setting range is above 100, the setting unit becomes 1.
*4: New function for CPU version v2.1 and above
Parameter function description
F_00 Factory adjustment parameter. Do not change.
F_01 : Acceleration time = 0.1 ~ 999 sec
F_02 : Deceleration time = 0.1 ~ 999 sec
1. Acceleration / Deceleration time calculation formula:
Setting Frequency Accelerate time = F_01 x
50 Hz
Setting Frequency Decelerate time = F_02 x
50Hz
F_01 F_02
Hz
Time
