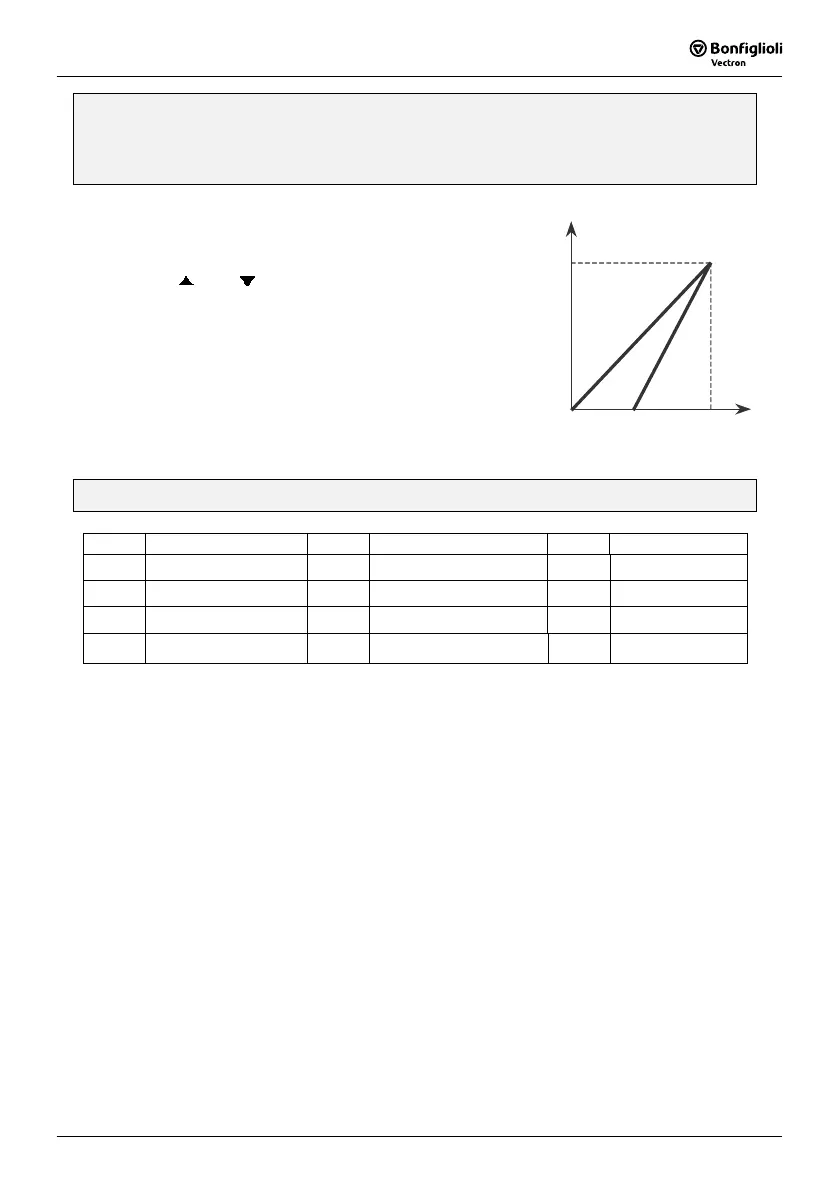

F_11: Speed Control
= 0: Keypad
= 1: Analog Speed Pot Terminal (TM2) (0 ~ 10V / 0-20mA)
= 2: ( 4-20mA ) (TM2)
NOTE 1:
When jog frequency or Sp1 frequency is
switched on, the frequency is setup by Sp1
speed, the
and
buttons on the keypad is
disabled.
Original setting will be restored after the Sp1
connection is removed.
NOTE2:
During the contact closure of the jog function,
the keypad control remains in a sleep state until
the jog contact connection is re-opened.
F_12: Carrier Frequency = 1 ~ 10
F_12 Carrier frequency F_12 Carrier frequency F_12 Carrier frequency
1 4 kHz 5 8 kHz
9
15 kHz
2 5 kHz 6 10 kHz
10
16 kHz
3 6 kHz 7 12 kHz
4 7.2 kHz 8 14.4 kHz
NOTE If F_12=7~10,the inverter must operator with low load.
Although an IGBT TYPE inverter can provide a low audible noise level during its operation, it is
possible that the switching of the high carrier frequency may interfere with external electronic
components (or other controllers) or even cause vibration in the motor. Adjusting the carrier
frequency can usually correct this problem.
F
_
06
0mA
0V
4mA
20mA
10V
F_11=1
F_11=2

BONFIGLIOLI Vectron Syn10 S115 01 Specifications

General

Category	Controller
Model	Vectron Syn10 S115 01
Frequency range	50/60 Hz
Protection class	IP20
Communication interface	CANopen
Relative humidity	< 95 % (non-condensing)
