23
&'(
)'*+
(",'-
)'*+
&/
.*
1!
8 9+:

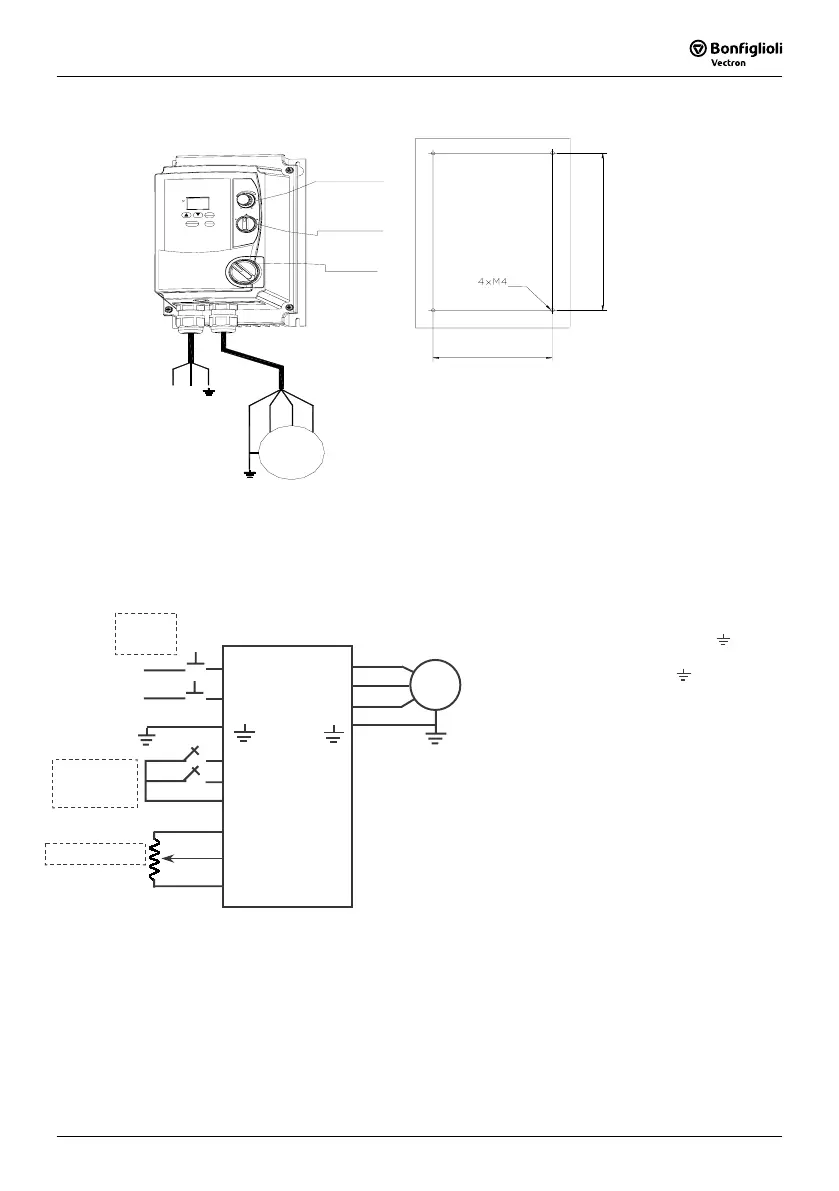

SYN 10 S 220 01/03/05 IP65 S (NEMA4) TYPE INSTALLATION:
NOTE:
1. POWER SWITCH, REV-0-FWD SWITCH AND
Potentiometer are only SYN 10 S 220 01/03/05 IP65 S TYPE
2. Power supply cable: # 14 AGE (2.0 mm
2
)
3. Motor cable: # 16 AGE (1.25 mm
2
)
4. Torque value of Screw:
(1). Power/Motor cable (plug in) Therminal: 5kg-cm (4.34 in-lb)
(2). Remote control wire: 4kg-cm (3.47 in-lb)
(3). Outer Cover (M4): 6kg-cm (5.20 in-lb)
CIRCUIT DIAGRAM
NOTE:
(1). Input source: single-phase (L1,L2, )ensuring
that it is connected to a 200/240V supply.
(2). Output Moter: three-phase ( ,T1,T2,T3).
Caution:
- Do not start or stop the inverter using the
main circuit power.
- FOR SYN 10 S 220 01/03/05 IP65 S TYPE
Please always remain REV-0_FWD switch at 0
position. In order to keep inverter has no
running signal before power-on again after
power supply interrupted. Otherwise, injury may
result.
- FOR SYN 10 S 220 01/03/05 IP65 TYPE
Please always remain RE or FW switch at OFF
position. In order to keep inverter has no
running signal before power-on again after
power supply interrupted. Otherwise, injury may
result.
3
Phases
IM
To Next Page
