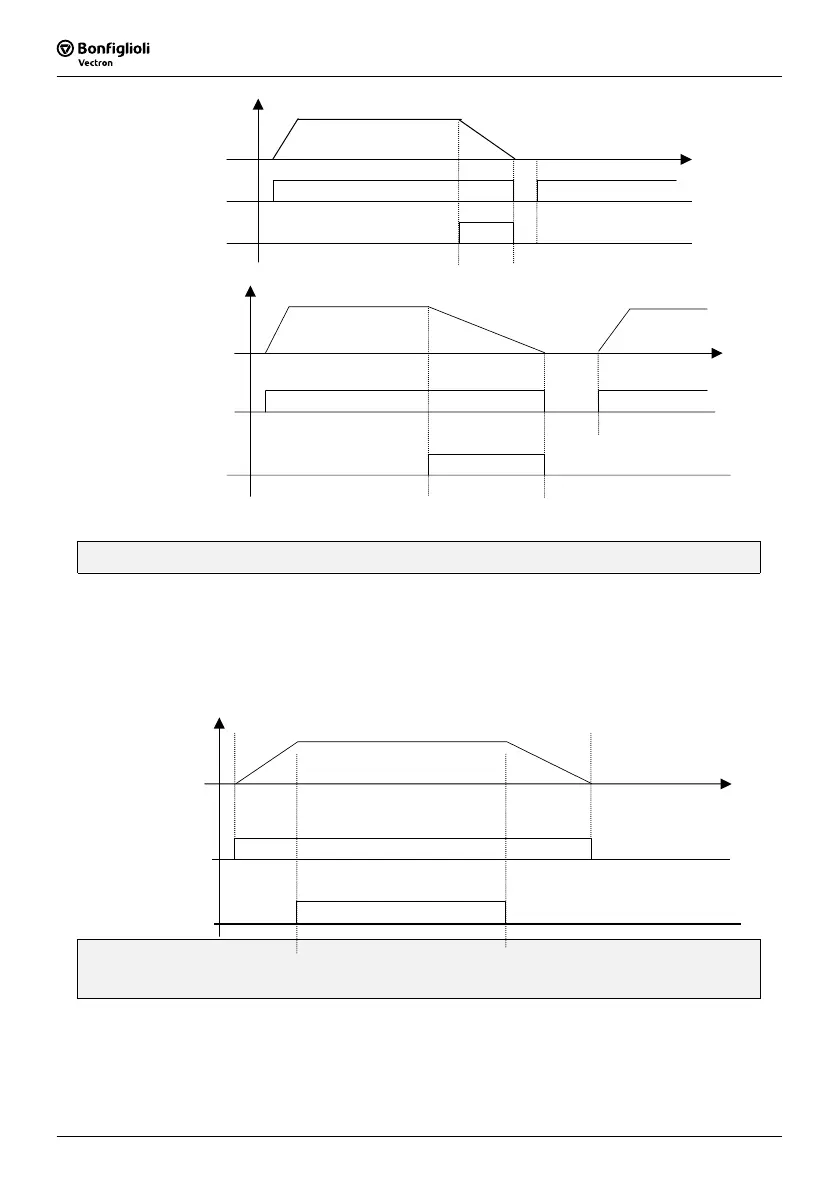

Time
Run/Stop on off on
F_19=3 off on
F_02
Hz
Time
Run/Stop on off on
F_20=4 off on
5. F_19, F_20 = 5: Auto Reset when inverter faults.
F_21: Multi-function output terminal control = 1 ~ 3
1. F_21 = 1: Run mode signal
2. F_21 = 2: At Frequency Speed Signal
3. F_21 = 3: Fault signal
Terminal1 and2 of TM2 are activated at CPF, OL1, OL2, OCS, OCA, OCC, Ocd , Ocb , OVC ,
LVC , OHC.
Hz
Time
Time
F_21=1
Terminal 1 & 2 on
F_21=2
Terminal 1 & 2 on
F_22: Reverse Lock-Out = 0: REV command
= 1: REV command Lock-out
NOTE:
When F_04 is set to 1 (reverse), F_22 cannot be set to 1, in order to properly lockout
a motors direction, F_04 must be set at 0 before setting F_22 to 1.

BONFIGLIOLI Vectron Syn10 S115 01 Specifications

General

Category	Controller
Model	Vectron Syn10 S115 01
Frequency range	50/60 Hz
Protection class	IP20
Communication interface	CANopen
Relative humidity	< 95 % (non-condensing)
