Boonton 4540 Series RF Power Meter
Operation
4.5.52 System > Sensor Data Menu
This menu provides information about the characteristics and conditions of the sensors plugged into Channel 1 and Channel 2
(in the Model 4542 only).
Main Pg 2 > System > Sensor Data > Sensor 1 Info
Description: See a typical peak sensor report below.
Menu Type: Action.
SCPI Command: None
Main Pg 2 > System > Sensor Data > Sensor 1 Details
Description: Similar to Snsr 1 Info but more detailed with raw data dumps. Used by technicians for
troubleshooting purposes. NOT ILLUSTRATED.
Menu Type: Action.
SCPI Command: None

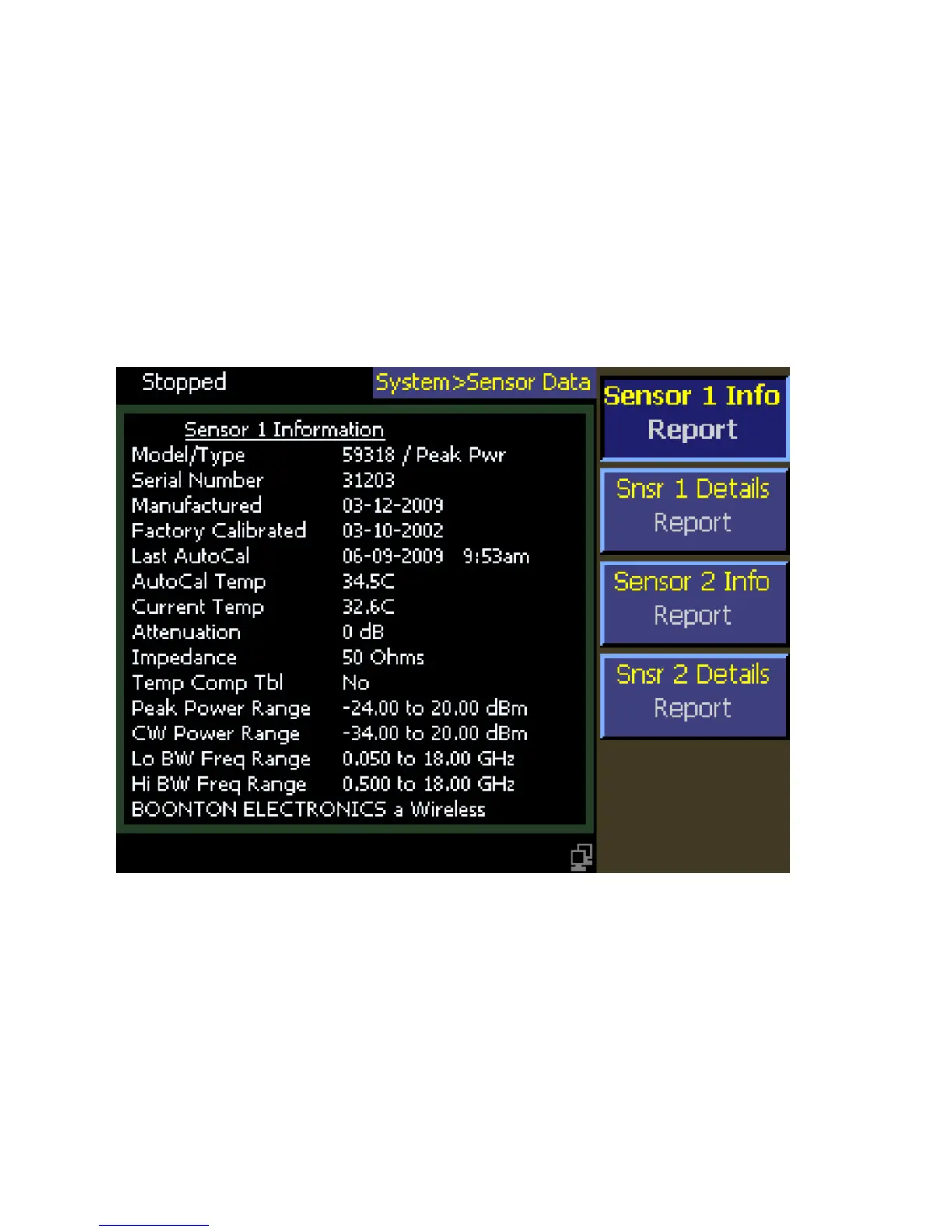

Fig. 4-69 Sensor Data Report for Sensor 1
