Hold the housing base with one hand [3].
Open both locks on the rear [4].
Open both front locks [1].
Remove the housing base [3].
Clean the air guiding housing [2] and the housing base
[3] with a mild cleaning agent.
8.5.2 Closing the air guiding housing
1
2
3
4
5

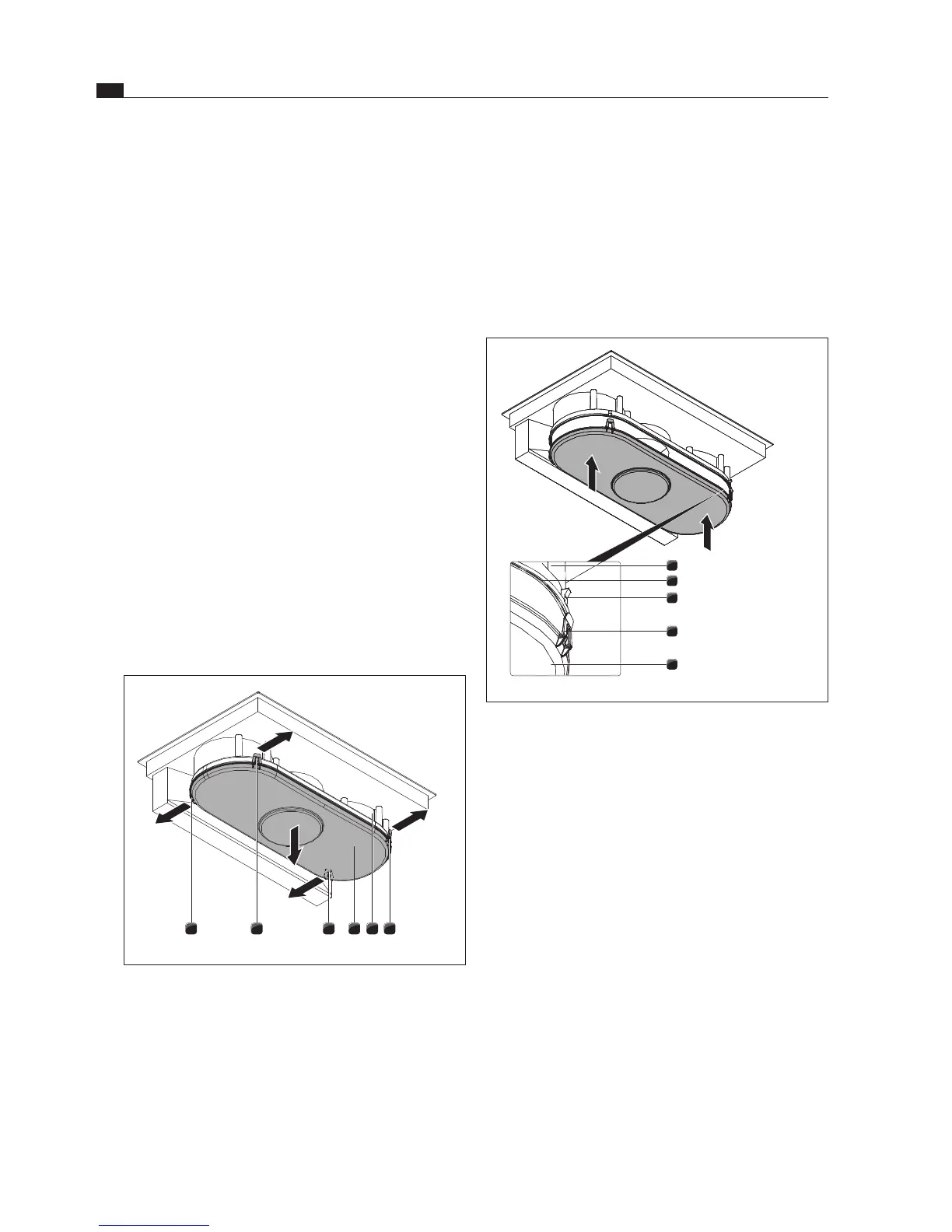

Fig. 8.4 Closing the air guiding housing
[1] Air guiding housing
[2] Sealing groove
[3] Hooks
[4] Locking strop
[5] Housing base
Using both hands, position the housing base [5] so
that the position of the locking straps [4] on the hous-
ing base match the position of the hooks [3] on the
housing.
Insert the housing base at the sealing groove [2] of the
air guiding housing [1].
Press the housing base [5] upwards until the 4 locks
(2 front, 2 rear) engage into the hooks [3].
Check that all 4 locking straps [4] have correctly
engaged.
8.4.3 Installing stainless steel grease filter
and air inlet nozzle
Grab the stainless steel grease filter using the handle
[2] (Fig. 7.2)
Insert the stainless steel grease filter [1] into the suc-
tion opening.
Make sure that the stainless steel grease filter rests
against the bottom housing base. A lock is not needed
and is not provided.
Reach into the access opening [2] of the inlet nozzle
with your hand (Fig. 7.1).
Insert the air inlet nozzle (Fig. 7.1; [1]) centrally into
the suction opening.
Press the air inlet nozzle upwards until it engages.
8.5 Cleaning the air guiding housing
Greasy deposits and limescale residues from the cooking
vapour can accumulate on the surface of the air guiding
housing. Regular, thorough cleaning (see Table 7.1) is thus
necessary.
The air guiding housing is on the underside of the cooktop
in the floor unit.
8.5.1 Opening the air guiding housing
Make sure that the cooktop and cooktop extractor are
switched off (see Operating chapter).
Wait until the fan display is 0.
4 41 13 2
Fig. 8.3 Opening the air guiding housing
[1] Front locks
[2] Air guiding housing
[3] Housing base
[4] Rear locks
