Position the new activated charcoal filter [2] in such a
way that the directional arrow is pointing to the rear
and is visible from below.
Move the activated charcoal filter into the housing.
Press the activated charcoal filter upwards until the fil-
ter retainer [1] engages.
1
1 12
click
click
click

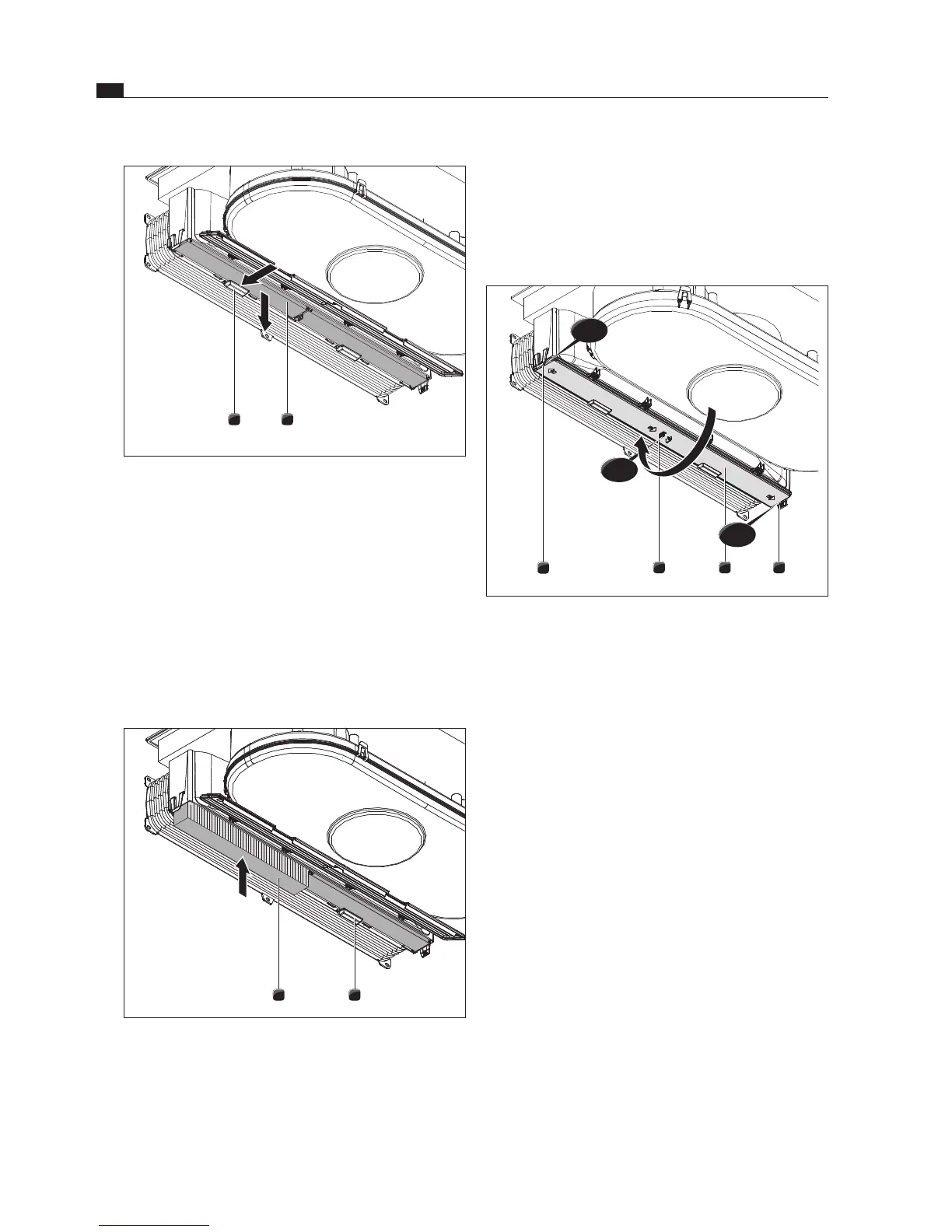

Fig. 8.10 Closing the activated charcoal lter housing lid
[1] Locks
[2] Activated carbon filter housing cover
Fold the activated charcoal filter housing lid [2] by
moving up upwards.
Press on the activated charcoal filter housing lid until
the locks [1] engage.
2 1
Fig. 8.8 Removing the activated carbon lter
[1] Activated charcoal filter
[2] Filter bracket
Hold the activated charcoal filter with one hand [1].
Push the filter retainer [2] to the back.
Remove the activated charcoal filter by moving it
downwards.
Dispose of used activated charcoal filters with house-
hold waste.
Inserting the activated charcoal filter
2 1
Fig. 8.9 Inserting the activated charcoal lter
[1] Filter bracket
[2] Activated charcoal filter
