19. SMART GUARD SYSTEM
Consists of three key elements: Adjustable (3 position) Riving
Knife, Anti-Kickback Device, and Barrier Guard Device. All of these
are part of a modular system that requires no tools to assemble or
unassemble. This Guard System must always be in place and
working properly for all thru-sawing cuts.
20. SMART GUARD SYSTEM STORAGE
W
hen not in use, the Main Barrier Guard and Anti-Kickback
Device can be stored under the right side table extension.
2
1. TABLE INSERT
Removable for removing or installing blade or other cutting tools.
22. DIGITAL CARRIAGE (MODEL 4100DG-09 ONLY)
Provides a digital readout for fence settings with consistent
accuracy and precision measurements.
23. PUSH STICK
Allows you to rip smaller pieces of stock with a greater level of
safety.

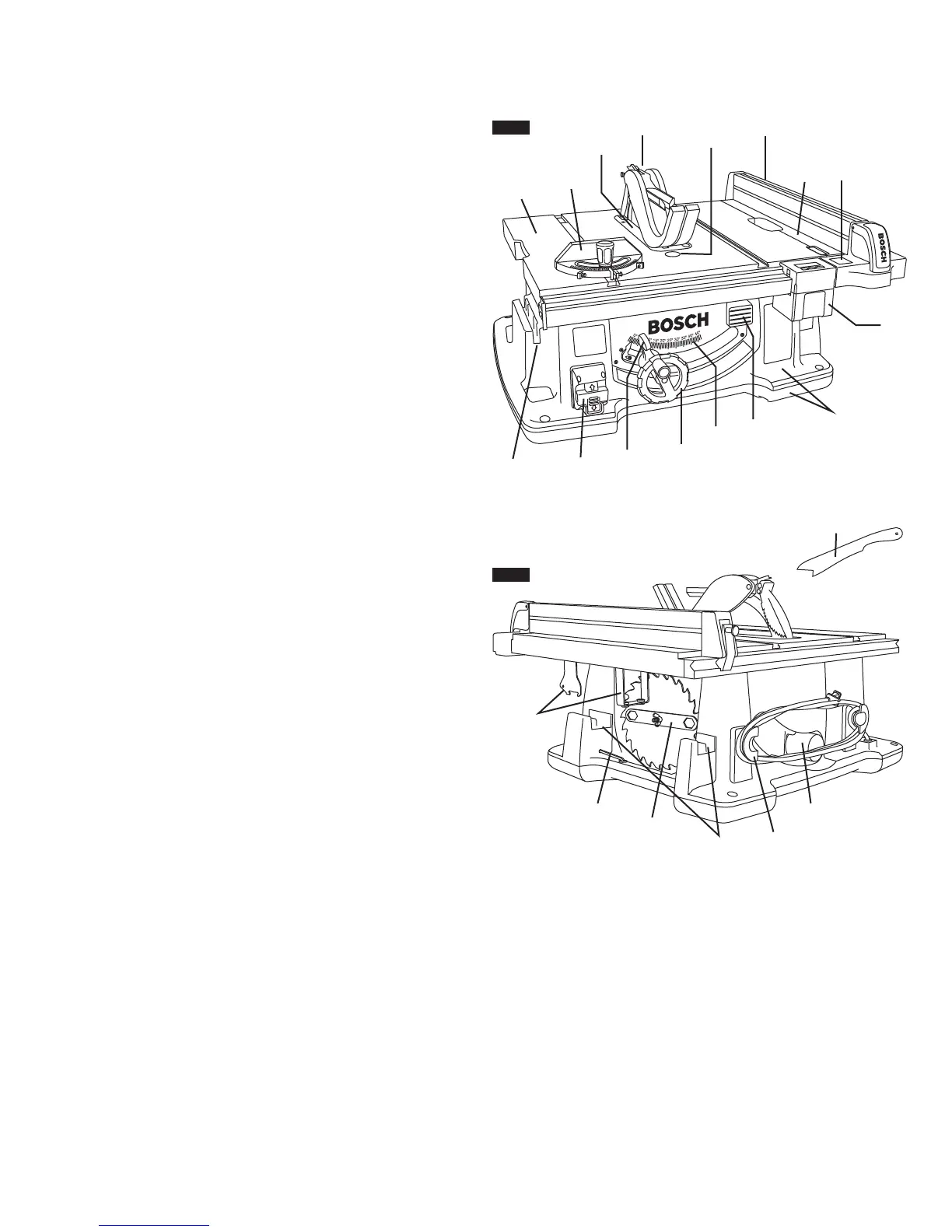

Getting To Know Your Table Saw
13
22
3
7
1
4
11
8
19
2
10
18
21
FIG. 1
FIG. 2
14
16
17
9
6
23
12
5
15
20
