Bosch 4310 - Slide Action Adjustment

-18-
39DBC<4=CB
Disconnect plug from power
source before performing any as-
sembly, adjustment or repair to avoid possible injury.
(;8342C8>=39DBC<4=C

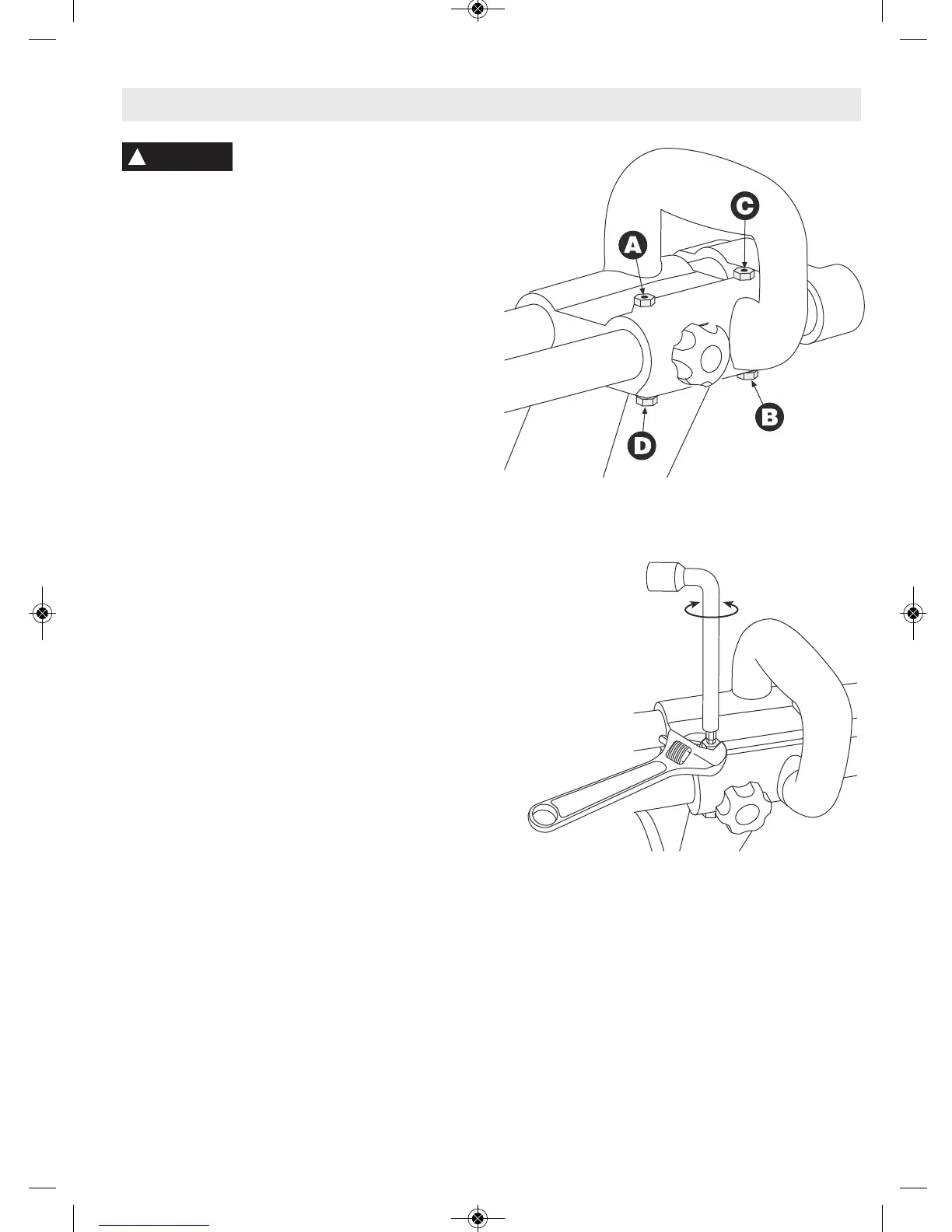

1. Locate the 4 Set Screws (A, B, C, & D) on the
Rail Guide Housing. (Figure 14)
2. Loosen the Nut on Set Screw (A) with an ad-
justable wrench.
3. Tighten or loosen Set Screw (A) with the 4mm
end of the bit on the multi-purpose tool until you
achieve minimal slide play while maintaining the
desired sliding force.
4. After adjusting Set Screw (A), hold Set Screw
(A) with a 4mm allen key and tighten the nut with
an adjustable wrench without moving the Set
Screw. (Figure 15)
5. Complete steps 2-4 with the remaining set
screws in order as shown in figure 14.
!
WARNING
86DA4(4C(2A4FB
86DA439DBC0=3)867C4=(4C(2A4F
