1/4 Flat Head Machine Screw x 3 inch long
Board: 3/4 wide x 1-1/2 high
5/16 Inch Hole Through
1/2 Inch Countersink
Flat Washer
Nut
3/4"
Assembled
3/4"
3-3/4"
6-3/4"

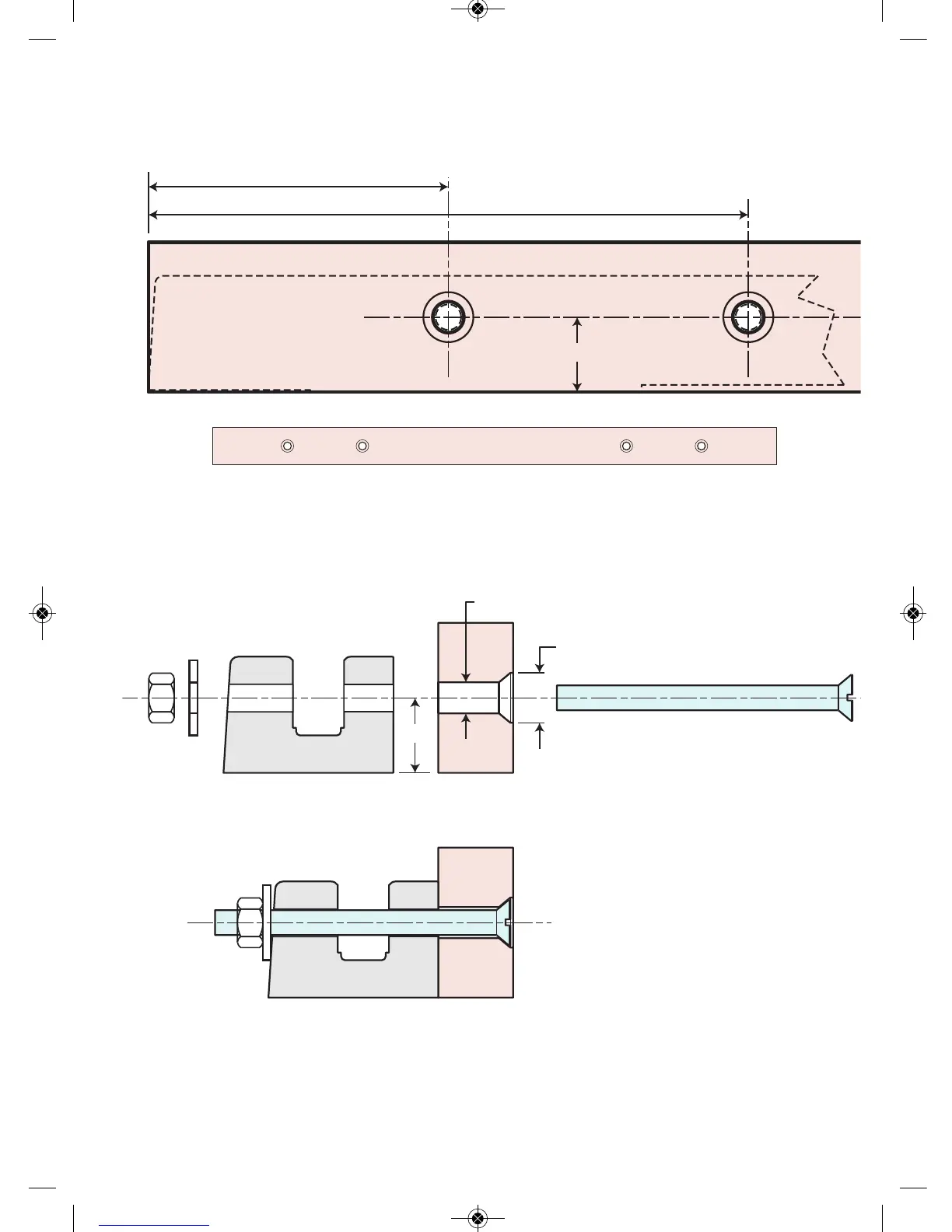

Drill 4 holes - 2 as shown from left edge (as shown) and 2 from right edge
Stationary Fence on To ol
Stationary Fence on To ol
Wood Board
