Getting Started
/
/
/
\

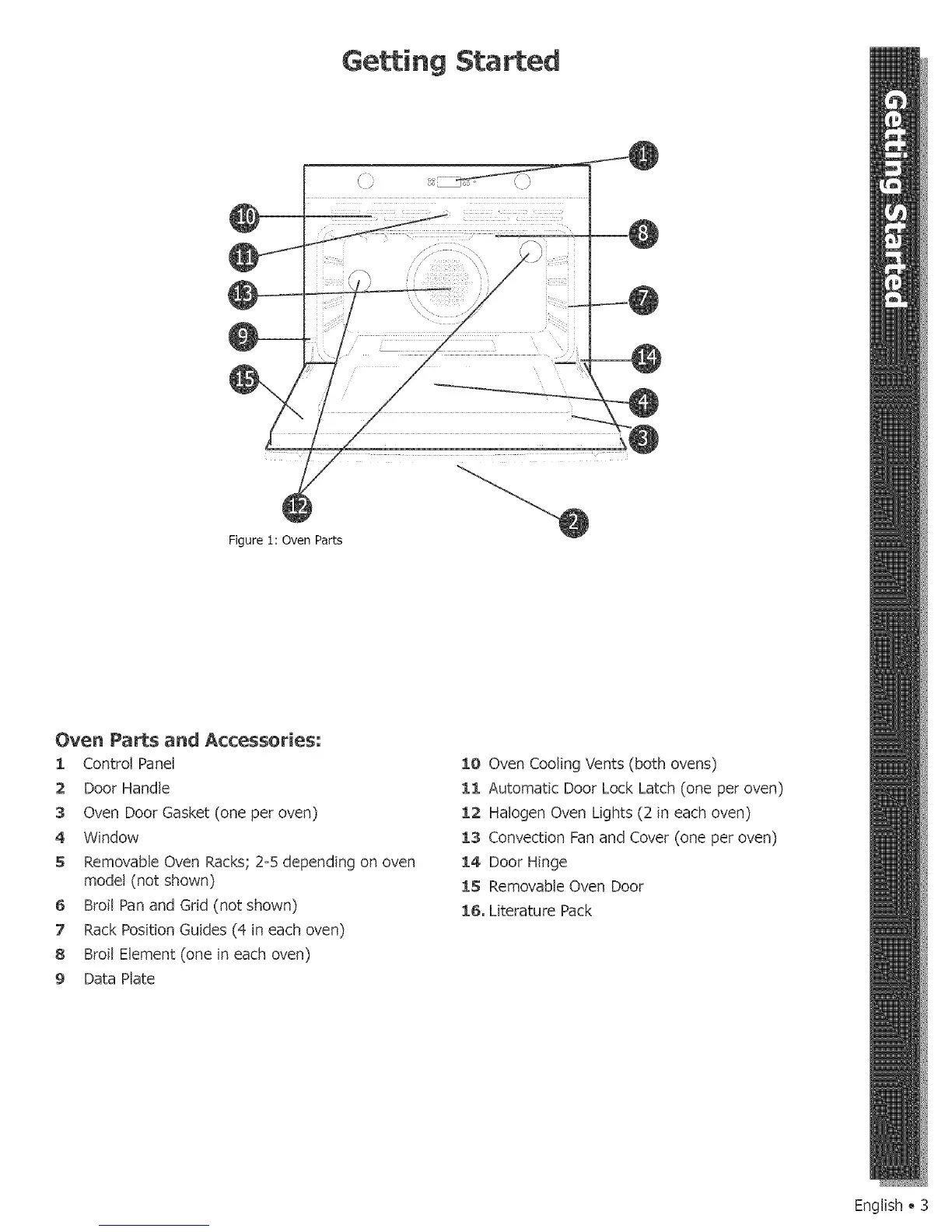

Figure 1: Oven Parts
Oven Parts and Accessories:
1 Control Panel
2 Door Handle
3 Oven Door Gasket (one per oven)
4 Window
5 Removable Oven Racks; 2-5 depending on oven
model (not shown)
6 Broil Pan and Grid (not shown)
7 Rack Position Guides (4 in each oven)
8 Broit Element (one in each oven)
9 Data Plate
10 Oven Cooling Vents (both ovens)
11 Automatic Door Lock Latch (one per oven)
12 Halogen Oven Lights (2 in each oven)
13 Convection Fan and Cover (one per oven)
14 Door Hinge
15 Removable Oven Door
16. Literature Pack
English _ B
