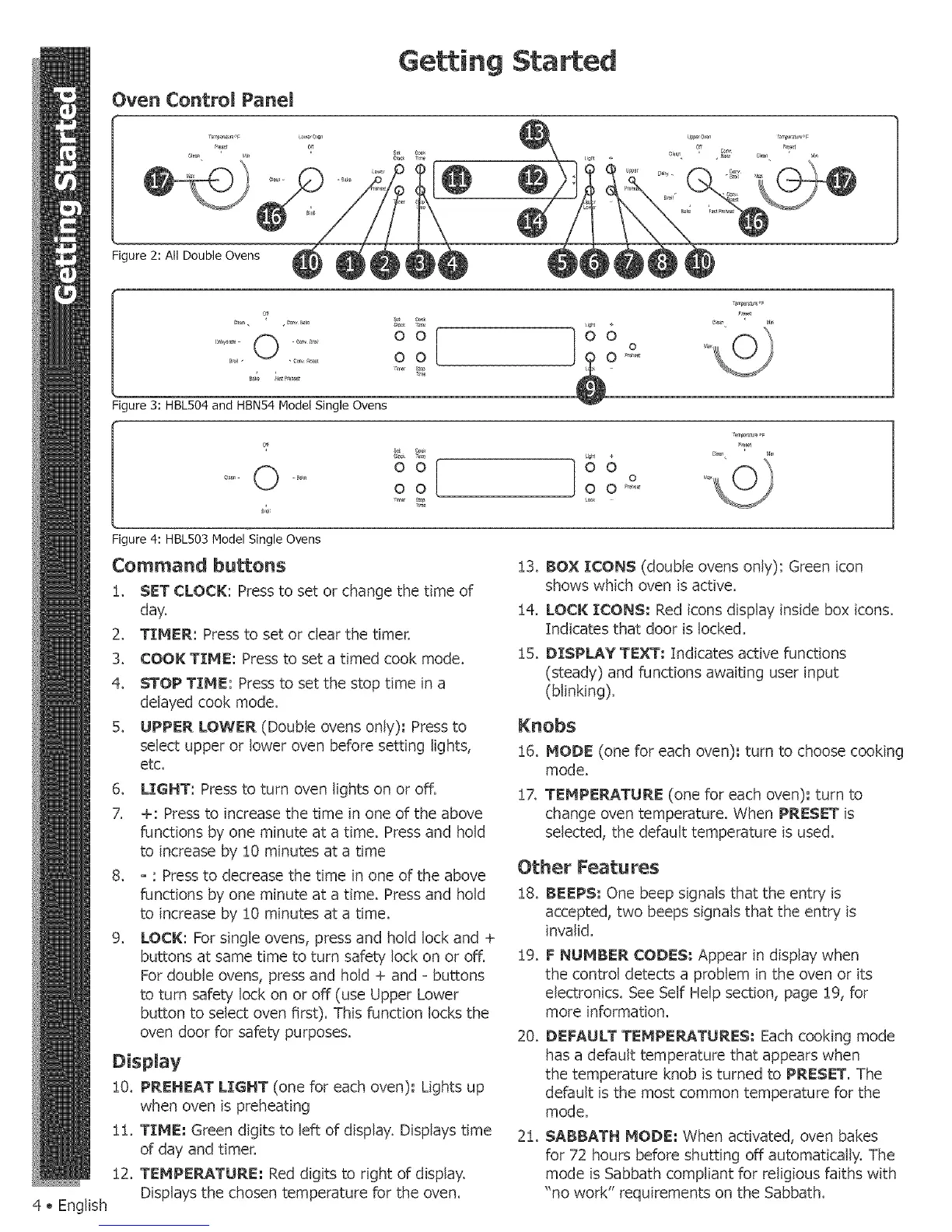

Bosch 5000 Series - Oven Control Panel; Command Buttons; Display; Knobs

Figure 2: All Double Ovens
Getting Started
ol_k
Figure 3:HBL504 and HBN54 Model Single Ovens
u_ht
4 _ English
o o
O B_
o o
OO o
O O ......
to,
Figure 4:HBL503 Model Single Ovens
Command b ttons
:[. SET CLOCK: Press to set or change the time of
day.
2. TI_ER: Press to set or clear the timer.
3. COO!(TIME: Press to set a timed cook mode.
4. STOP TI_E: Press to set the stop time in a
delayed cook mode.
5. UPPER LOWER (Double ovens only): Press to
select upper or lower oven before setting lights,
etc.
6. LIGHT: Press to turn oven lights on or off.
7. +: Press to increase the time in one of the above
functions by one minute at a time. Press and hold
to increase by :[0 minutes at a time
8. o : Press to decrease the time in one of the above
functions by one minute at a time. Press and hold
to increase by :[0 minutes at a time.
9. LOCK: For single ovens, press and hold lock and +
buttons at same time to turn safety lock on or off.
For double ovens, press and hold + and - buttons
to turn safety lock on or off (use Upper Lower
button to select oven first). This function locks the
oven dOOrfor safety purposes.
Display
:[0. PREHEAT LIGHT (one for each oven): Lights up
when oven is preheating
:[:[. TIHE: Green digits to left of display. Displays time
of day and timer.
:[2. TEMPERATURE; Red digits to right of display.
Displays the chosen temperature for the oven.
:[3. BOX ICONS (double ovens only): Green icon
shows which oven is active.
:[4. LOCK ICONS: Red icons display inside box icons.
Indicates that door is locked.
:[5. DISPLAY TEXT: Indicates active functions
(steady) and functions awaiting user input
(blinking).
Knobs
:[6. _OD_ (one for each oven): turn to choose cooking
mode.
:[7. TEMPERATURE (one for each oven); turn to
change oven temperature. When PRESET is
selected, the default temperature is used.
Other Features
:[8. BEEPS: One beep signals that the entry is
accepted, two beeps signals that the entry is
invalid,
:[9. F HU_B_R COD_S; Appear in display when
the control detects a problem in the oven or its
electronics. See Self Help section, page :[9, for
more information.
20. DEFAULT TEMPERATURES: Each cooking mode
has a default temperature that appears when
the temperature knob is turned to PRESET. The
default is the most common temperature for the
mode.
2:[. SABBATH MODE: When activated, oven bakes
for 72 hours before shutting off automatically. The
mode is Sabbath compliant for religious faiths with
"no work" requirements on the Sabbath.
