582819 | REV. A | 07.2018
Bosch Automotive Service Solutions Inc
ADS 325
|
User Manual
|
31
|
en

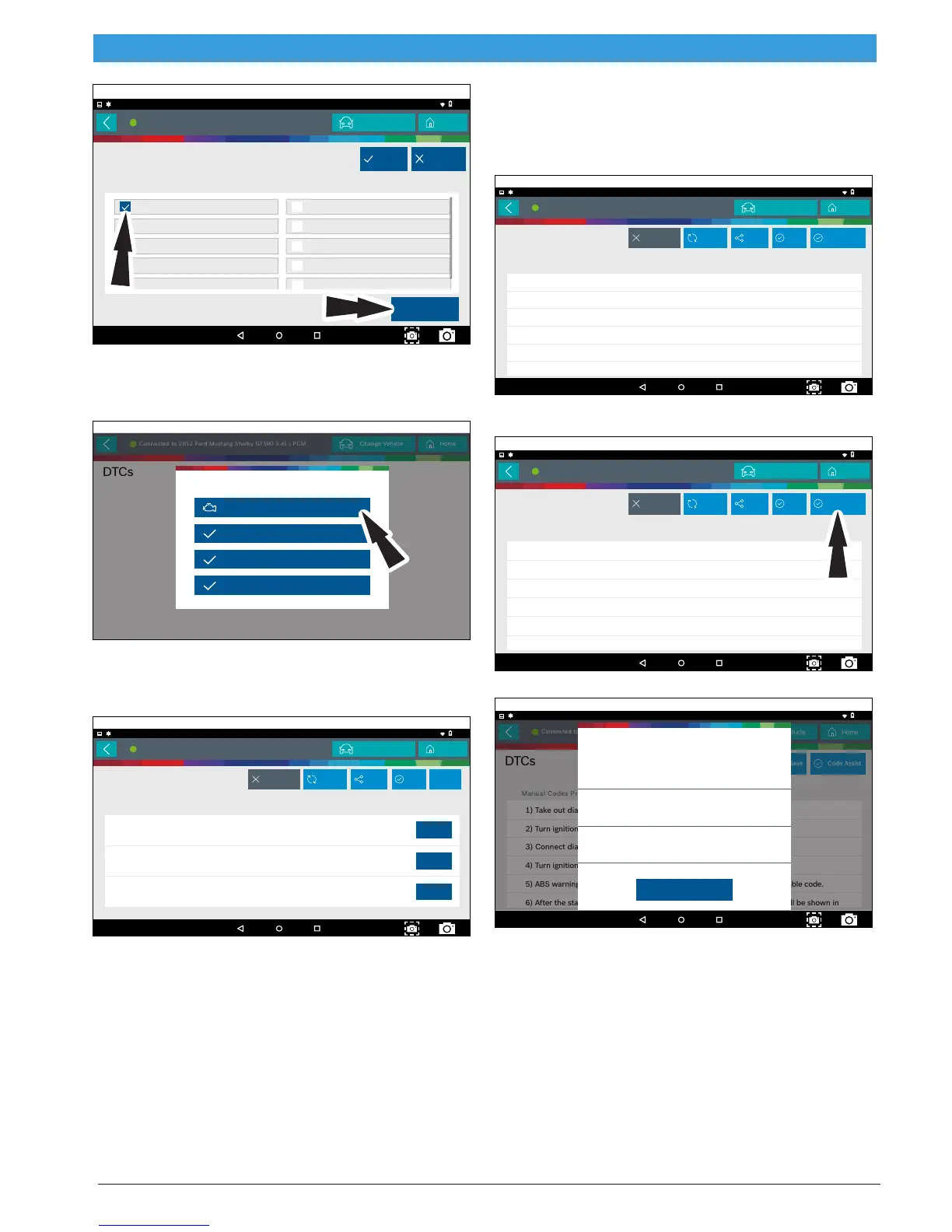

Read DTCs
Please select one or more controllers and tap 'Continue' to
start DTC scan.
11:41
Connected to 2012 Ford Mustang Shelby GT500 5.4L
FRONT CONTROLS INTERFACE MODULE
AUDIO CONTROL MODULE
GEM MODULE / TPMS
PCM
OCCUPANT CLASSIFICATION
BODY CONTROL MODULE
AIRBAG
ABS / TRACTION CONTROL
ACCESSORY PROTOCOL INTERFACE
FRONT DISPLAY INTERFACE MODULE
Change Vehicle
Home
Select All Deselect All
Continue
ss03138
2. Select the desired vehicle controller then select
continue.
DTCs
Connected to 2012 Ford Mustang Shelby GT500 5.4L | PCM
Change Vehicle
Home
Select Option
Read DTCs
KOEO
KOER
Reset KAM
ss03139
3. Tapping an option in the menu takes the user to that
test. Follow the prompts on the screen.
DTCs
11:42
B10A2-00
B1200-00
B1207-00
Crash Input
Crash Input Mismatch - CAN
Inactive Hardwired Active
Crash Input Hardwired Signal
RefreshClear DTCs Share Save Self Diag
Details
Details
Details
Connected to 2012 Ford Mustang Shelby GT500 5.4L | PCM
Current Codes
Change Vehicle
Home
ss03140
4. DTCs will be read from the selected vehicle control-
ler.
• Select a listed DTC for Related Diagnostic Infor-
mation See Diagnostic Information section
• If a DTC has Code Criteria available there will be
an “*” next to the DTC.
Manual DTCs
Certain vehicles do not support standard DTC protocol
and will require a manual process for retrieving and
clearing codes.
DTCs
11:44
1) Take out diagnosis connector from side of driver’s seat heater unit.
2) Turn ignition switch Off.
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in
RefreshClear DTCs Share Save
Connected to 2002 Subaru Forester Base 2.5L | ABS
Manual Codes Procedure
Code Assist
Change Vehicle
Home
ss03141
1. Follow the prompts on the screen for retreiving DTCs.
DTCs
11:44
1) Take out diagnosis connector from side of driver’s seat heater unit.
2) Turn ignition switch Off.
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in
RefreshClear DTCs Share Save
Connected to 2002 Subaru Forester Base 2.5L | ABS
Manual Codes Procedure
Code Assist
Change Vehicle
Home
ss03142
2. Select Library button.
DTCs
11:44
1) Take out diagnosis connector from side of driver’s seat heater unit.
2) Turn ignition switch Off.
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in
RefreshClear DTCs Share Save
Connected to 2002 Subaru Forester Base 2.5L | ABS
Manual Codes Procedure
Code Assist
Change Vehicle
Home
DTCs
11
21
22
23
Start Code: Trouble Code Is Shown
After Start Code Only Start Code Is
Shown In Normal Condition
Abnormal ABS Sensor (Open Circuit Or
Input Voltage Too High) - Front Right
ABS Sensor
Abnormal ABS Sensor (Open Circuit Or
Abnormal ABS Sensor (Abnormal ABS
Sensor Signal) - Front Right ABS
Sensor
Close
ss03143
3. Follow the prompts on the screen.
To Next Page
