DTCs
11:44
1) Take out diagnosis connector from side of driver’s seat heater unit.
2) Turn ignition switch Off.
3) Connect diagnosis connector terminal 6 to diagnosis terminal.
4) Turn ignition switch On.
5) ABS warning light is set in the diagnostic mode and blinks to identify trouble code.
6) After the start code (11) is shown, the diagnostic trouble codes (DTC) will be shown in
RefreshClear DTCs Share Save
Connected to 2002 Subaru Forester Base 2.5L | ABS
Manual Codes Procedure
Code Assist
Change Vehicle
Home
ss03144

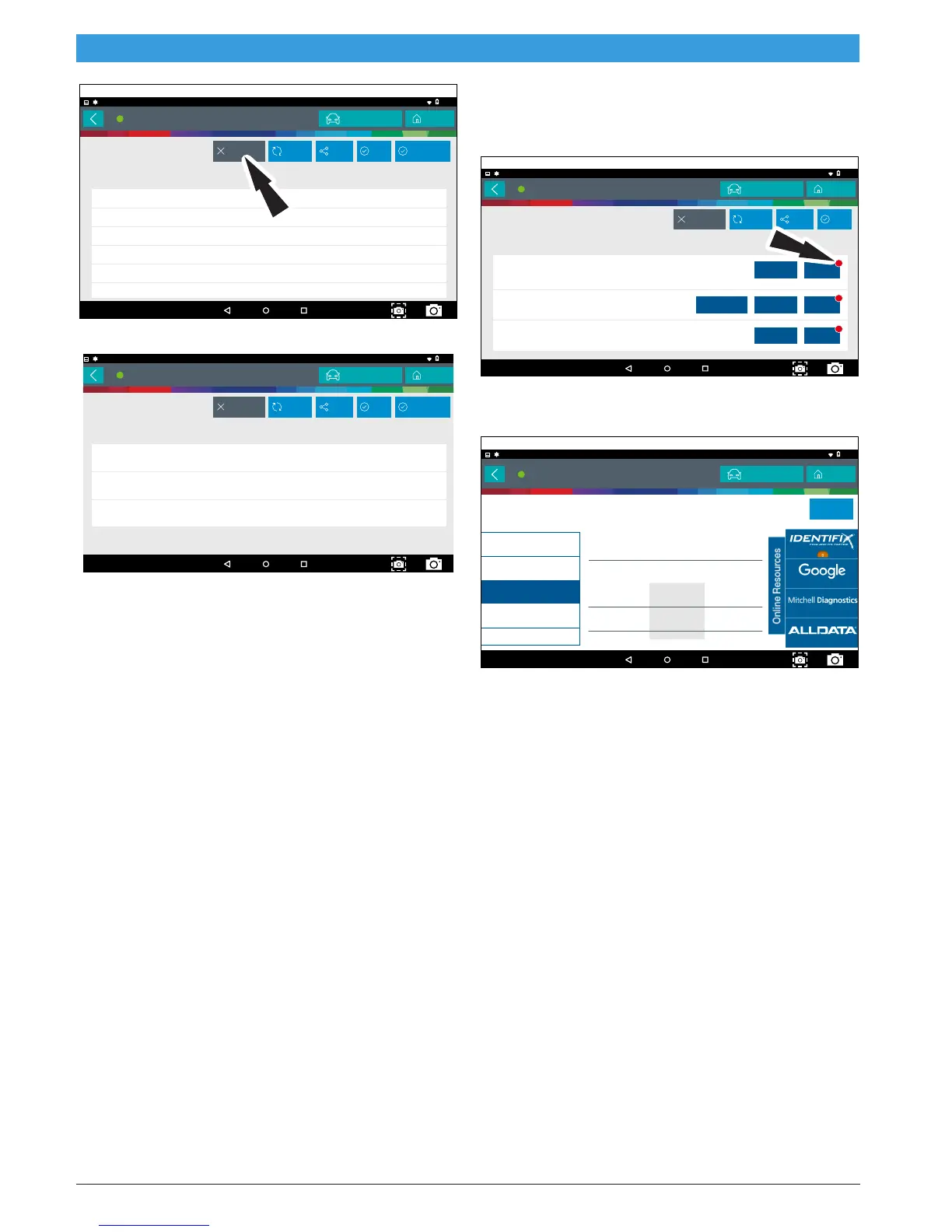

4. Select Clear DTCs button.
DTCs
11:52
1) After calling up a diagnostic trouble code (DTC), disconnect diagnosis connector terminal
6 from diagnosis terminal.
2) Repeat 3 times within approx. 12 seconds; connecting and disconnecting terminal 6 and
diagnosis terminal for at least 0.2 seconds each time.
3) NOTE: After diagnostics is completed, make sure to clear memory. Make sure only start
code (11) is shown after memory is cleared.
RefreshClear DTCs Share Save
Connected to 2002 Subaru Forester Base 2.5L | ABS
Manual Codes Procedure
Code Assist
Change Vehicle
Home
ss03145
5. Follow the prompts on the screen.
Code Criteria
Codes will be read from the selected controller and
displayed on the screen.
DTCs
11:53
P0016
P0101
P0102
Crankshaft Position (CKP) -
Camshaft Position (CMP)
Correlation
Mass Air Flow Sensor
Performance
Mass Air Flow Sensor Circuit
Low Frequency
RefreshClear DTCs Share Save
Details
DTC Status
DTC Status
Failure Record
DTC Status
Details
Details
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Fail Since Clear
Change Vehicle
Home
2
23
24
ss03146
If a DTC has code criteria available there will be an
indication in the upper right corner of the listed DTC.
P0101
11:54
Description
Code Assist
Action
Replaced
Replaced
Cleaned
Element
Description
Mass Air Flow Sensor Performance
PCM Pin
Location
Code Criteria
Code Assist
Help
?
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
Frsquently
Top Reported
Fixes
Top Reported
Fixes
Mass Air Flow
(MAF) Sensor
Mass Air Flow
Intake Manifold
Gasket(s)
ss03147
Detail
Detail allows the technician to find details related to a
given DTC.
Description
Displays the description associated with the selected
DTC.
Code Criteria
Provides information regarding how the DTC is set.
Code Assist
Provides information regarding the kind of action other
technicians found successful when faced with the same
DTC.
PCM Pin
Provides detailed information related to the actual pins
on the PCM that are associated with the selected DTC.
Location
Aids the technician in determining where on the vehicle
their attention should be directed.
