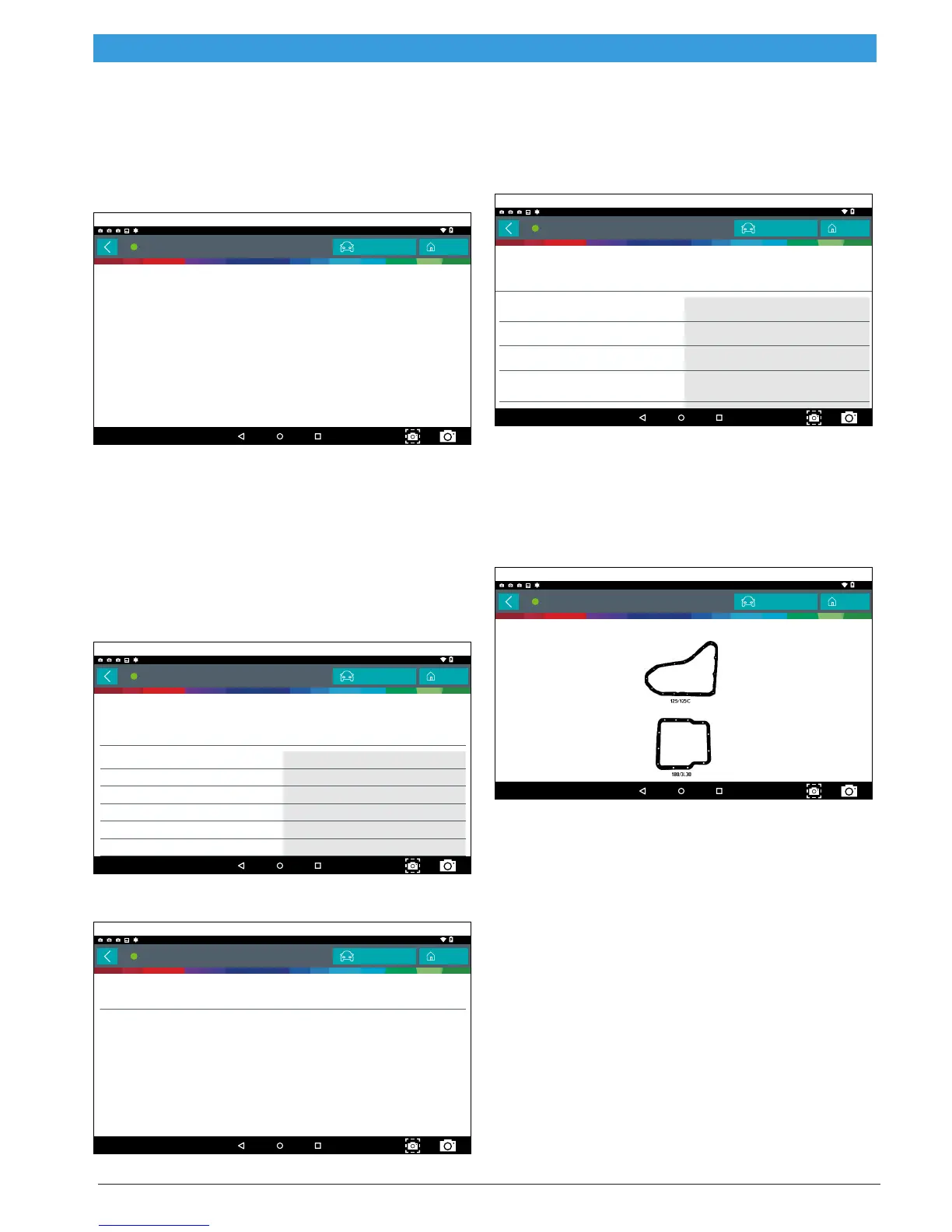

Oil Light Reset
On newer vehicles, the oil light reset procedure will
indicate how the oil life information can be reset after an
oil change.
1. Select Oil Light Reset from the Diagnostic Informa-
tion screen.
Oil Light Reset Procedures
1) Turn the ignition key to the RUN position.
2) Fully push and release the accelerator pedal 3 times within 5 seconds.
3) If the CHANGE OIL SOON light flashes, the system is resetting.
4) Turn the key to OFF.
5) Start the vehicle.
6) The oil life will change to 100%
12:32
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03193
2. Select Oil Light Reset from the Diagnostic Informa-
tion menu screen.
3. Follow the prompts on the screen to turn off the
indicator lamp.
PCM Connector Pin Information
Displays a list of which connector and pin a component
or sensor is received through on the PCM.
1. Select PCM Pin Information from the Diagnostic
Information screen.
PCM Pin
Pin Number
C1-1
C1-2
C1-3
C1-4
C1-7
C1-8
Description
Ground
12 Volt Reference
5 Volt Reference
5 Volt Reference
Fuel Injector 3 Control
Fuel Injector 2 Control
12:33
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03194
2. Scroll through the list and select the desired sensor
or component is listed.
PCM Pin
Connector:
Connector Color:
Pin Number:
Wire Color:
Description:
KOEO
C1
1
Blue
Black/White
Ground
N/A N/A
N/A N/A
12:33
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03195
Technical Service Bulletin (TSB) References
Displays TSBs associated with the vehicle/controller
combination.
1. Select TSB Reference from the Diagnostic Informa-
tion screen.
TSB Reference
TSB Number
02-09-41-001
01-07-30-002C
01-07-30-036C
01-07-30-038B
TSB Description
Computers & Controls - DTC’s Set When Replacing
Modules
Electrical - Malfunction Indicator Lamp ON / Automatic
Transmission Stuck in 3rd Gear
Automatic Transmission - Diagnostic Trouble Code
P0756 Diagnostic Tips
Automatic Transmission - 4L60-E / 4L65-E Malfunction
Indicator Lamp ON / Diagnostic Trouble Code P0757 /
Slipping
12:34
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03196
2. Scroll through the list until the desired TSB is found.
Trans Pan ID
Displays a list of gasket images that correspond to spe-
cific transmissions.
1. Select Trans Pan ID from the Diagnostic Information
screen.
GLOSSARY IMAGE
12:34
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03197
2. Scroll through the list of gasket images until the
matching gasket is found. Corresponding information
is listed below each image.
