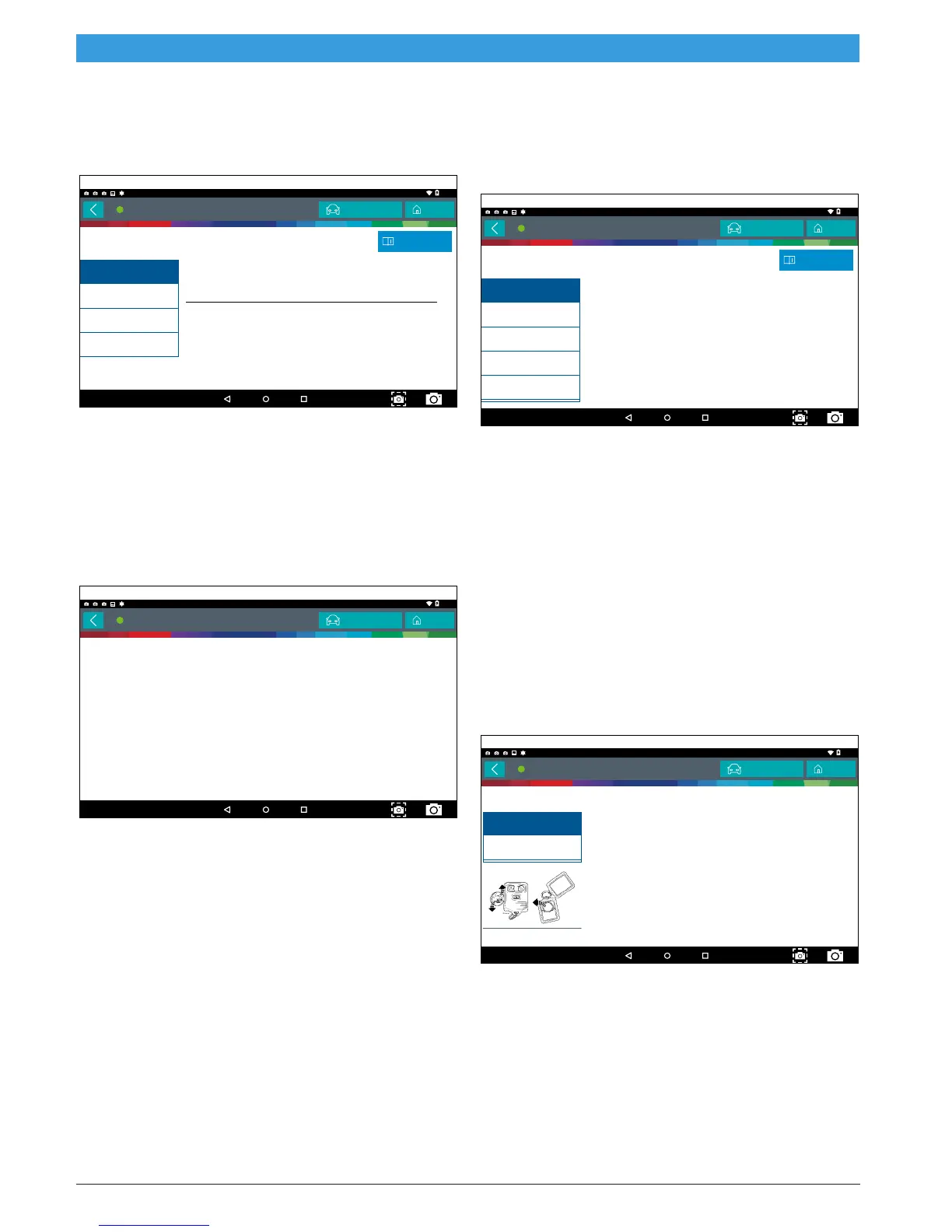

Location
Used to find where specific components are located.
1. Select Location Info from the Diagnostic Information
screen.
Location
Fuse Box Location
ECU Location
Component Location
DLC Location
View User Manual
Instrument panel fuse boxes are on the right and left side of the
instrument panel - there are two boxes. Underhood fuse box is located on
the left side of engine near the battery.
12:35
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03198
2. Scroll through the list and select the desired compo-
nent.
Brake Bleed Procedure (ABS)
Provides the procedure on how to bleed the brakes after
replacing brake calipers or opening a brake line to atmo-
sphere.
1. Select Brake Bleed Procedure from the Diagnostic
Information screen.
ABS Bleed Procedures
Brake Bleed Sequence: RR, LR, RF, LF
GRAVITY BLEED
0) Refill the brake master cylinder reservoir as necessary.
0) Warning: brake fluid contains polyglycol ethers and polyglycols. Avoid contact with eyes. Wash hands
thoroughly after handling. If brake fluid contacts eyes, flush eyes with running water for 15 minutes.
0) Fill the brake master cylinder reservoir with brake fluid.
0) Get medical attention if irritation persists. If taken internally, drink water and induce vomiting. Get medical
12:36
Connected to 2003 GMC Yukon XL 1500 SLT 5.3L | PCM
Change Vehicle
Home
ss03199
2. It may be necessary to change controllers at the
Screen, then re-enter diagnostic information for this
selection to become available (ABS, ABS/VSES).
NOTE: The sequence may be contained within the previous brake
bleed procedure section if it is not separately listed on the Diag-
nostic Information screen.
Tune Up Specifications
Provides specifications for specific components when a
tune up is performed.
1. Select Tune Up Specs from the Diagnostic Informa-
tion screen.
Tune Up Specs
Injector
Generator
Fuel Pressure
Spark Plug
Compression
Connected to 2004 Ford F-150 XL 5.4L | ABS (4WABS)
View User Manual
Specification: 11:0 to 14.0 Ohms
12:38
Change Vehicle
Home
ss03200
2. Some of the tune up specifications contained in this
section include the following:
• Starter
• Generator
• Regulator
• Spark plug
• Idle speed
• Fuel pressure
• Compression
• Firing order
Key Programming
Displays instructions for the selected vehicle for pro-
gramming a key.
1. Select Key Programming from the Diagnostic Informa-
tion screen.
Key Programming
Connected to 2004 Ford F-150 XL 5.4L | ABS (4WABS)
See Image
12:38
Battery Replacement
Immobilizer
Change Vehicle
Home
ss03201
2. Follow the prompts on the screen to program a key
and or replace battery in key.
