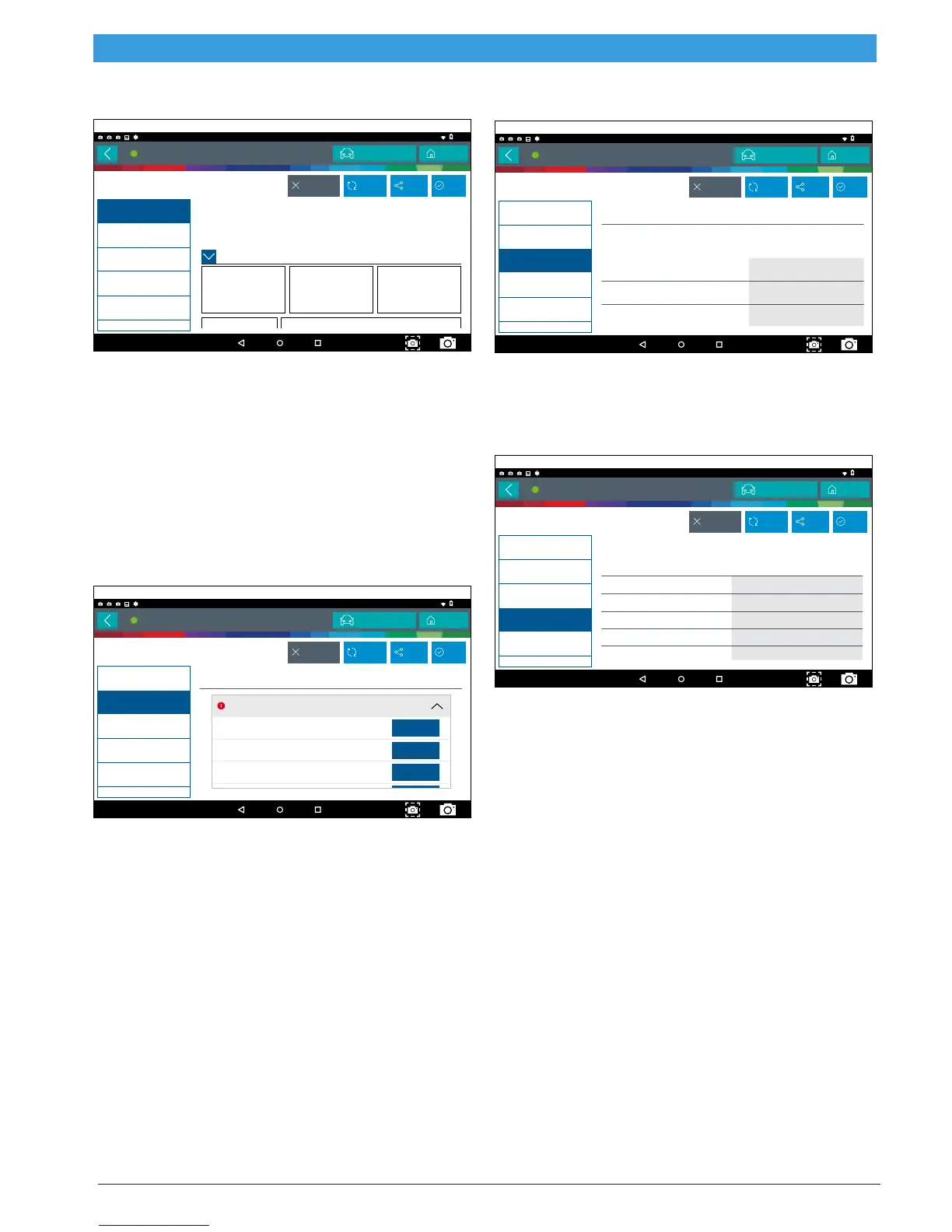

Summary Report
12:44
Summary
108 20 19
DTCs Found
Oxygen Sensor Tests
Non Continuously Monitored Tests (Mode 6)
Data Items Freeze Frame Data (Mode
2)
VIN:1FTPW14V28FC54321
CALIBRATION ID(S):BOSCHA1037366956, 4EF7033C
CONTROLLER:ENGINE
Automated System Test
RefreshClear DTCs Share Save
Connected to 2007 Jeep Wrangler Unlimited X 3.8L
Change Vehicle
Home
Summary
DTCs
Mode 1
Data Stream Snapshot
Freeze Frame
Mode 5
Add Image(s) to Report
ss03209
AST summary reports items found on the vehicle, such
as:
• Controllers found on vehicle.
• DTCs.
• Data Stream Snap Shot.
• Mode 1 (Readiness Monitor).
• Freeze frame.
• Mode 5 (O2 sensor).
• Mode 6 (Non-continuous monitor tests).
NOTE: Available selections will vary from vehicle to vehicle.
DTCs
12:45
Diagnostic Trouble Codes
Automated System Test
RefreshClear DTCs Share Save
Connected to 2007 Jeep Wrangler Unlimited X 3.8L
Change Vehicle
Home
Summary
DTCs
Mode 1
Data Stream Snapshot
Freeze Frame
Mode 5
P0078 - Active - Exhaust Valve Control
Circuit (Bank 1)
P0078 - Reading - Exhaust Valve
P0560 - Active - Battery System
Voltage
P0613 - Active - Internal Transmission
Processor
TRANSMISSION
9 DTC(s) found
Details
Details
Details
ss03210
DTCs recorded are displayed. When selecting DTCs,
diagnostic information is also available (same informa-
tion as the Read DTCs screen).
Data Stream Snapshot
12:45
Global OBDII
Description
Data Stream Snapshot
Boost Pressure Sensor A
Boost Pressure Sensor B
Commanded Boost Pressure A
Value
212.8 psi
194.2 psi
255.4 psi
Automated System Test
RefreshClear DTCs Share Save
Connected to 2007 Jeep Wrangler Unlimited X 3.8L
Change Vehicle
Home
Summary
DTCs
Mode 1
Data Stream Snapshot
Freeze Frame
Mode 5
ss03211
Data stream Snapshot, is a current view of the onboard
vehicle sensors.
Mode 1 (Readiness Monitor)
Automated System Test
12:45
Summary
Misfire Monitor
Monitor Description
Readiness (Mode 1)
A/C System Refrigerant Monitor
EGR System Monitor
Catalyst Monitor
Heated Catalyst Monitor
Status
DTCs
Mode 1
Data Stream Snapshot
Freeze Frame
Mode 5
Ready
Ready
Ready
Ready
Ready
Connected to 2007 Jeep Wrangler Unlimited X 3.8L
Change Vehicle
Home
RefreshClear DTCs Share Save
ss03212
Readiness Monitor Tests displays the results from the
continuous monitors available on the selected vehicle.
There are three states: ready, not ready, and not sup-
ported. If the monitor is not ready, a drive cycle must be
completed prior to running this test. For more informa-
tion regarding drive cycles, refer to diagnostic functions
Mode 1 readiness.
