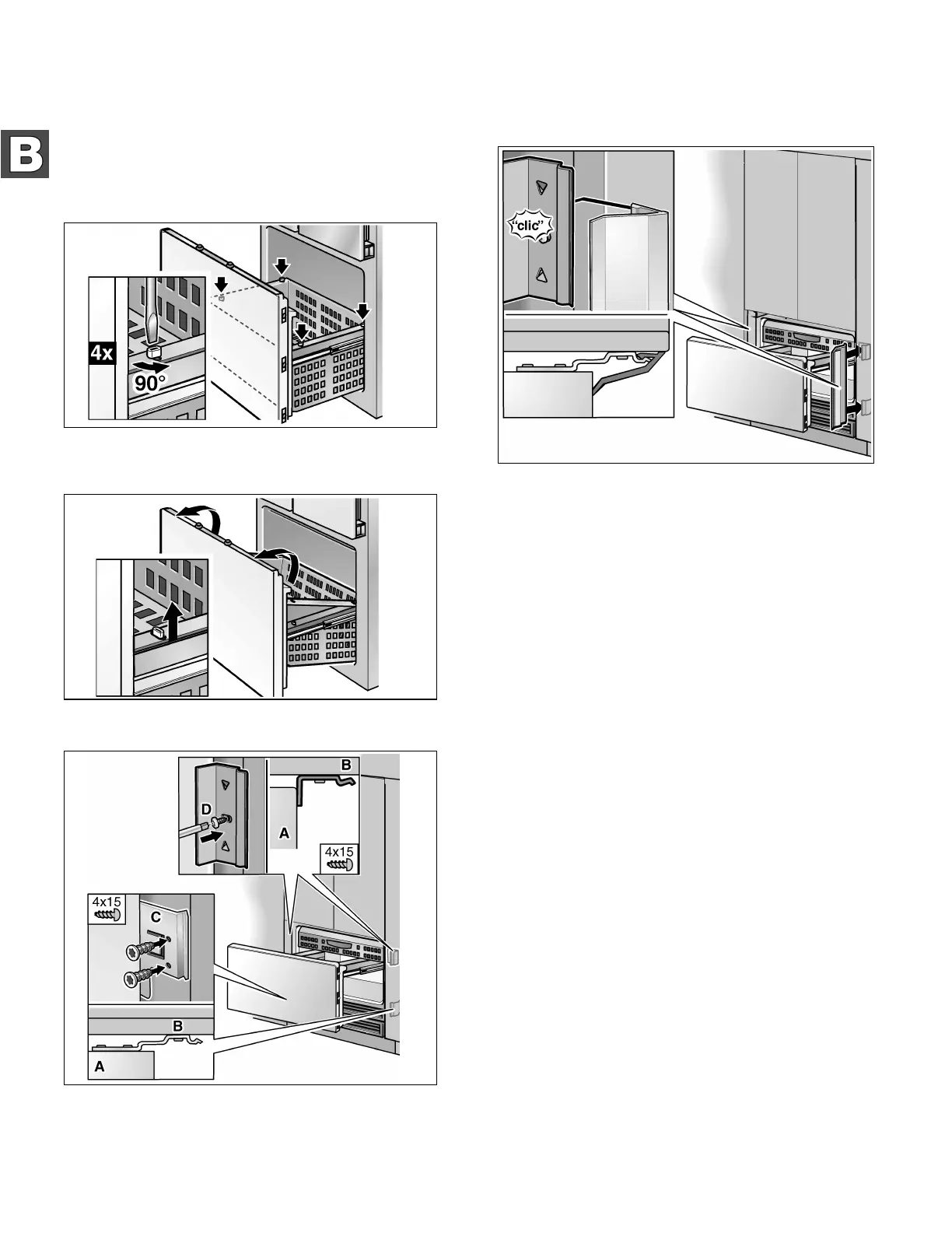

14. Attaching the individual appliance
to the side of the cavity
To attach the appliance at the side, first take the drawers out of
the freezer compartment.
The upper drawer must first be removed before the door
drawer can be taken out.
Screw the closures by 90° on the pullout using
a screwdriver.
To take out, lift the drawers slightly and take out.
A Appliance
B Cabinet part
Screw on the bars of the fastening sheets (C) with
the cabinet parts located next to them.
Screw on the angle (D) for fastening the cover ribs.
Attach the cover ribs to the fastening plates
and the angles.
Re-insert drawers:
To place in, lift the front of the drawers slightly and place
into the chest of drawers.
Lower the drawer and slide it backwards.
Screw the closures by 90° on the pullout using
a screwdriver.
