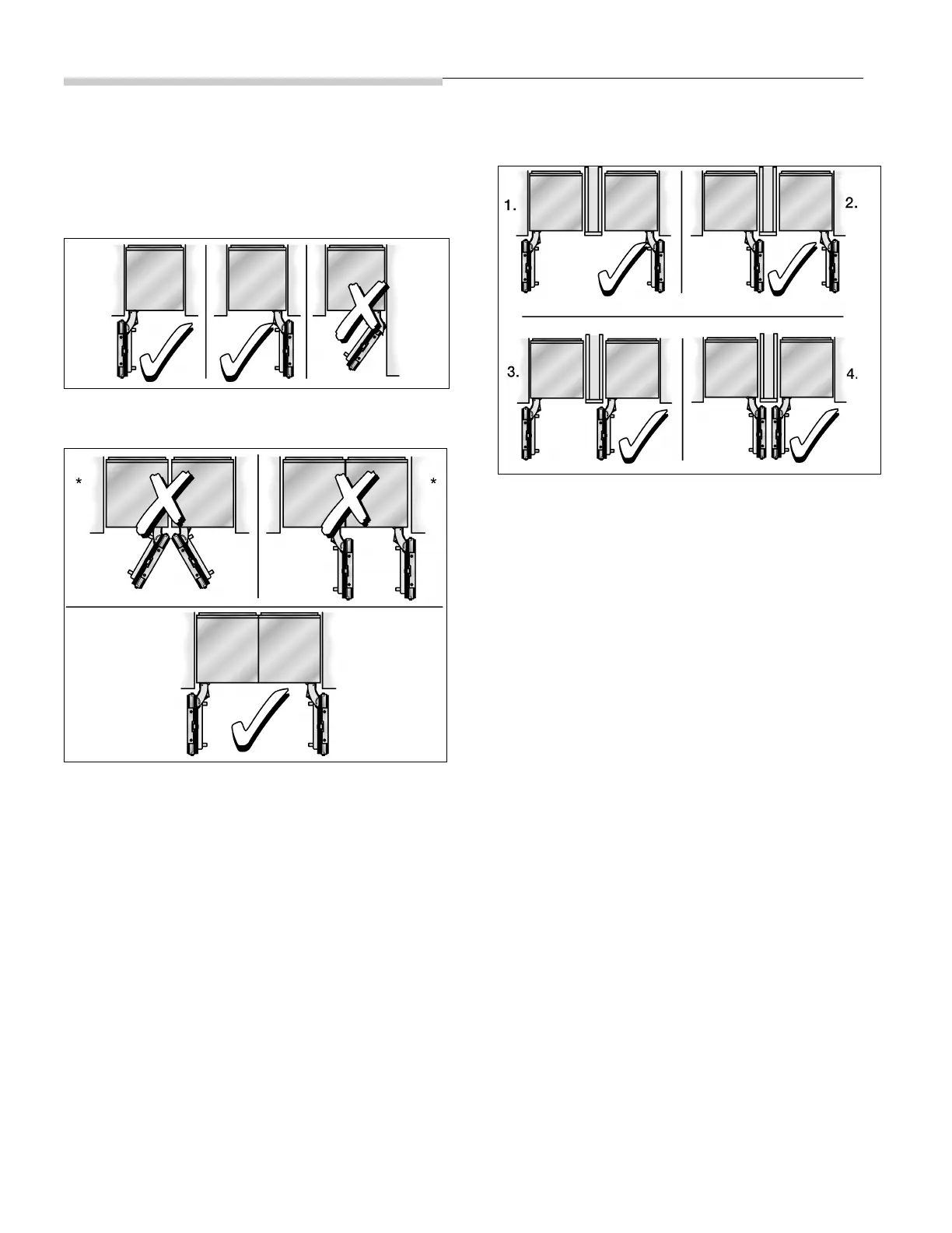

Installation options
There are many different installation options.
These are limited only by the design of the kitchen and the
function of the finger guard.
Individual unit
Side-by-Side
* Partition required!
When 2 appliances are installed Side-by-Side, the Basic
Combination Side-by-Side Sealing kit must be used to
ensure a stable connection.
See the section on “Optional accessories" on page 13.
Individual appliances with partition
– When dimensioning the partition for model 4, note the
thickness of the furniture fronts to prevent damage if the
doors are opened at the same time.
– Use the Extreme Combination Side-by-Side Heating kit
if the gap between the appliances is less
than 6" (160 mm).
See the section on “Optional accessories" on page 13.
– Minimum thickness of the partition
5
/
8
" (16 mm).
At the end of the kitchen units
If one side of the appliance is visible, a side panel must be
used.
The side panel must be connected firmly to the wall, the floor
and overhead furniture/fixtures before the appliance is
placed in the cavity.
The dimensions of the side panel are taken from the opposite
cavity wall. During installation ensure that the cavity is square
and the exact size.
