Notes:
– Attach the adjusting rail to the furniture door with at least
10 screws. One screw should be inserted under each
double threaded bolt.
– The adjusting rail features a variety of holes for the many
different design options of furniture doors. Always screw
into the best load-bearing material of the furniture door.

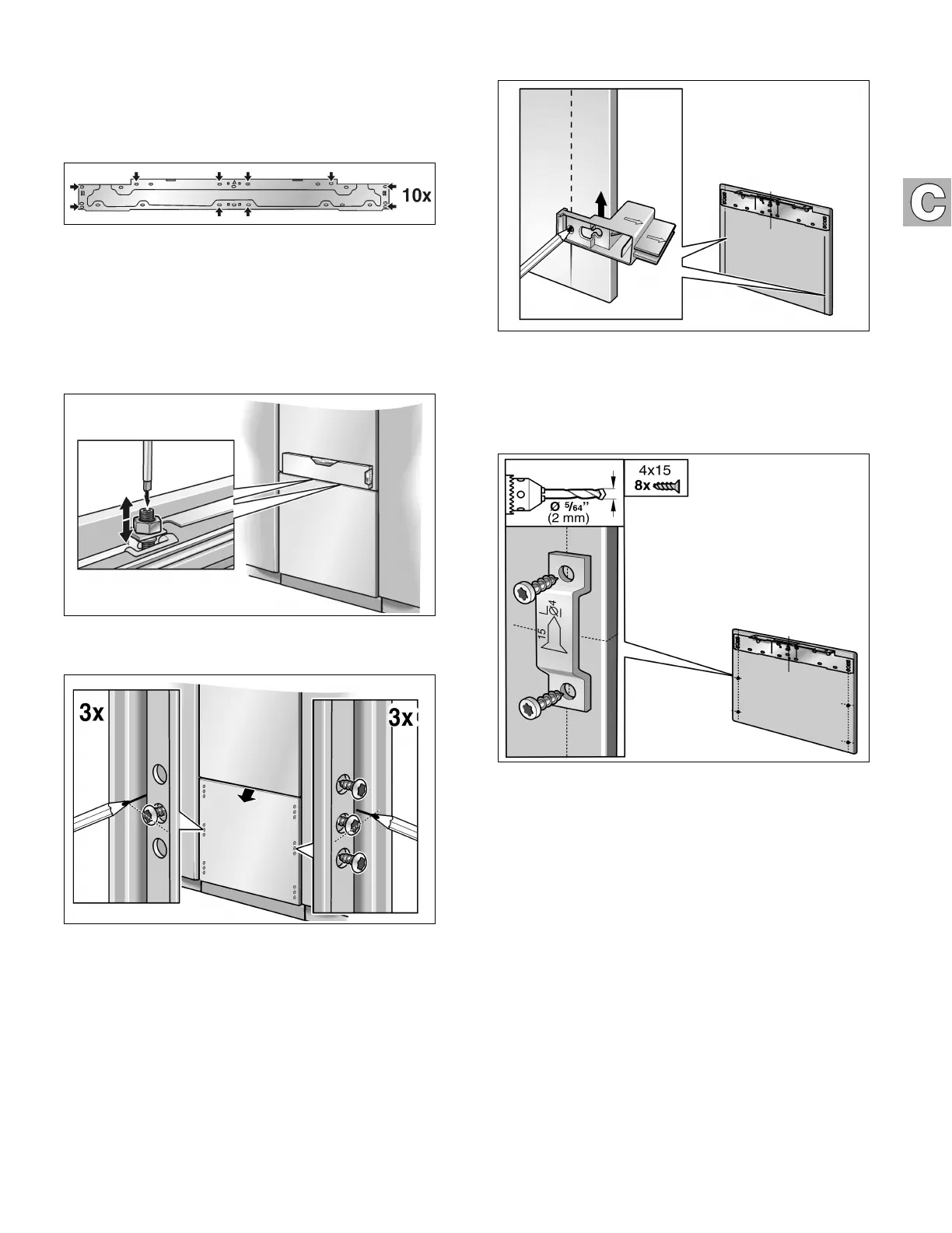

24. Attaching and aligning the furniture
door (freezer compartment)
Hang the furniture door on the double threaded bolt.
Align the furniture door with the double threaded bolts
(Torx screwdriver).
Transfer the middle drill holes along the outer edge of
the appliance door to the furniture front and mark.
Remove the furniture door.
Using the positioning aid, set both longitudinal sides of
the furniture door parallel.
Using a square, extend the drill hole marks which you
have just made to the vertical marks.
Mark and drill the holes.
Screw on the fixing plates (10x).
