User Manual Bosch Climate 5000 Series Wired Wall Thermostat | 7
Bosch Thermotechnology Corp. | 06.2019
Data subject to change

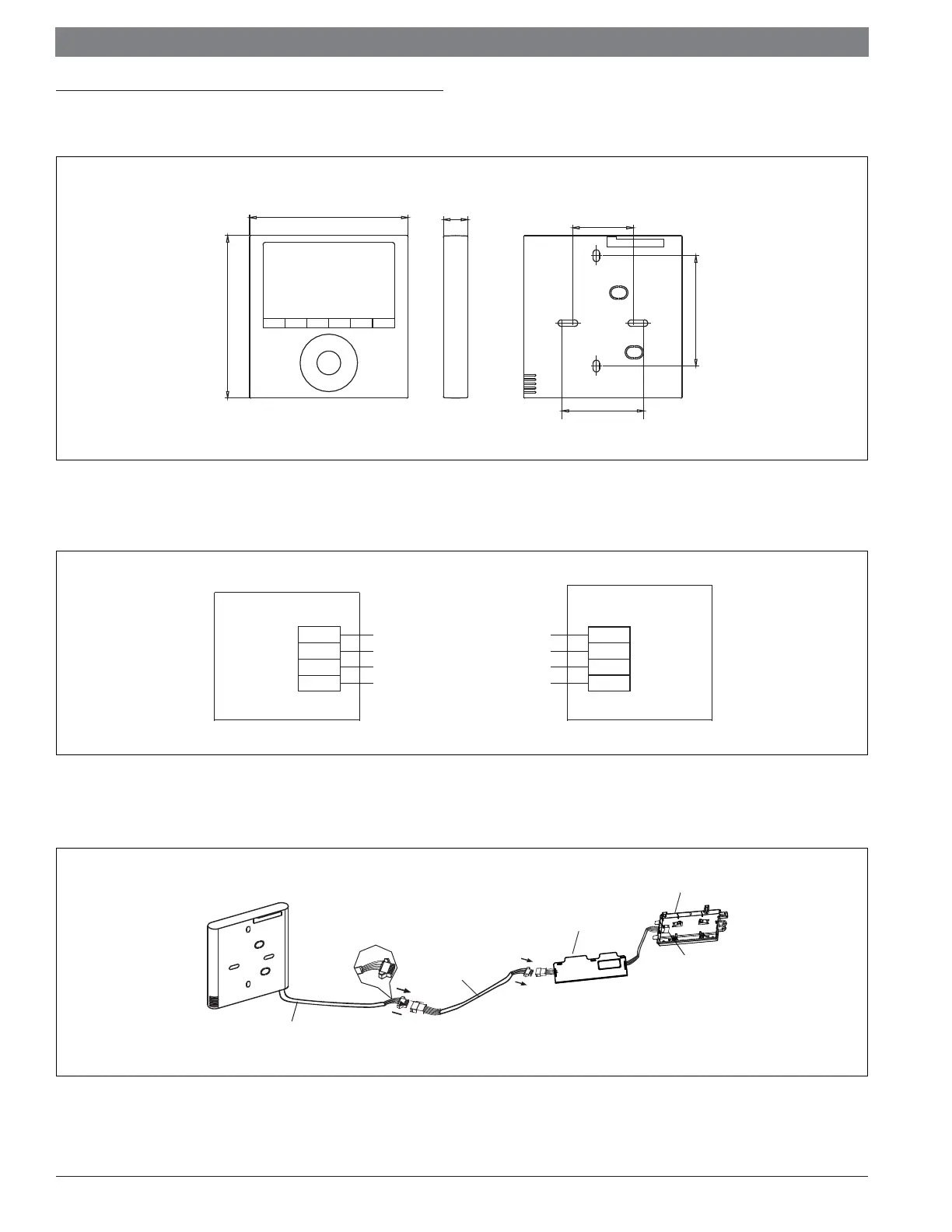

5 Installation
5.1 Dimensions
Figure 3
4.8in
(123mm)
4.7in (120mm)
0.7in
(18.5mm)
3.3in
(83.5mm)
1.8in
(46mm)
2.4in (62mm)
5.2 Wiring
Figure 4
red
black
yellow
brown
red
black
yellow
brown
Insert of the
mainboard CN40
Wire controller
Indoor unit mainboard
4-Core Shielded Cable
The length is decided by installation
-----------------------------------
-----------------------------------
-----------------------------------
-----------------------------------
For Wall Mounted Indoor Units
Install the Adapter Board and the Display Board on the Wall Mounted indoor unit.
Figure 5
Model: BMS-WT1-XXX (8733953127)
Adapter board
Display board
4-core shielding wire
The connection
cable
CN101
To Next Page
