Bosch BRC3600 - Product Overview; Product Features and Components

English – 7
Product description and specifications

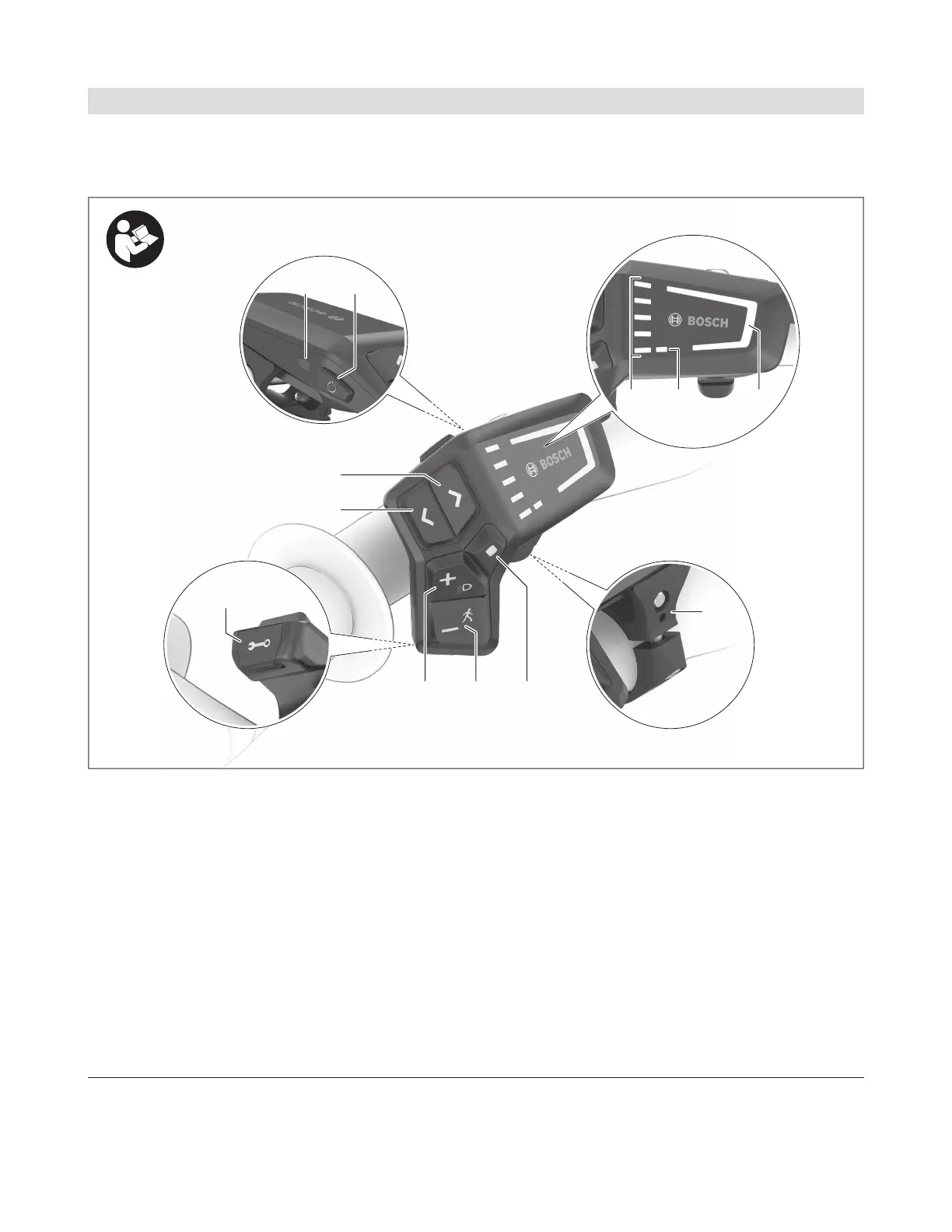

Product Features
(2)
(10)
(8)
(9)
(11)
(12)
(7)
(1)
(5)(4)(3)
(6)
All illustrations of bike parts except for the drive unit,
on-board computer including operating unit, speed
sensor and the corresponding holders are schematic
and may differ on your eBike.
(1)
Ambient light sensor
(2)
On/off button
(3)
Battery charge indicator of the eBike battery
(4)
ABS LED (optional)
(5)
Assistance level LED
(6)
Holder
(7)
Select button
(8) Button for decreasing assistance –/
push assistance
(9) Button for increasing assistance +/
bicycle lights
(10)
Diagnostics connection (for servicing pur-
poses only)
(11)
Button to reduce brightness/
go back
(12)
Button to increase brightness/
go forward
